Masport F43/F28 Freestanding Gas Heater
MAINTENANCE
REMOVING VALVE
If your valve requires maintenance or replacement, follow
these instructions:
NOTE: Always shut off the gas supply before
removing the valve.

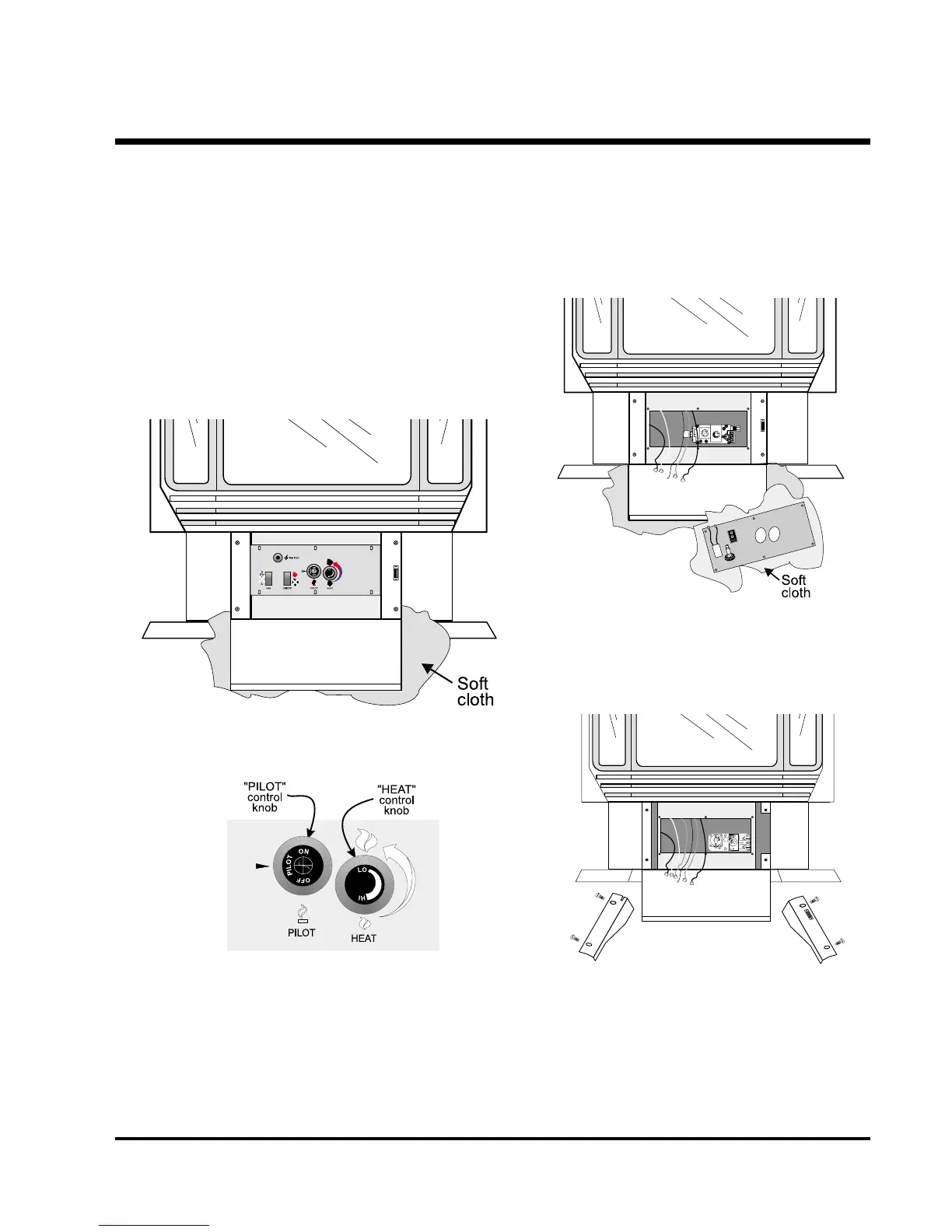

1) Open front pedestal door and unhook chain. You may
want to put a soft cloth on the base of the unit so that when
the pedestal door is open it doesn't scratch the paint. See
diagram below.
2) Undo the six screws holding the control panel in place.
3) Disconnect all wires from the back of the panel and then
remove panel. You should lay the panel on a soft cloth so
it doesn't get marked up. See diagram below.
4) Remove the two outside frame pieces by removing two
screws per side. See diagram below.
