Digital and analog properties:
• 10239 programmable locomotive addresses
• 4, 28, and 128 speed steps
• Programmable driving curve
• Adjustable start, mid, and max. speed
• Adjustable acceleration and deceleration
• Adjustable motor frequency
• Load control for digital and analog mode (pat.pend.)
• 16 functions (selectable) NMRA compatible
• Switching speed and acceleration/deceleration selectable with F-key
• Parallel and serial control for all light outputs and function outputs, including triggering of parallel updated
sound boards (LGB
®
)
• Comfortable function mapping (parallel and serial) with direction assignment
• Programmable flashing light and short term functions
• Dimmable light and function outputs, usable in analog mode
• Many settings may be used in analog mode
• Update feature
• Comprehensive reset functions for all Configuration Variables (Cvs)
• Bus connector for SUSI interface and LGB-control
2.1.Installation and Hook-Up
Installation of the eMOTION XLS Sound Decoder is very basic and straightforward. The eMOTION XLS Sound
Decoder comes with a basic set of cables and screws required.
Please note the terminal assignments shown in the following illustrations and pay attention to the factory preset
function outlet assignments of F1 to F6. These outlets need to be set according individually to your personal
needs.
2.1.1. Connectors on the Upper Surface
The eMotion XLS Sound Decoder features six additional connectors on the upper side (see illustration 2).
CLK1 is the connector for an external pulse generator, CLK2 is the connector for a second pulse generator, e.g.
for Mallet locomotives. These connectors are custom made for the connection with our pulse generator unit
#8242030. Alternatively a reed contact may be utilized as pulse generator (see illustration 2). The SPKR
connector connects a loudspeaker to the eMotion XLS Sound Decoder, and the POTI connector connects an
external potentiometer (4.7K Ohms) to the decoder to facilitate manual volume control. A potentiometer board
is available with the item # 8242010.
eMOTION XLS Sound Decoder 5

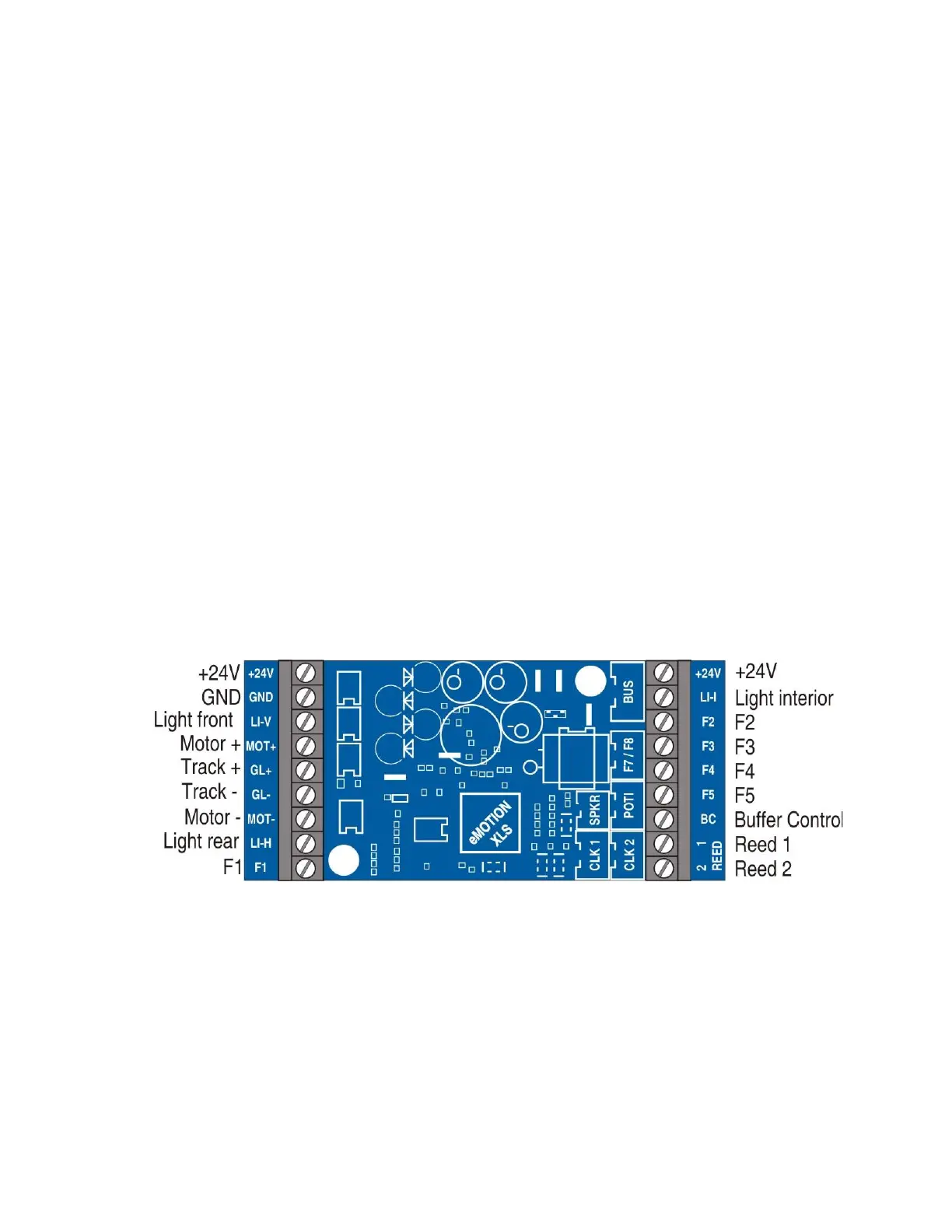

Illustration 1: Contact Assignment with Pulse Generator, Loudspeaker, ext. Poti, F7/F8 and
Bus connector (upper side)
