2.1.2.Setup with a LGB
®
gear box:
All current LGB
®
gear boxes feature 4 contact pins on the upper side. To utilize these gear boxes for digital
operation the pins must be connected to the eMOTION XLS Sound Decoder according to the schematic below.
Very old LGB gear boxes have 3 contact pins only. These gear boxes need to be changed for digital operation.
One pin is connected to the motor and the track. This must be disconnected as the motor and the track must be
isolated for digital operation.
2.2.Manufacturer’s settings of the eMOTION XLS Sound Decoder:
These are the most important factory settings of the eMOTION XLS Sound Decoder:
• Loco address 3
• 14 speed steps (compatible to MTS I, II and III)
• Light outputs deliver full voltage (for 19V/24V bulbs)
• Start locomotive engine/ engine shut down (Diesel/Electric) F5
• Cylinder side noises on/off F5 (Steam)
• Sound (amplifier) on/off F6
• Time delays on/off F7
• Switching speed on/off (half speed) F8
• Function outputs F1 to F8 conform with function keys F1 to F8
2.3.Installation
Please make sure that no electronic component is damaged on installation. Mishandling may subsequently
render a repair.
eMOTION XLS Sound Decoder 7

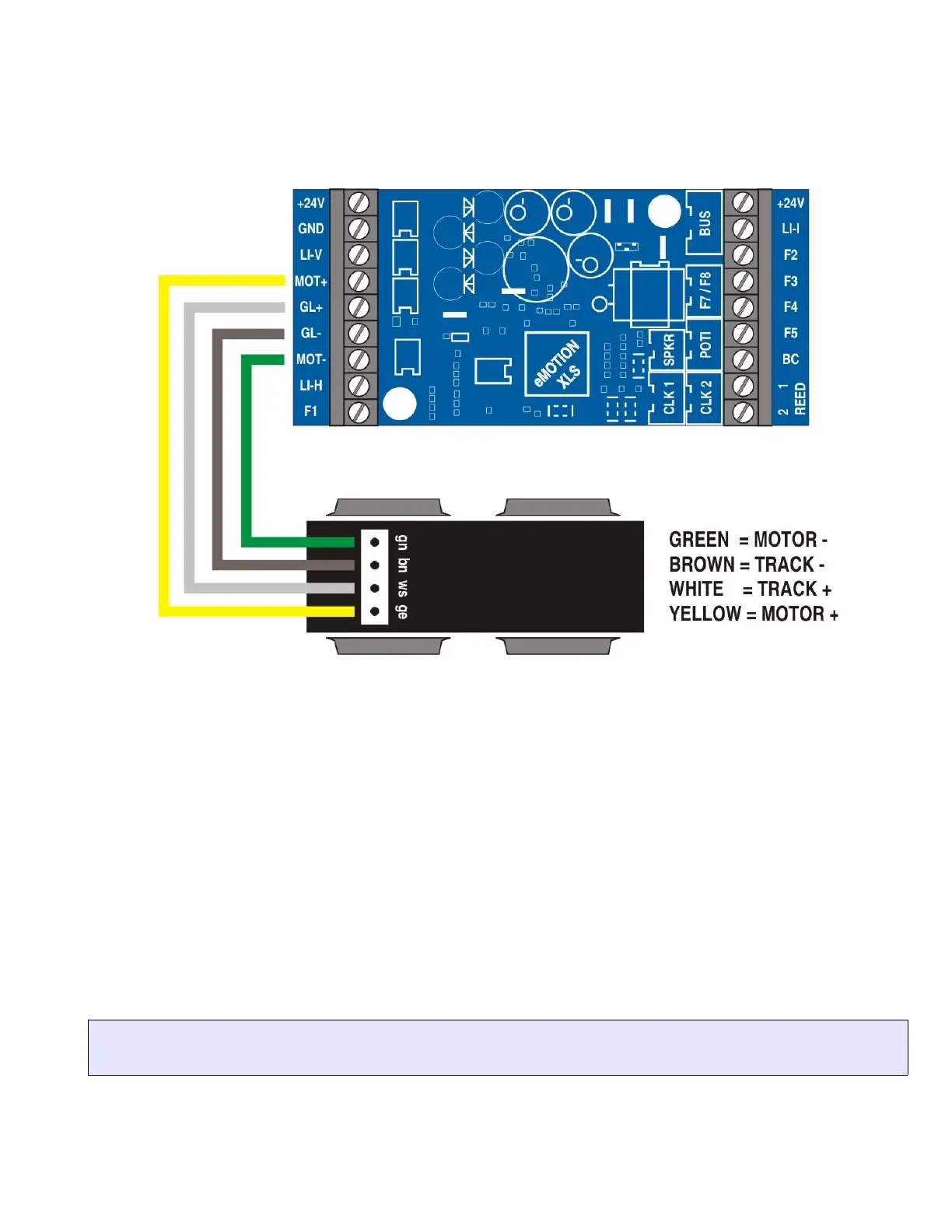

Illustration 4: Connection eMOTION XLS Sound Decoder to a LGB Gear Box
