7.2 Backlight function: backlight will be enabled when you press
Backlight button. Press Backlight button again to turn off the
backlight. The backlight will turn off automatically after it is on
for 60 seconds.
7.3 Battery power detection function: The meter has a battery
power detection function. Battery power includes four levels and
displays on the LCD screen. When
displays for battery,
please replace battery. This meter uses 8 × 1.5V SIZEAA battery.
Batteries with the same model should be used for battery
replacement. Please remember that you can’t use the meter until
the rear cover is tightened.

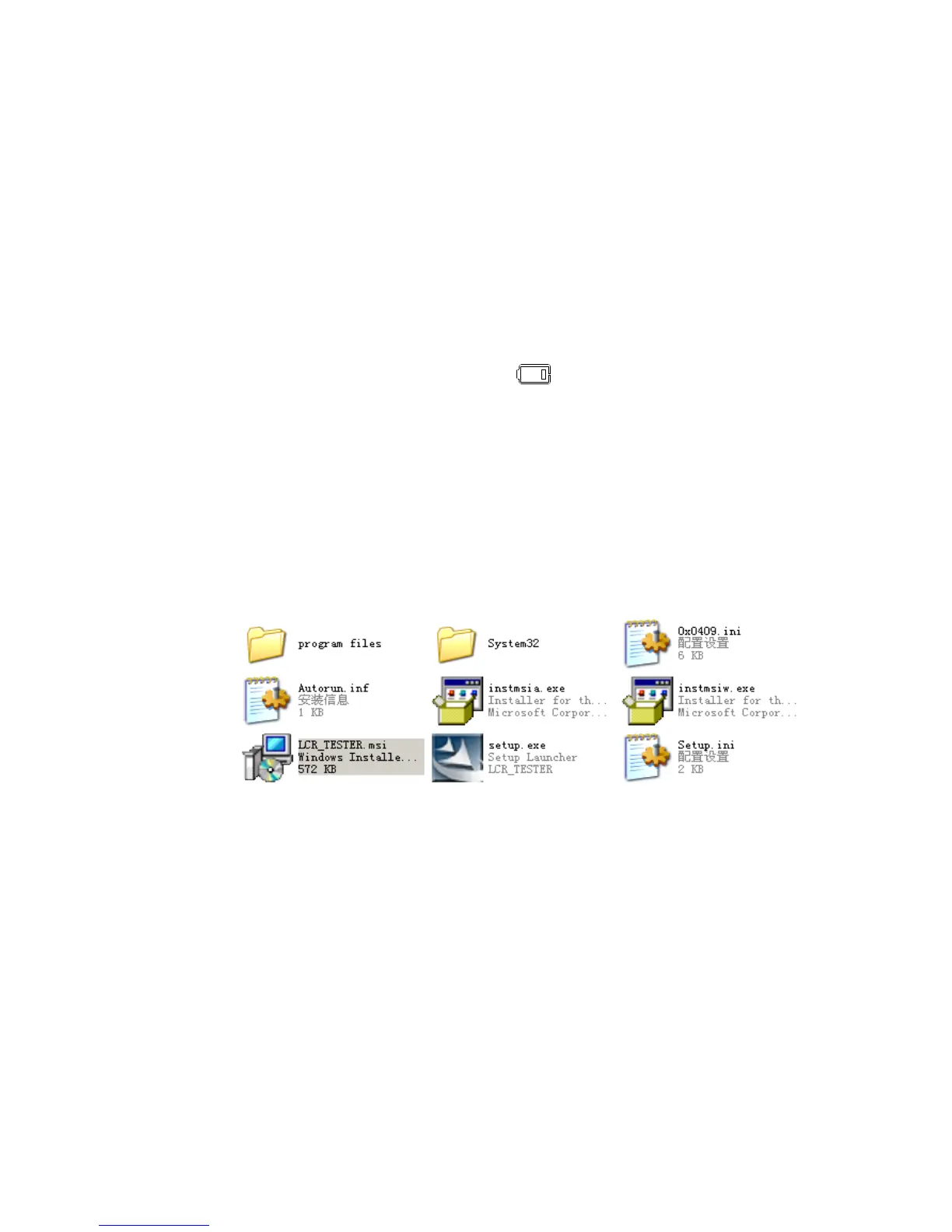

8 Upper computer software installation:
Open CD
Click LCR_TERSTER.MSI to enter the following screen based
on the diagram
