Master Chef 085-3134-2 - Page 9

Ensure this is secured properly and test it with soapy water to avoid any gas leakage.

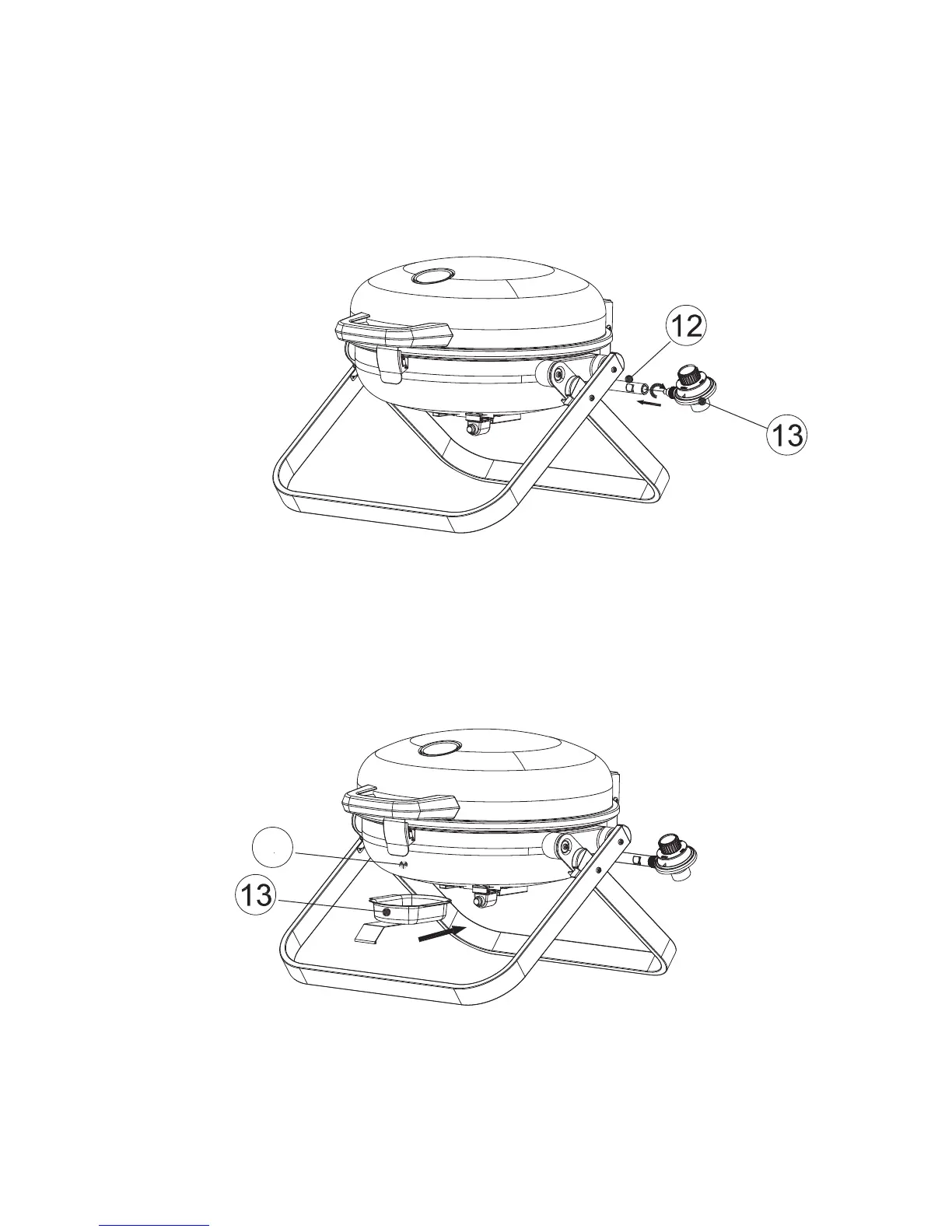

a) Place the Oil Cup (14) onto the oil tray suppor t under the Body Assembly (10).
Step 6
b)
Step 7
• •
10
ATTACHING THE MAIN VALVE / REGULATOR
a) With the Main Valve / Regulator (13), screw onto the Main Burner Assembly (12) in a clockwise
direction as shown.
