Assembly Instructions

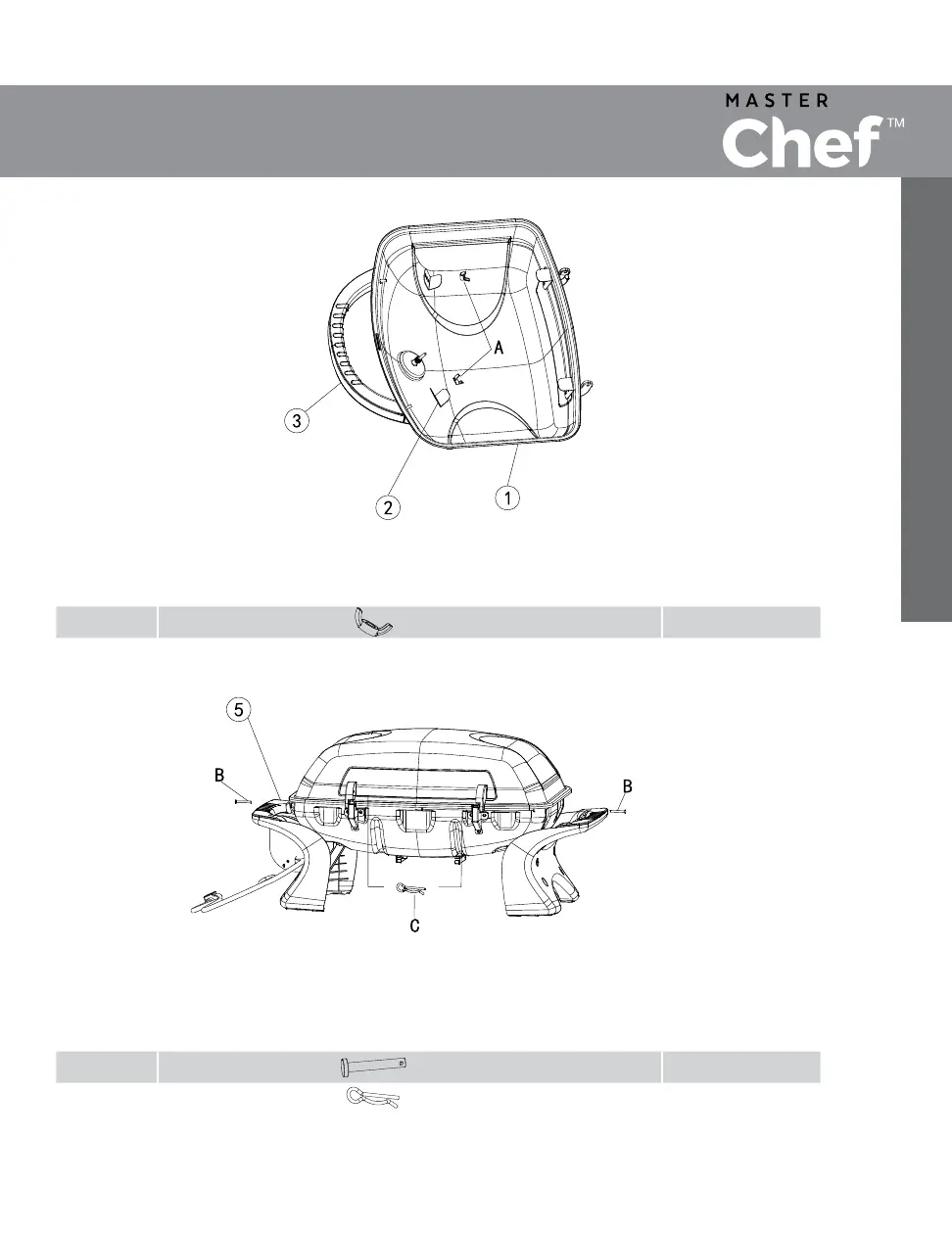

Step 1
Step 2
Secure the Hood Handle (3) onto the Hood with two Spacer (2) and two Wing nut (A) as shown.
Ensure the Wingnuts (A) are tightened.
Fit the prepared hood in step 1 carefully onto the firebox (5) .
Lock the hood into place by fitting a hinge pin (B) through the firebox flanges and the hood hinge. Fix the hinge pin by
inserting an “R” clip (C) through the end of each pin.
A
2 Pcs
B 2 Pcs
C 2 Pcs
