4
PREPARATION

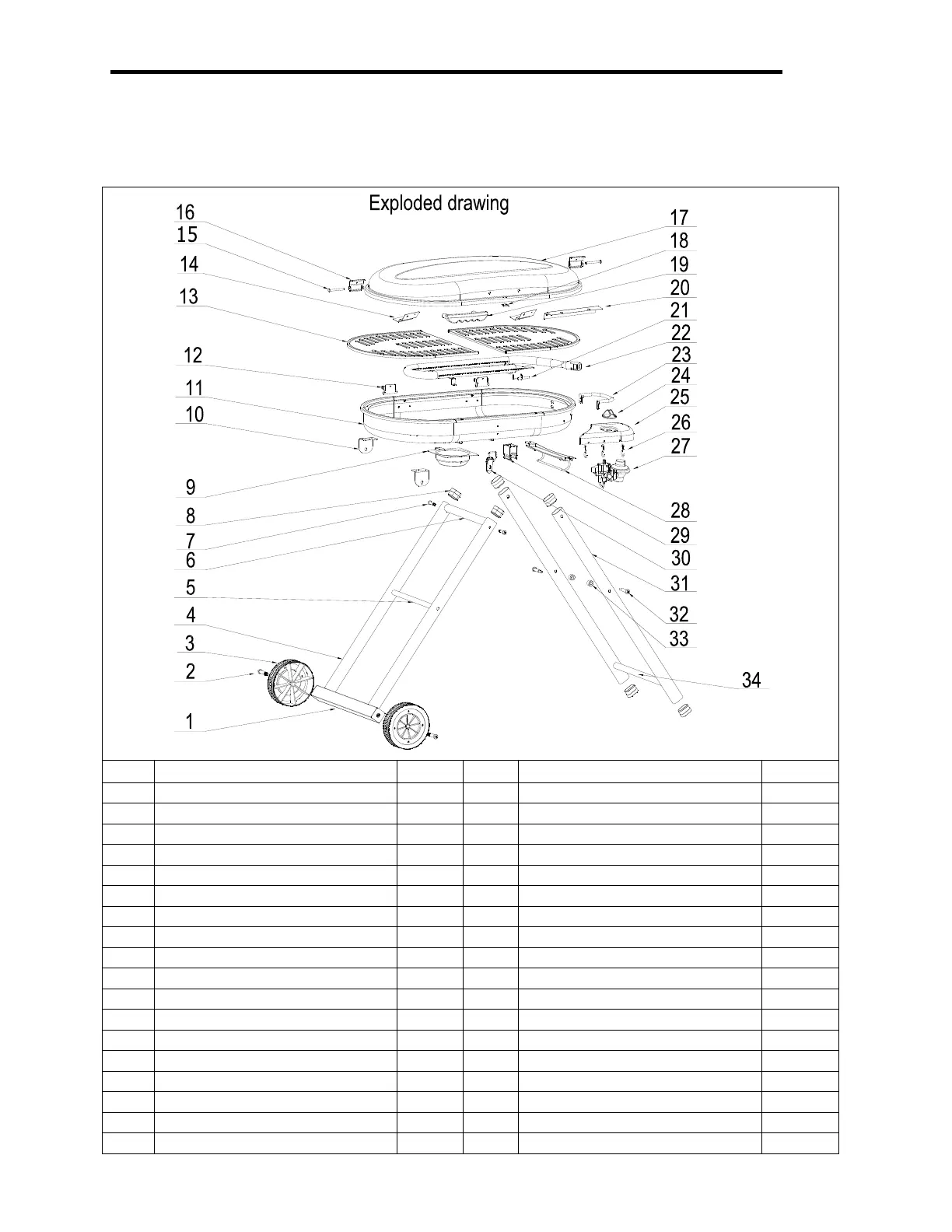

Before beginning assembly of product, make sure all parts are present. Compare parts with
package contents list and diagram on page 5. If any part is missing or damaged, do not
attempt to assemble the product. Please contact customer service for replacement parts at
1-855-803-9313.
No. PART No. QTY No. PART No. QTY
1 Wheel Tube Assembly 1 19 Lid Handle 1
2 Wheel Bolt 2 20 Cooking Grid Support Panel 2 1
3 Wheel 2 21 Electrode 1
4 Short Leg Assembly 2 22 Bruner Assembly 1
5 Mid Tube Assembly 1 23 Firebowl Handle 1
6
Upper Tube Assembly
1 24 Knob 1
7 Short Leg Bolt 2 25 Control Panel Assembly 1
8
Short Leg Spacer
6 26 Tool Hook 3
9 Grease Cup 1 27 Valve and Regulator Assembly 1
10 Leg Left Support 2 28 Leg Right Support Assembly 1
11 Firebowl 1 29 Safety Latch 1
12 Hing Bracket 2 30 Lid Clamp Assembly 1
13 Porcelain Coated Steel Grill 2 31 Long Leg Assembly 2
14 Cooking Grid Support Panel 1 2 32 Long Leg Bolt 2
15 Hing Bolt 2 33 Leg Spacer 2
16 Hinge 2 34
Lower Tube Assembly
1
17 Hood 1 # Hardware Pack 1
18 Clip for Lid Clamp 1
To Next Page
