Master Chef E500 User Manual

1

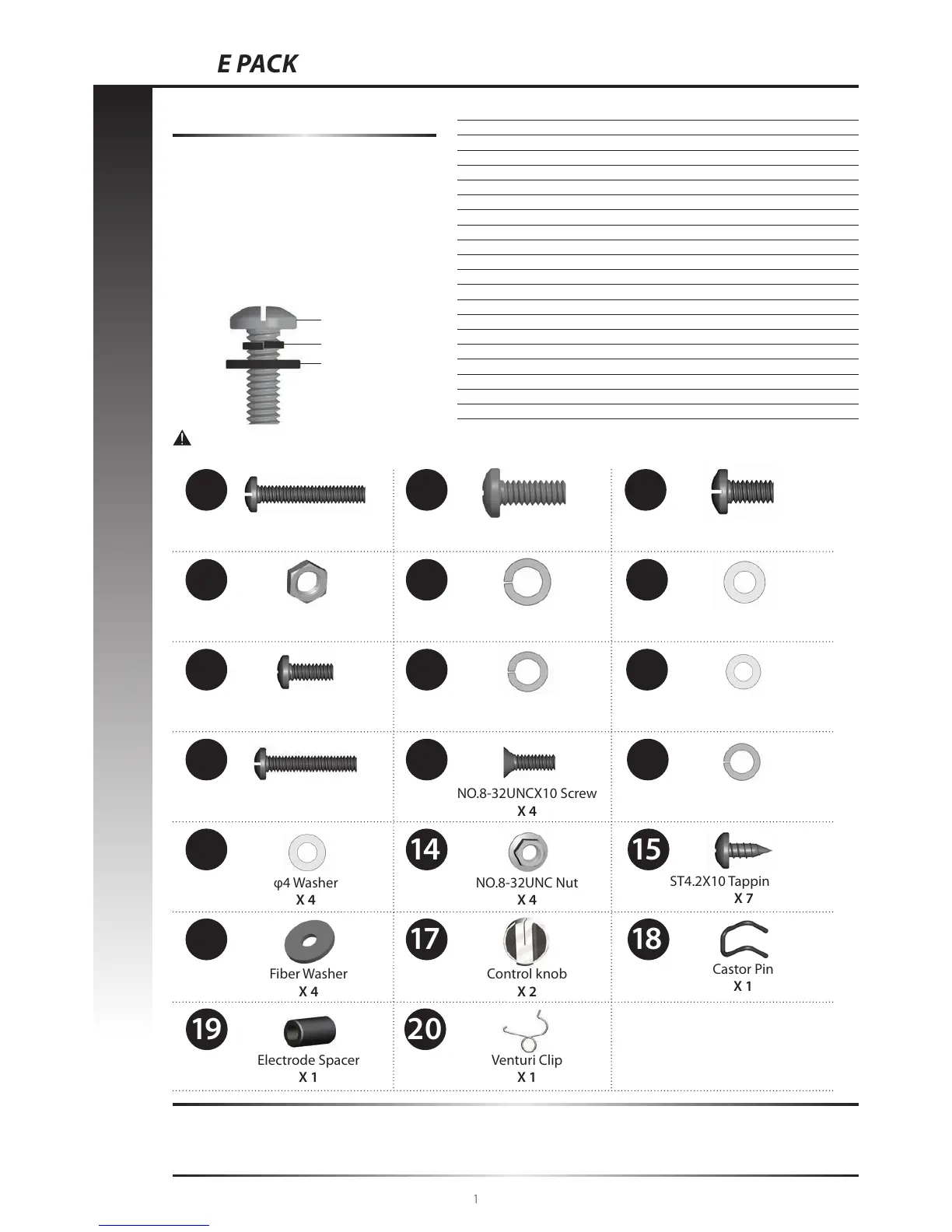

HARDWARE PACK
KEY # DESCRIPTION PART NUMBER QUANTITY
1 ¼”-20UNCX38 Screw 20120-13038-250 8
2 ¼”-20UNCX18 Screw 20120-13018-250 8
3 ¼”-20UNCX13 Screw 20120-13013-250 6
4 ¼” Nut 30220-13000-250 4
5 φ7 Lock Washer 41400-07000-250 18
6 φ7 Washer 40300-07000-250 22
7 NO.10-24UNCX10 Screw 20124-10010-250 10
8 φ5 Lock Washer 41400-05000-250 4
9 φ5 Washer 40300-05000-250 7
10 NO.10-24UNCX35 Screw 20124-10035-250 1
11 NO.8-32UNCX10 Screw 20132-08010-250 4
12 φ4 Lock Washer 41400-04000-250 4
13 φ4 Washer 40300-04000-250 4
14 NO.8-32UNC Nut 30232-08000-250 4
15 ST4.2X10 Tapping Screw 22500-42010-137 7
16 Fiber washer G501-0054-9100 4
17 Control knob G453-0049-9000 2
18 Castor Pin G350-0026-9000 1
19 Electrode set spacer, Side burner G453-0065-9000 1
20 Venturi clip, Side burner G405-0019-9200 1
TOOLS NEEDED FOR ASSEMBLY
• #2 Phillips screwdriver (long and short)
• ¼” Slotted screwdriver (long and short)
• Adjustable wrench
• Pliers
For correct hardware assembly, always position
the lock washer between the screw and the at
washer.
Lock Washer
Flat Washer
Screw
Control knob
X 2
Venturi Clip
X 1
Fiber Washer
X 4
Electrode Spacer
X 1
ST4.2X10 Tapping Screw
X 7
φ5 Lock Washer
X 4
φ5 Washer
X 7
NO.10-24UNCx10 Screw
X 10
NO.10-24UNCx35 Screw
X 1
Caution:
Sheet metal can cause injury. Wear gloves when installing the grill.
¼”-20UNCx18 Screw
X 8
φ7 Washer
X 22
φ7 Lock Washer
X 18
φ4 Washer
X 4
φ4 Lock Washer
X 4
NO.8-32UNC Nut
X 4
Castor Pin
X 1
1
2
3
4 5 6
9
12
15
18
7
10
13
16
8
11
14
17
19 20
¼”-20UNCx38 Screw
X 8
¼” Nut
X 4
NO.8-32UNCX10 Screw
X 4
¼”-20UNCx13 Screw
X 6
BEFORE ASSEMBLING THIS BARBECUE, READ THE INSTRUCTIONS CAREFULLY.
Assemble the barbecue on a flat, clean surface. Grill is heavy. Two people are recommended
to complete assembly.
