Master cook SRGG806 - Leg and Support Assembly; Attaching Heat Plate Supports and Legs

7

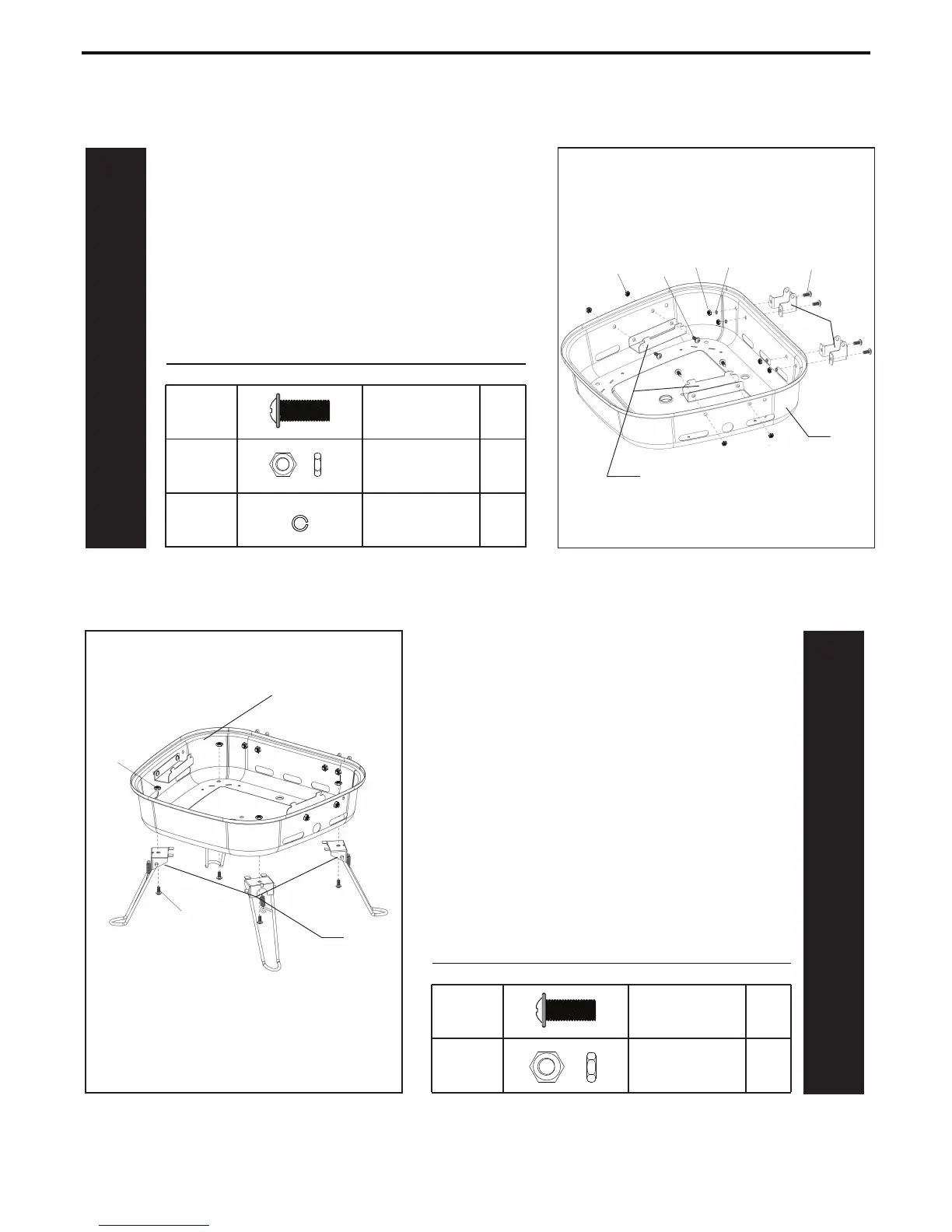

Assembly Instructions
3
Attach heat plate supports(K) to bottom bowl(H) with 4pcs
M5x12 screws (AA) and 4pcs M5 nuts(JJ).
Attach bottom hinges(I) to bottom bowl(H) with 4pcs M5x12
screws(AA), 4pcs Ø5.3 steel small lock washers(FF) and
4pcs M5 nuts(JJ).
4
Attach leg(N) to bottom bowl(H) with 4pcs M5x12
screws(AA) and 4pcs M5 nuts(JJ).
Hardware Used
AA
JJ
FF
Screw
M5 Nut
Lock Washer
8pcs
8pcs
4pcs
Hardware Used
AA
JJ
Screw
M5 Nut
4pcs
4pcs
AA
N
JJ
H
JJ AA
JJ
FF AA
I
K
H
