Master Forge 240-0028 - Overview

Page 10

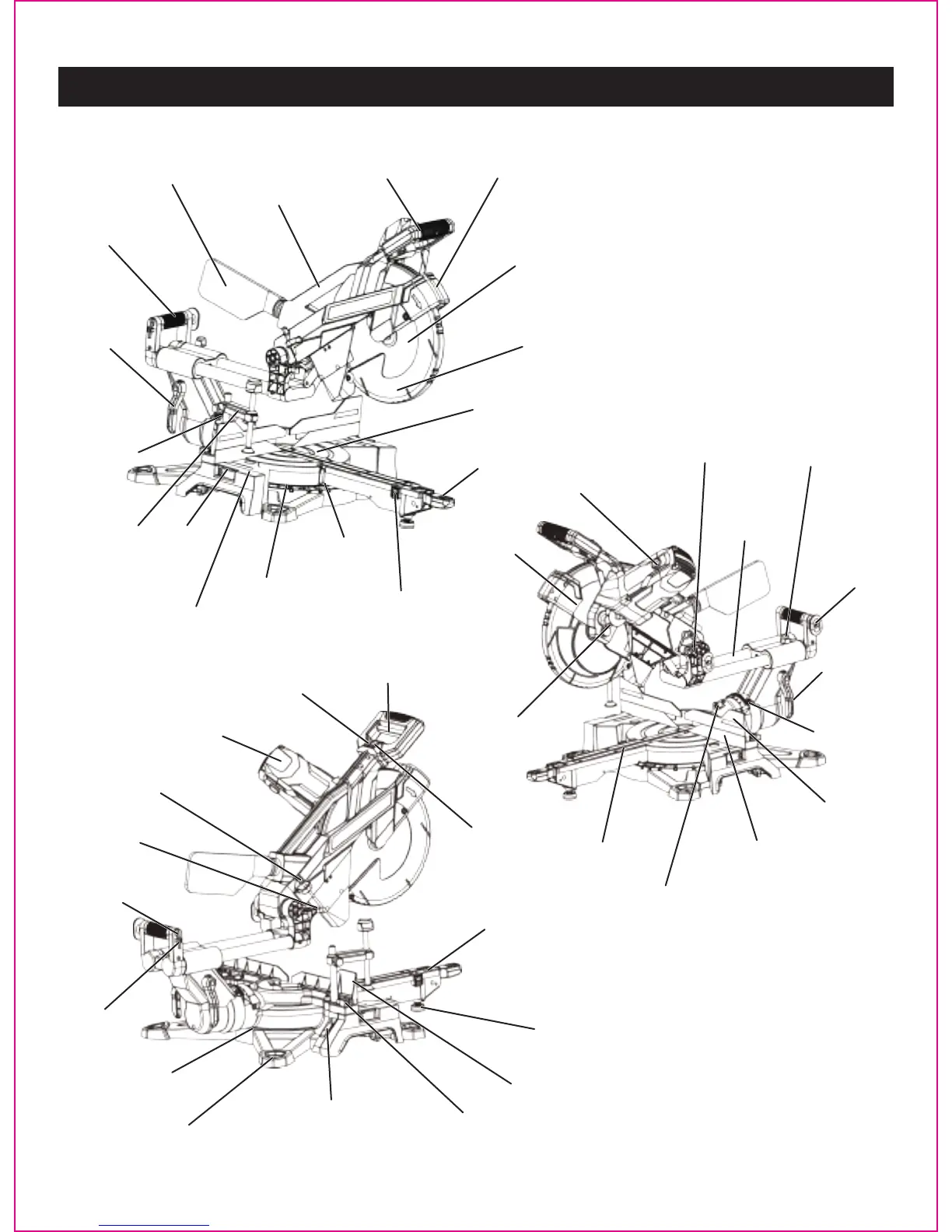

OVERVIEW
Rear carrying
handle
Front carrying
handle
Slide bar
Bevel lock
lever
Bevel scale
Work piece
clamp
Table extension
Cut stop
Mounting hole
Miter scale
Leveling foot
Miter latch
button
Saw blade
Miter lock
lever
Miter latch
override button
Bevel lock
lever
Power cord
storage
Carbon
brush cap
Head lock
knob
Upper blade
guard
Arbor lock
button
Miter scale
pointer
Left sliding fence
“D” Handle
Bevel scale
pointer
Laser guide &
LED worklight
module
Lower blade
guard
Working table
Right sliding
fence
Miter fence
Bevel
detent pin
Table insert
Blade wrench
Blade wrench
storage
Slide lock
knob
Dust bag
Motor
LED worklight
switch
Laser guide
switch
Depth stop
adjustable knob
Depth stop
Sliding miter
fence lock knob
Table extension
lock knob
Base
Switch trigger
