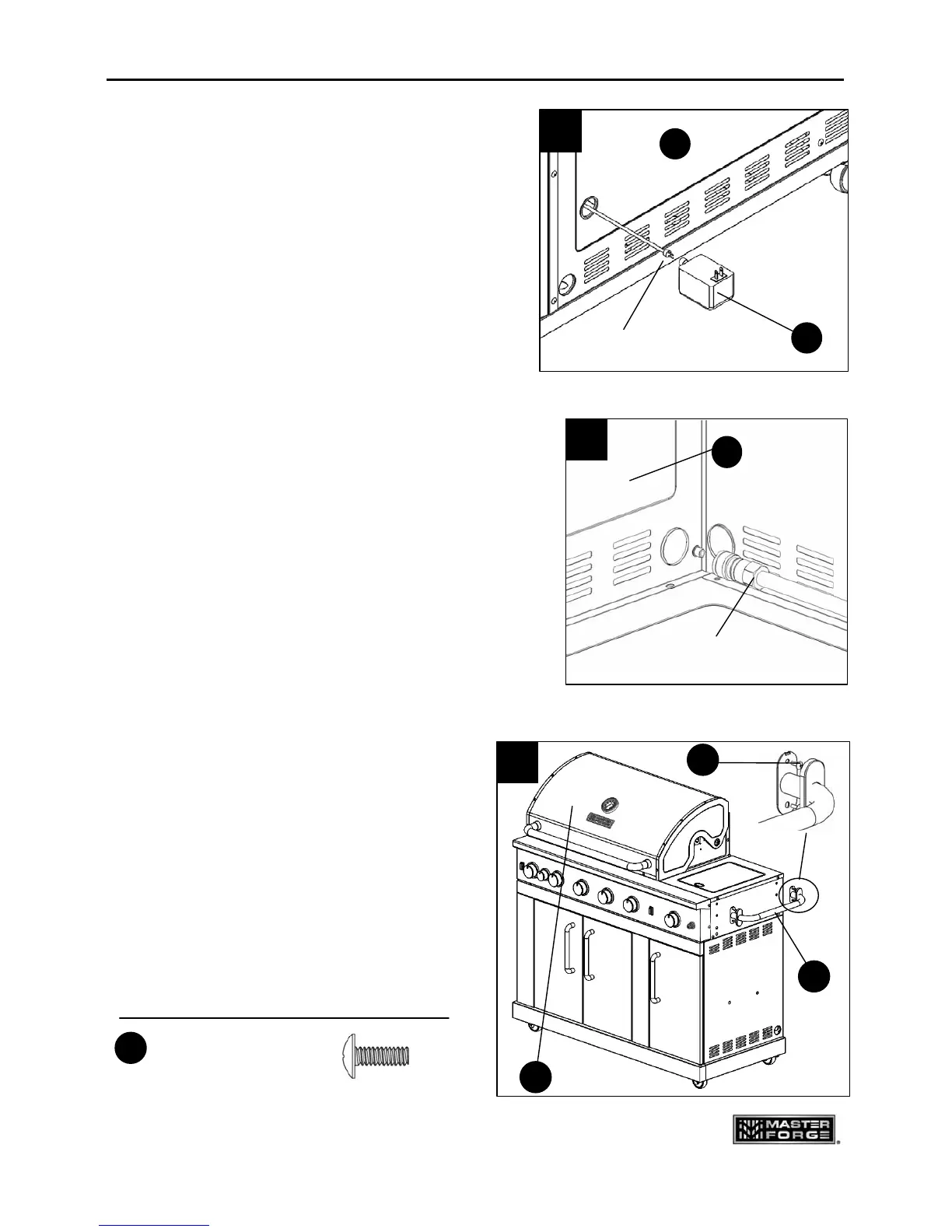

21. Connect the connector which is on the end
of the light wire from step 20 to the transformer (R).
Push the connector to mate firmly with the
transformer. Then, screw and tighten the cap on
the connector. (Fig. 21)
22. On the NG model, pass the natural
gas hose through the hole in the left rear
panel (I) to your gas supply system.
(Fig. 22)
23. Move the covers away the bases of the
grill handle (G), align the holes in the
bases with the holes of the burner box (A).
Insert screws (EE) into the aligned holes
and then tighten them. After tightening the
screws, move the covers onto the bases.
(Fig. 23)
22
NG hose
I
EE
23
G
A
I
R
21
connector
Hardware Used
3/16-24 x1/2 in.
Screw
X 4
EE
To Next Page
