Master Forge BG2724B-L User Manual

9
ASSEMBLY INSTRUCTIONS
IMPORTANT: ASSEMBLE ON FLAT AND SOFT SURFACE TO AVOID SCRATCHING.
AA
O
M
AA
N
1
L
M4 x 8 mm Screw
X 6
AA M4X8mm Screw
x 6

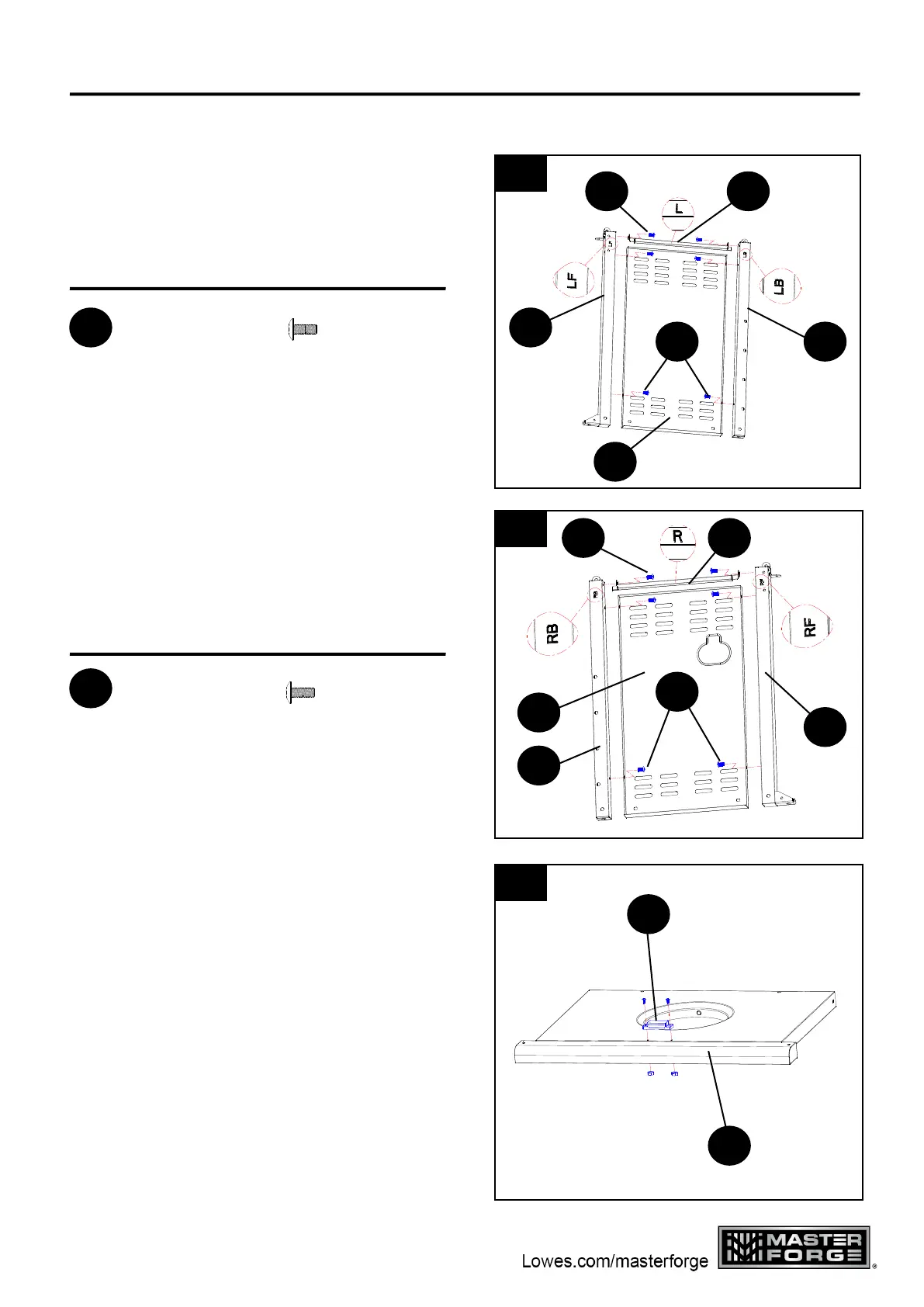

1. Attach left front leg assembly (N), left rear
leg assembly (L) and left drip tray rail (O) to
cart left panel (M) as shown using M4 x 8 mm
screws (AA).
Hardware Used
AA
3. Remove screws and nuts preassembled to
magnet (Q), then attach magnet (Q) to bottom
panel (R) as shown using the previously
removed hardware.
R
Q
3
AA
AA
T
V
Y
X
2
2. Attach right back leg assembly (V), right
front leg assembly (Y) and right drip tray rail
(T) to cart right panel (X) as shown using M4 x
8 mm screws (AA).
Hardware Used
M4 x 8 mm Screw
X 6
AA M4X8mm Screw
x 6
AA
