5

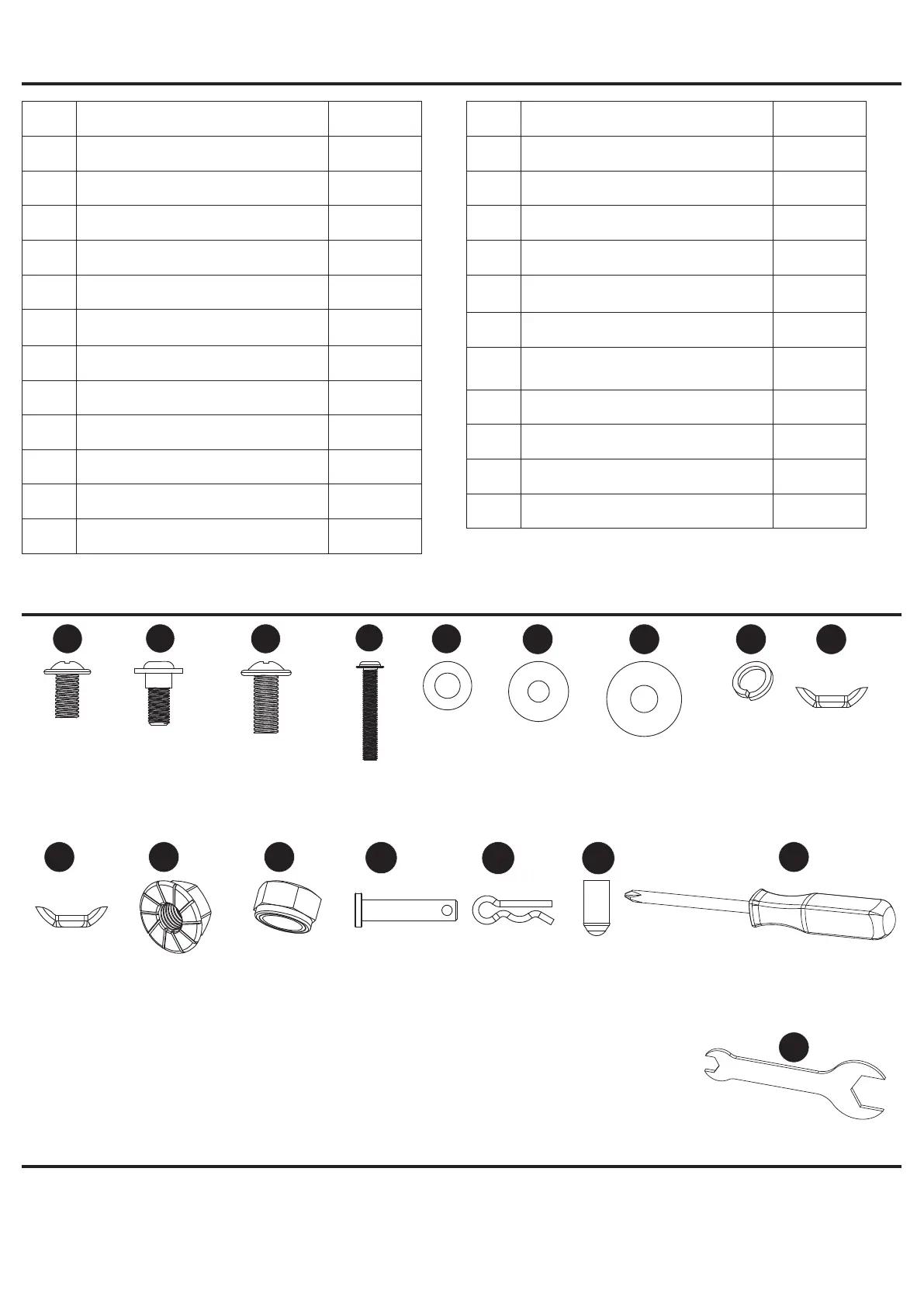

Part Description Quantity
A Lid 1
B Lid Handle 1
C Left Top Hinge 1
D Right Top Hinge 1
E Air Vent 1
F Temperature Gauge 1
G Bottom Bowl 1
H Left Bottom Hinge 1
I Right Bottom Hinge 1
J Warming Rack 1
K Cooking Grid 1
L Charcoal Grid 1
Part Description Quantity
M Condiment Holder 1
N Lock 1
O Ash Receiver Slide 1
P Bottom Air Damper 1
Q Ash Receiver 1
R Receiver Handle* 1
S Wheel Leg 2
T Front Leg 2
U Wheel 2
V Leg Connector 1
W Bottom Mesh 1
M5x8
Screw
Qty:6
M5x10
Step Screw
Qty:2
M6x12
Screw
Qty:18
Ø6
Washer
Qty:16
Ø5
Washer
Qty:8
AA
BB
CC
DD
EE
FF GG
#2 Philips Head
Screwdriver
Qty:1
Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list and hardware contents list. If any part is missing or damaged, do not attempt to assemble the
product.
Estimated assembly time: 35 minutes by one people.
Tools required for assembly: Wrench included and Philips screwdriver is not included.
PACKAGE CONTENTS
HARDWARE CONTENTS
Preparation
M6x35
Screw
Qty:2
HH
PP
* Pre-assembled
Ø6x22
Large Washer
Qty:2
M5
Wing Nut
Qty:2
II
JJ KK LL
MM
NN
OO
Ø6
Lock Washer
Qty:2
Ø1.4x38
Cotter Pin
Qty:2
M6
Wing Nut
Qty:2
M6
Nut
Qty:8
M10
Nut
Qty:4
Ø5x45
Pin
Qty:2
Ø3
Rubber Stopper
Qty:4
M6-M10
Wrench
Qty:1
QQ
To Next Page
