6

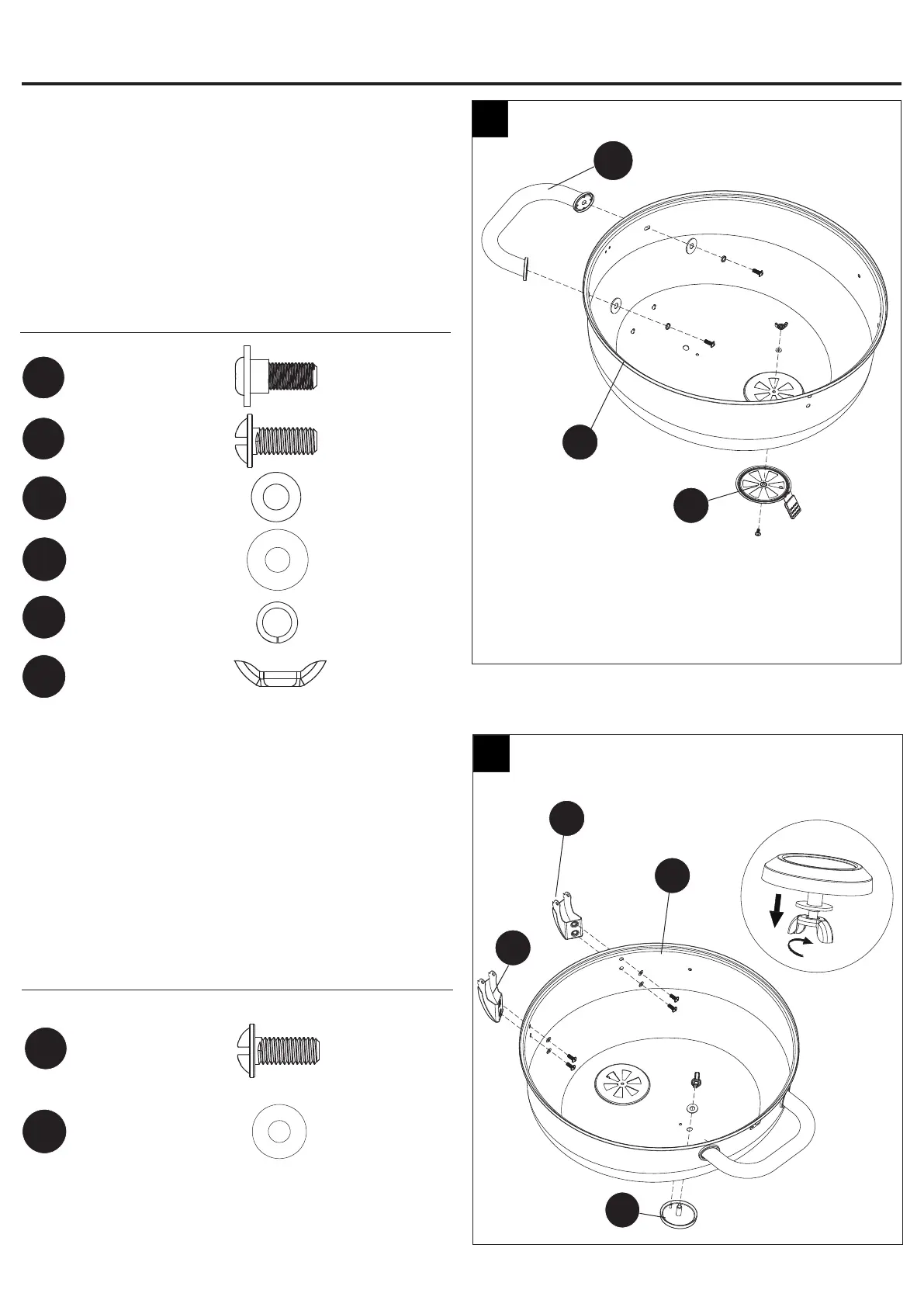

Step 1: Attach Lid Handle and Air Vent
Attach the lid handle (B) onto the lid (A) with two
M6x12 screws (CC), Ø6x22 large washers (GG) and
Ø6 lock washers (HH).
Attach the air vent (E) onto the lid (A) with one
M5x10 step screw (BB), Ø5 washer (EE) and M5
wing nut (II).
Hardware Used
1
A
Step 2: Attach Top Hinges and Temperature Gauge
Attach the left top hinge (C) and right top hinge (D)
onto the lid (A) with four M6x12 screws (CC) and Ø6
washers (FF).
Attach temperature gauge (F) onto the lid (A).
NOTE: Remove the washer and wing nut pre-
assembled on the temperature gauge (F) in rst.
Hardware Used
C
ASSEMBLY INSTRUCTIONS
F
2
D
E
B
M5x10
Step Screw
BB
x 1
M6x12
Screw
CC
x 2
Ø5
Washer
EE
x 1
Ø6x22
Large Washer
GG
x 2
Ø6
Lock Washer
HH
x 2
M5
Wing Nut
II
x 1
A
Ø6
Washer
FF
x 4
First
M6x12
Screw
CC
x 4
