Master Forge CBC23043L User Manual

7

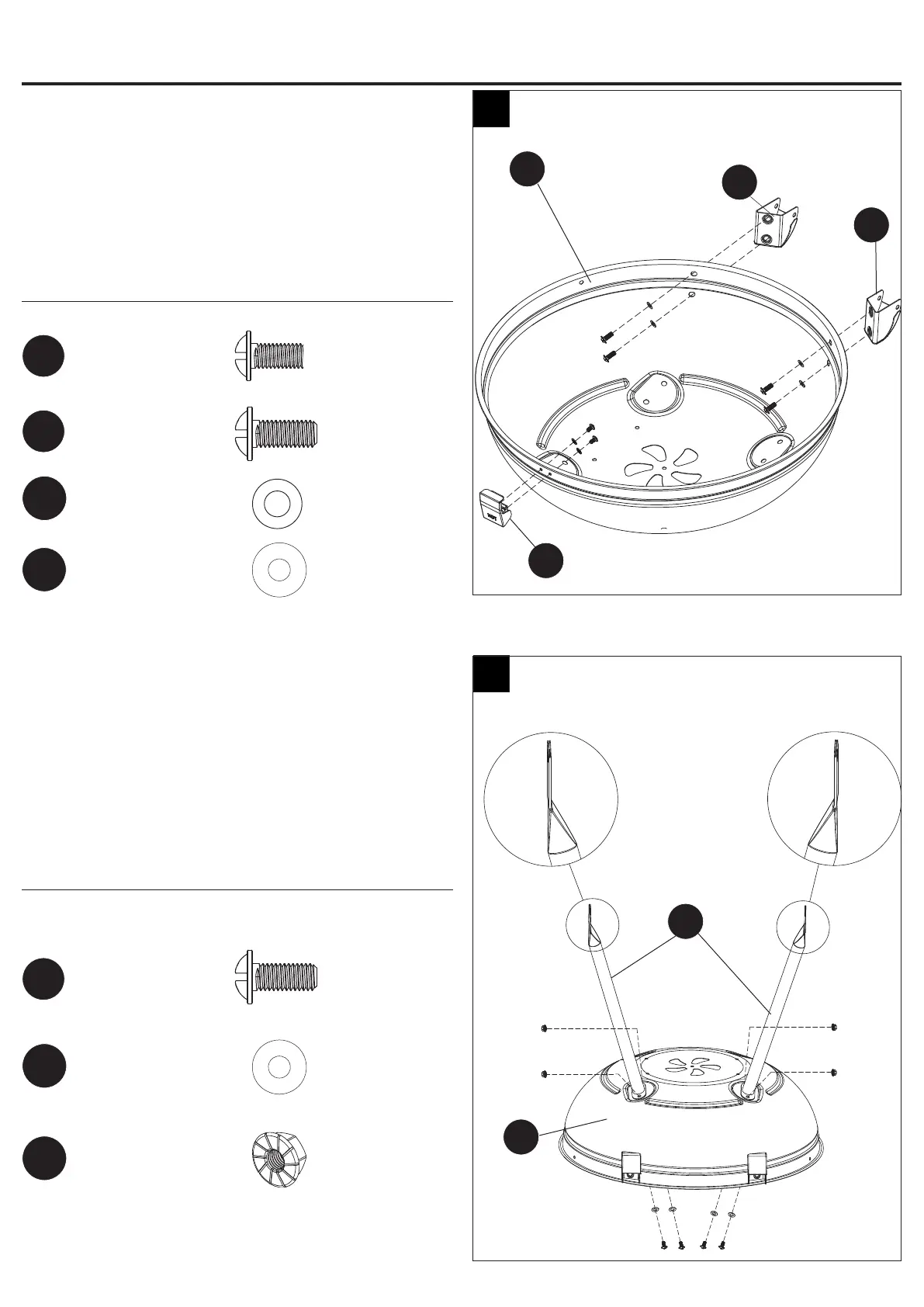

Step 3: Attach Bottom Hinges and Lock
Attach the left bottom hinge (H) and right bottom
hinge (I) onto the bottom bowl (G) with four M6x12
screws (CC) and Ø6 washers (FF).
Attach the lock (N) onto the bottom bowl (G) with
two M5x8 screws (AA) and Ø5 washers (EE).
Hardware Used
3
ASSEMBLY INSTRUCTIONS
G
Step 4: Attach Wheel Legs
Align the holes in the wheel legs (S) and bottom
bowl (G). And then attach them onto the bottom
bowl (G) with four M6x12 screws (CC), Ø6 washers
(FF) and M6 nuts (KK).
NOTE: Do not fully tighten screws until bottom mesh
is attached.
Hardware Used
4
S
I
Ø6
Washer
FF
x 4
H
N
M5x8
Screw
AA
x 2
G
M6x12
Screw
CC
x 4
Ø6
Washer
FF
x 4
M6
nut
KK
x 4
M6x12
Screw
CC
x 4
Ø5
Washer
EE
x 2
