Master Forge CBC23043L User Manual

8

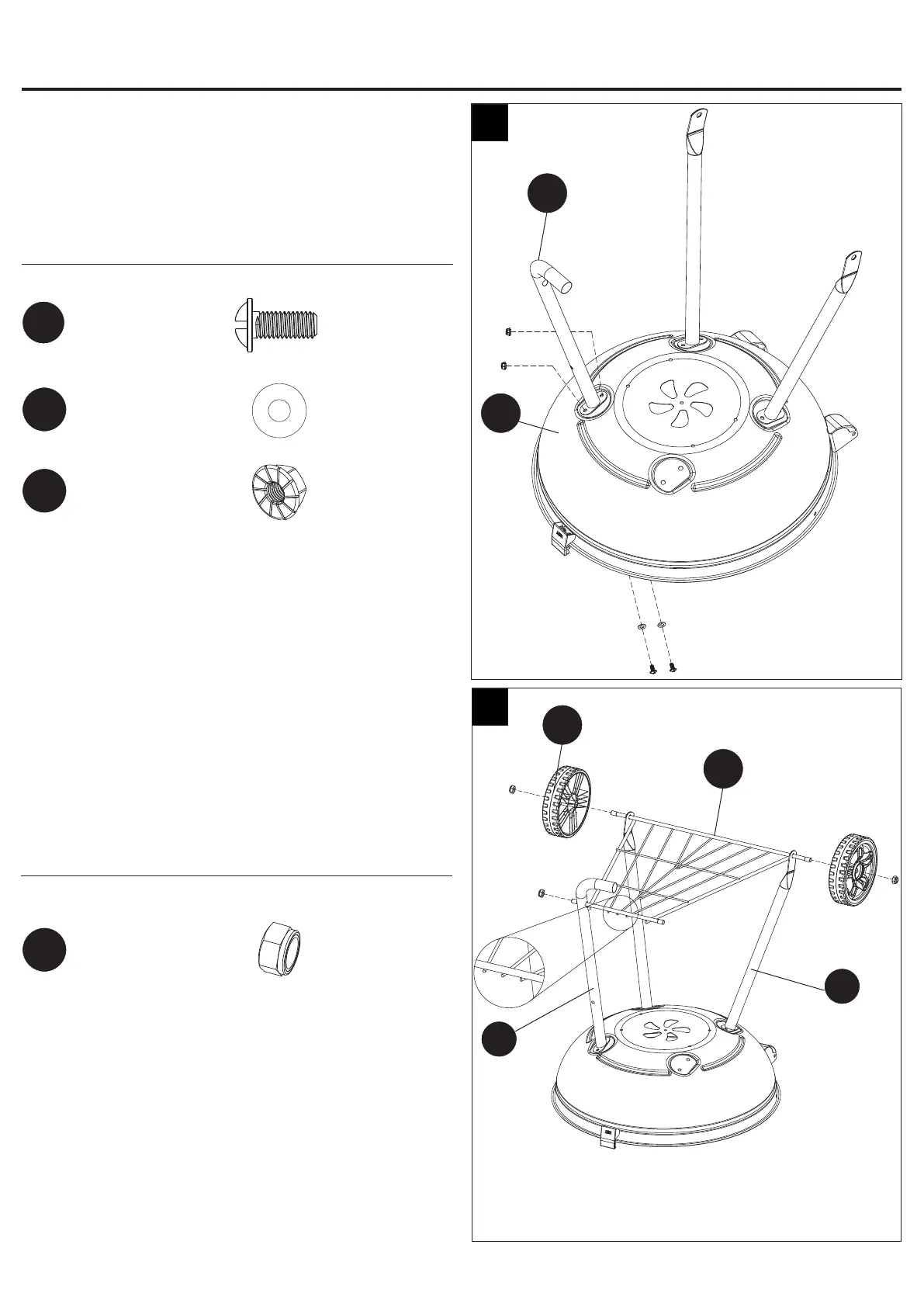

Step 5: Attach Front Leg
Align the holes in one front leg (T) and bottom bowl
(G). And then attach it onto the bottom bowl (G) with
two M6x12 screws (CC), Ø6 washers (FF) and M6
nuts (KK).
Hardware Used
5
6
ASSEMBLY INSTRUCTIONS
S
T
T
G
Step 6: Attach Bottom Mesh and Wheels
Attach the bottom mesh (W) onto the wheel legs (S)
and one front leg (T) with one M10 nut (LL).
Attach the wheels (U) onto the axle of the bottom
mesh (W) with two M10 nuts (LL).
Hardware Used
M6x12
Screw
CC
x 2
Ø6
Washer
FF
x 2
M10
Nut
LL
x 3
W
U
M6
nut
KK
x 2
