Master Forge GBT23010L User Manual

7

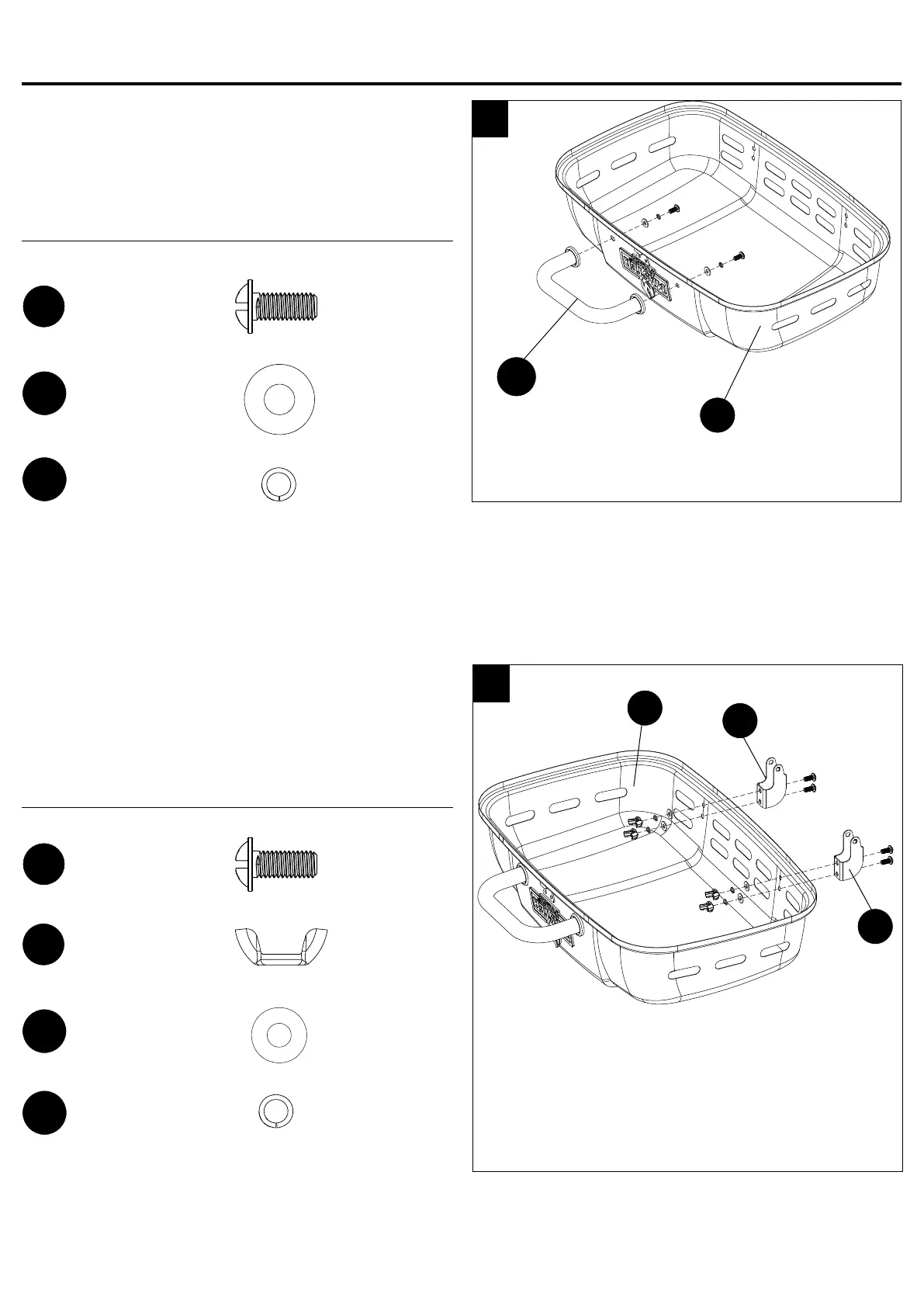

Step 1: Attach Lid Handle
Attach the lid handle (A) onto the lid (B) with two
M5x12 screws (BB), Ø22 washers (FF) and Ø5 lock
washers (GG).
Hardware Used
A
1
B
Step 2: Attach Top Hinges
Attach the top hinges (C) onto the lid (B) with
four M5x12 screws (BB), M5 Wing nuts (DD), Ø5
washers (EE) and Ø5 lock washers (GG).
Hardware Used
B
C
C
ASSEMBLY INSTRUCTIONS
2
M5x12
Screw
BB
x 2
Ø22
Washer
FF
x 2
Ø5
Lock Washer
GG
x 2
M5x12
Screw
BB
x 4
Ø5
Washer
EE
x 4
Ø5
Lock Washer
GG
x 4
M5
Wing Nut
DD
x 4
