:LULQJ'LDJUDP
Maintenance
12==/(6
Nozzles should be cleaned or replaced at least
once per heating season. Contaminated fuel could
make this necessary immediately. To clean dirt
from nozzle, blow compressed air through nozzle
front. It may be necessary to soak the nozzle in
1-K kerosene to loosen any dirt particles.

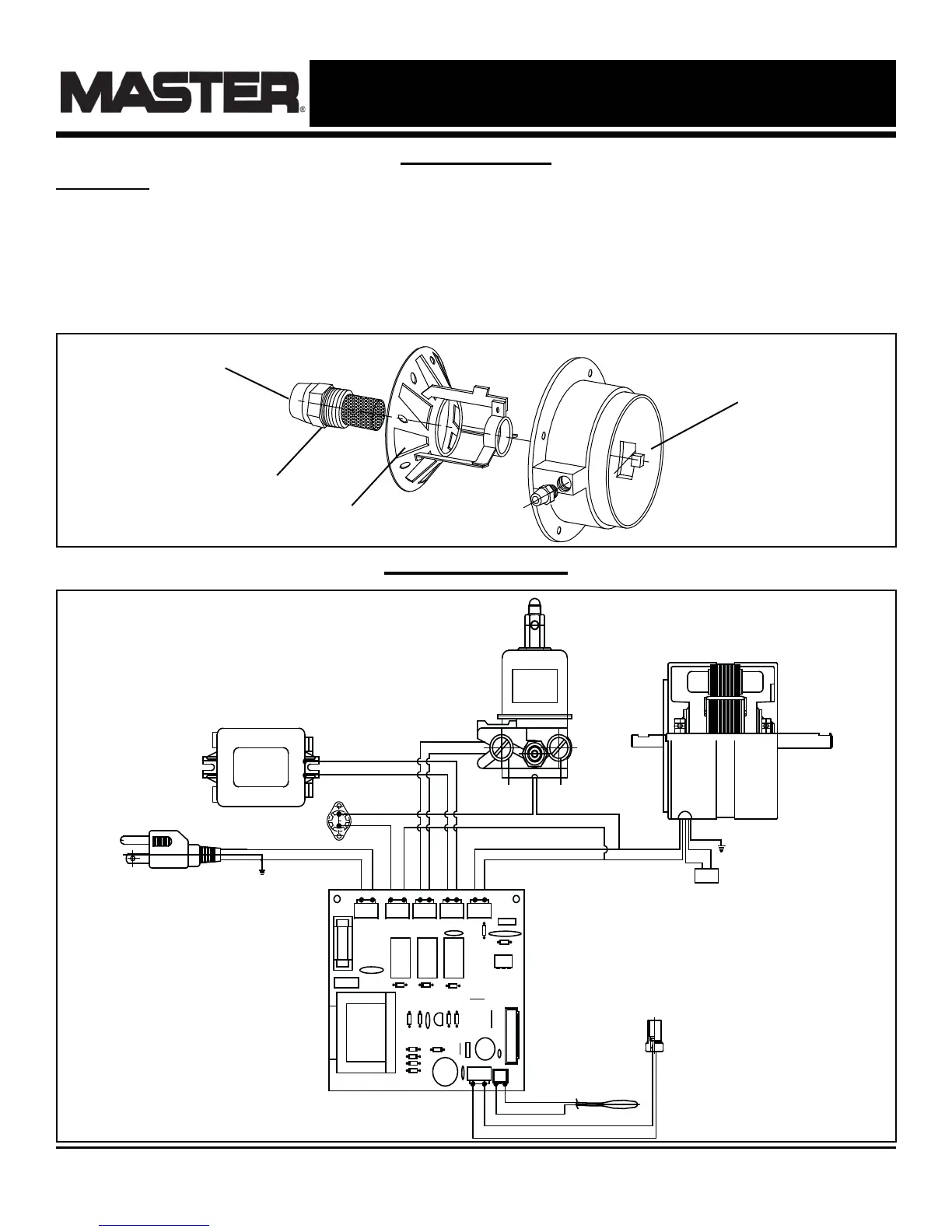

Figure 11
Nozzle
Nozzle Face
Burner Head
10
Dispenser
CN5
CN2CN4
CN3
CN1
MotorIgniterP-SolPump
AC 250V/3A
TNR1
XC1
RY1
RY3
RY2
TNR2
R-1
R-2
C-1
TR-1
U-1
CN8
JP3
JP1
D-6
D-8
D-7
R7R6Q1
C6
R5R4
T1
D1
D2
D3
D4
C2
D5
JP2
U2
C4
CN6
C5
RTH
CN7
CDS
C3
Black
White
Blue
Red
Red
Yellow
Blue
Red
Brown
Green
Blue
Black
Black
Black
Blue
Blue
Black
Black
Condensor
Power
Ignitor
Pump
Motor
Photocell
Thermistor
PCB
Limit Control
