NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR
WHILE CONNECTED TO A POWER SOURCE
© 2014, Pinnacle Products International, Inc. Dual Fusion Forced Air Heater User’s Manual
1. Insert axle through holes in wheel support.
2. Slide then spacer onto axle.
Slide wheel onto axle with the air valve facing
out and hold in place with the axle nuts. (See
Figure 2).
4. Place heater on wheel support frame and line
up holes on the fuel tank lip.
5. Attach front handle with (4) long screws
(55 mm) and (4) nuts through the second and
third hole from the front on both sides of the
tank lip and wheel support frame and tighten
firmly.
6. ,QVHUWVKRUWVFUHZVPPWKURXJKWKH
first hole the front of in the tank lip and tighten
firmly. Make certain all (6) screws are secure.
7. Attach rear handle with (4) long screws (55
mm) and (4) nuts through the first and second
hole from the rear on both sides of the tank
lip and wheel support frame and tighten
firmly.
8. Attach front guard with the included
hardware.
$VVHPEO\,QVWUXFWLRQV
0RGHOV0+7')90+7')9

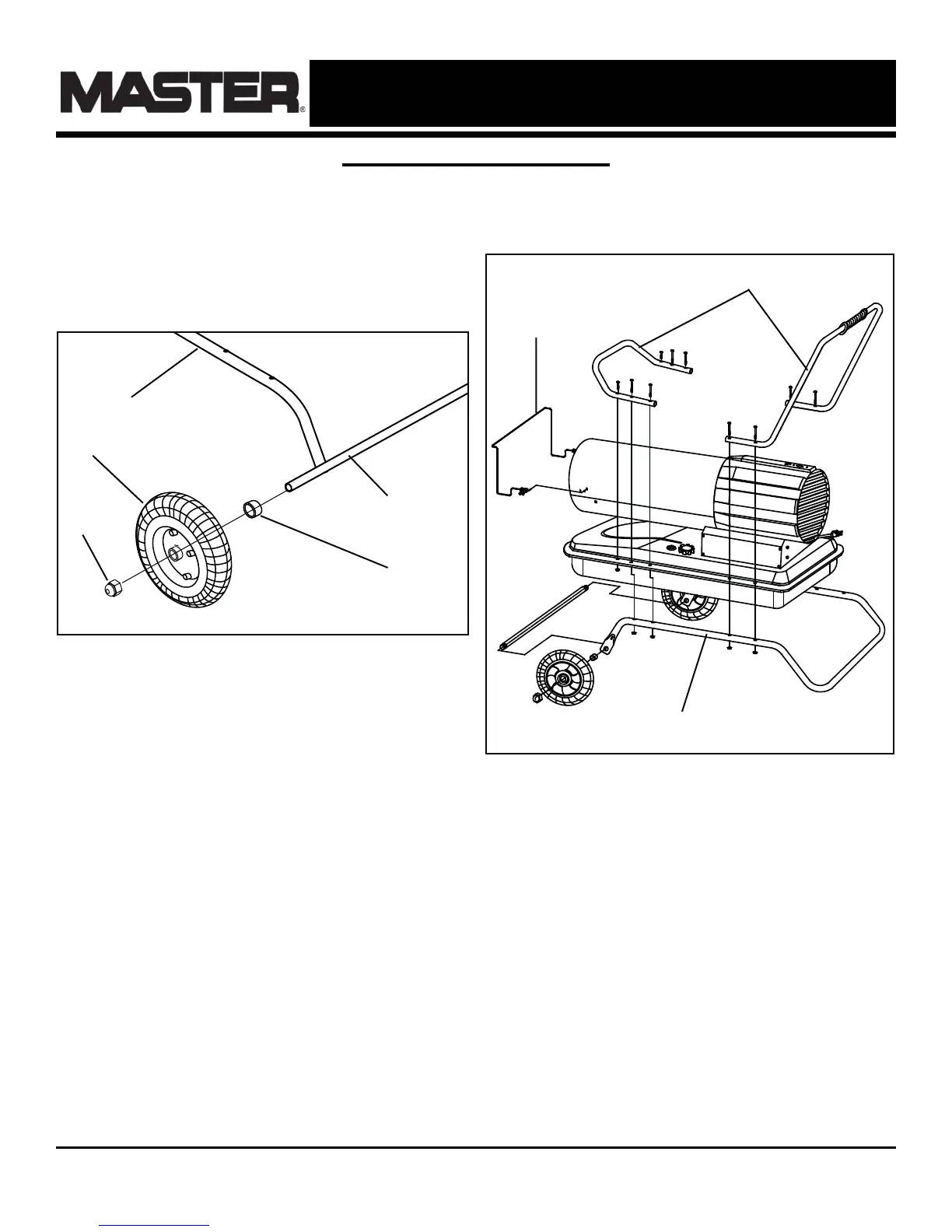

Figure 2
Axle
Axle Nut
Spacer
Tire
Wheel Support Frame
5
)LJXUH
Handle
Wheel Support Frame
Safety Guard
To Next Page
