ASSEMBLY

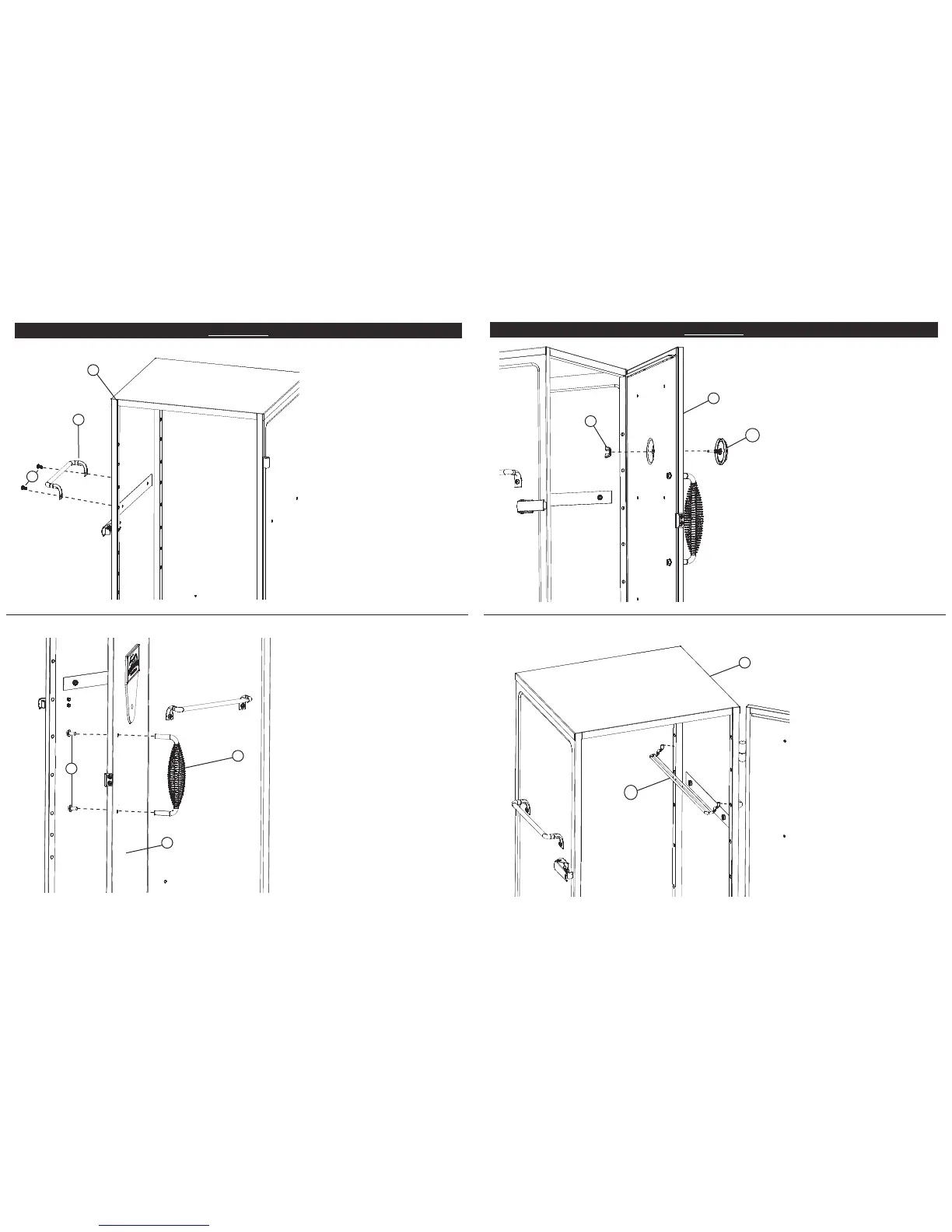

STEP 6
Insert door handle (7) into smoker
door (2). Secure using phillips
screws (C).
7
2
C
STEP 5
Mount body handle (8) to smoker
body (1) using phillips screws (A).
A
8
1
10
ASSEMBLY
STEP 7
Insert temperature gauge (13) into
smoker door (2). Secure in place
with wing nut (D).
13
D
2
STEP 8
Insert cooking grate supports (21)
into smoker body (1).
1
21
