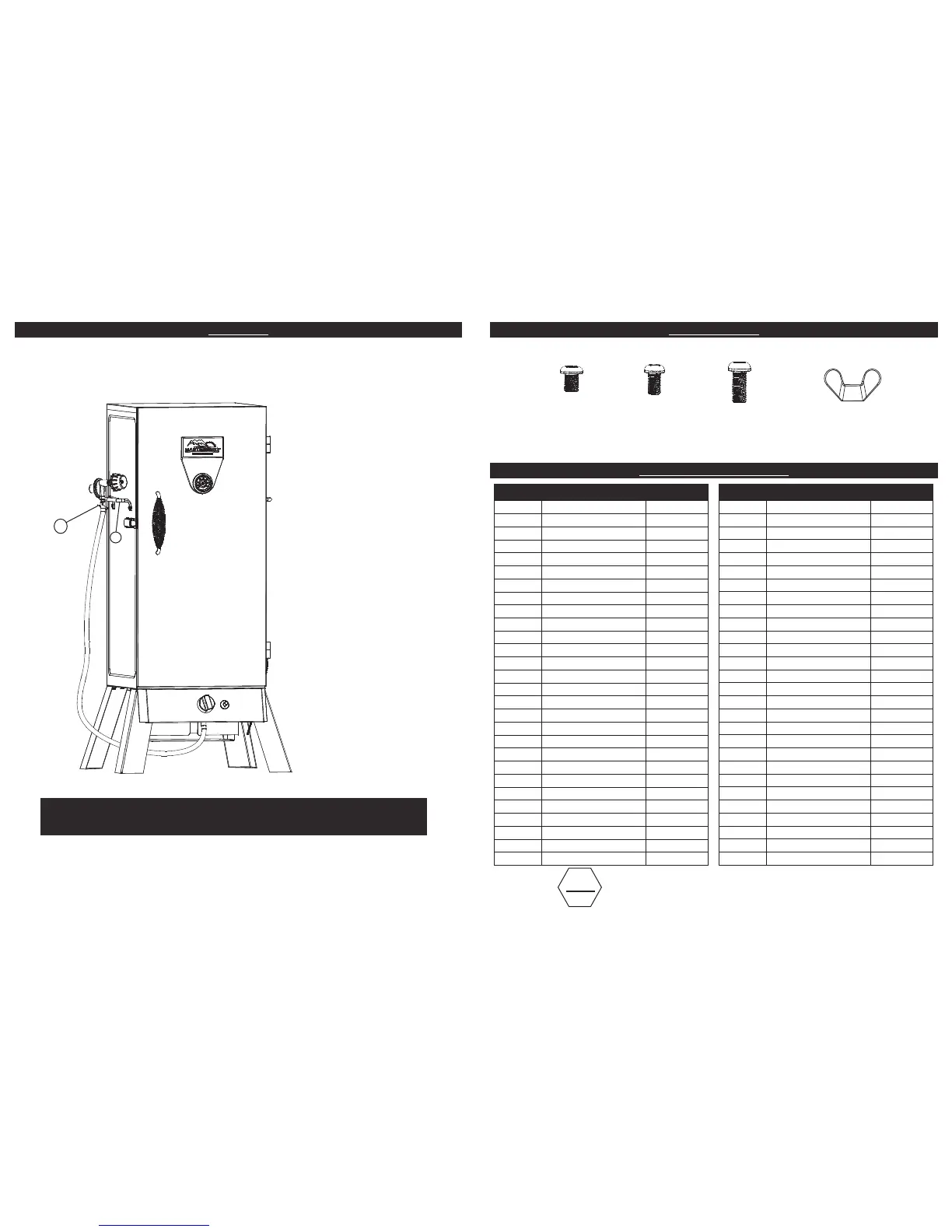

13
SMOKER IS READY FOR USE
ASSEMBLY
STEP 13
When not in use, hang
regulator/hose (23) on body handle
(8) as shown.
8
23
HARDWARE LIST
REPLACEMENT PARTS LIST
Model 20050311
PART NO REPLACEMENT PART ITEM NO
1 Body Kit 9905100001
2 Door with Logo Plate 9905100007
3 Air Damper Kit 9904090069
4 Rear Leg Kit 9905100002
5 Control Panel Kit 9905100004
6 Burner Box Kit 9905100005
7 Door Handle Kit 9905090003
8 Body Handle Kit 9905100003
9 Flame Disk Bowl 911060006
10 Water Bowl 9005100009
11 Water Bowl Holder 9005100007
12 Cooking Grate 911060003
13 Temperature Gauge Kit 9907090034
14 Valve Kit 990060291
15 Ignitor Assembly Kit 990060328
16 Control Knob 911060014
17 Burner 9005100011
18 Grease Clip 9005100025
19 Door Latch Kit 990050222
21 Cooking Grate Support 9005100006
22 Match Stick with Chain 908060003
23 Regulator/Hose 911060001
24 Grease Cup 9005100039
25 Right Front Leg Kit 9905100021
26 Left Front Leg Kit 9905100020
Hardware Kit 9905100008
Instruction Manual 9805100001
Model 20050211
PART NO REPLACEMENT PART ITEM NO
1 Body Kit 9905100009
2 Door with Logo Plate 9905100012
3 Air Damper Kit 9904090069
4 Rear Leg Kit 9905100002
5 Control Panel Kit 9905100011
6 Burner Box Kit 9905100005
7 Door Handle Kit 9905090003
8 Body Handle Kit 9905100003
9 Flame Disk Bowl 911060006
10 Water Bowl 9005100017
11 Water Bowl Holder 9005100016
12 Cooking Grate 9005100015
13 Temperature Gauge Kit 9907090034
14 Valve Kit 990060291
15 Ignitor Assembly Kit 990060328
16 Control Knob 911060014
17 Burner 9005100042
18 Grease Clip 9005100025
19 Door Latch Kit 990050222
21 Cooking Grate Support 9005100010
22 Match Stick with Chain 908060003
23 Regulator/Hose 911060001
24 Grease Cup 9005100039
25 Right Front Leg Kit 9905100021
26 Left Front Leg Kit 9905100020
Hardware Kit 9905100008
Instruction Manual 9805100001
STOP
DO NOT RETURN TO RETAILER
For Assembly Assistance, Missing or Damaged Parts
Call: MASTERBUILT Customer Service at 1-800-489-1581.
6
(A)
M6x12
Phillips Screw
Qty-24
(B)
#10x3/8
Self-tapping Screw
Qty-4
(C)
M6x20
Phillips Screw
Qty-2
(D)
Wing Nut
(packed with temperature gauge)
Qty-1
