11

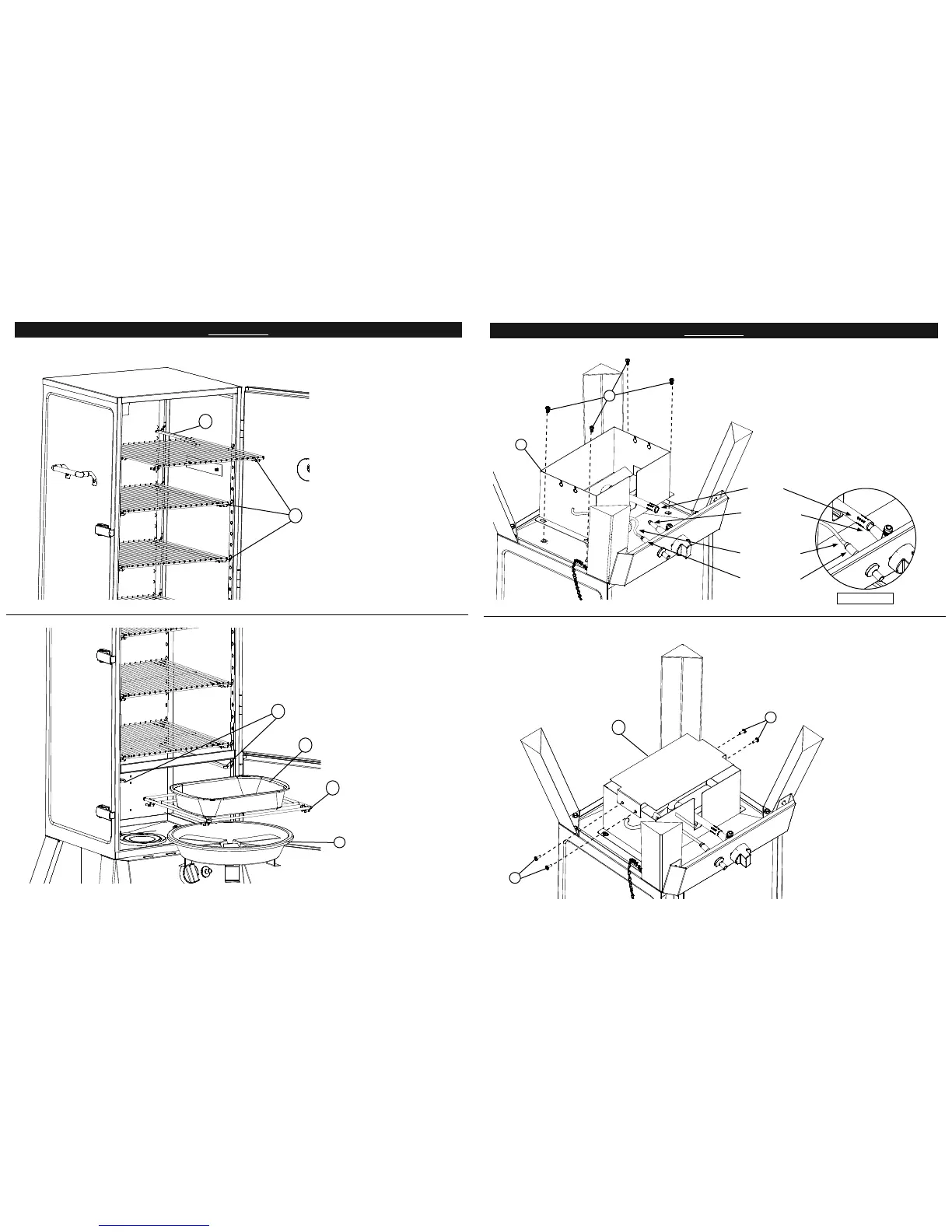

ASSEMBLY
STEP 9
Slide cooking grates (12), onto
cooking grate supports (21).
21
12
9
11
10
21
STEP 10
Insert water bowl (10) into water
bowl holder (11) and slide water
bowl holder onto cooking grate
support (21).
Place fl ame disk bowl (9) into
smoker as shown.
8
ASSEMBLY
STEP 3
Position burner box (6) over center
hole in bottom of smoker body,
carefully aligning venturi over valve
orifi ce as shown. Attach burner box
to smoker body using phillips
screws (A).
Firmly attach ignition wire to piezo
ignitor on control panel as shown
in Figure B.
STEP 4
Attach heat shield (20) to burner
box (6) using self tapping screws
(B) as shown.
Tighten all hardware at this time.
B
20
A
6
Figure B
Venturi
Ignition Wire
Piezo Ignitor
Valve Orifi ce
B
