Masterbuilt GRAVITY 560 Series - Page 17

17
B
X2
B
B

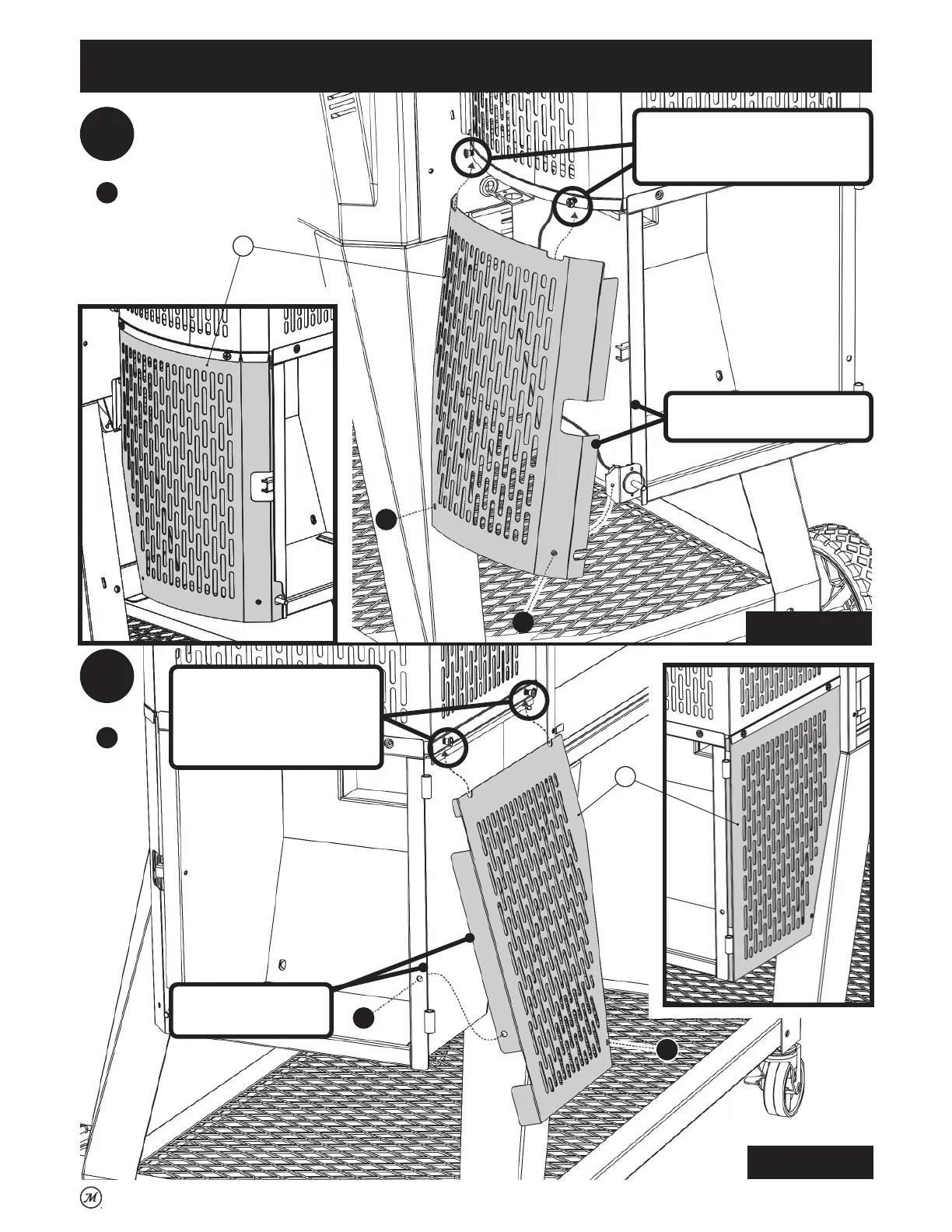

Remove top heat shield screws. Slide
bottom heat shield UNDER top heat
shield. Re-instal after lower screws
(B) are installed.
Outer fl ange fi ts BEHIND rim of
hopper opening.
51
16
17
Assembly
B
X2
B
46
Remove top heat shield screws.
Slide bottom heat shield UNDER
top heat shield. Re-instal after
lower screws (B) are installed.
Outer fl ange fi ts BEHIND
rim of hopper opening.
B
FRONT VIEW
REAR VIEW
