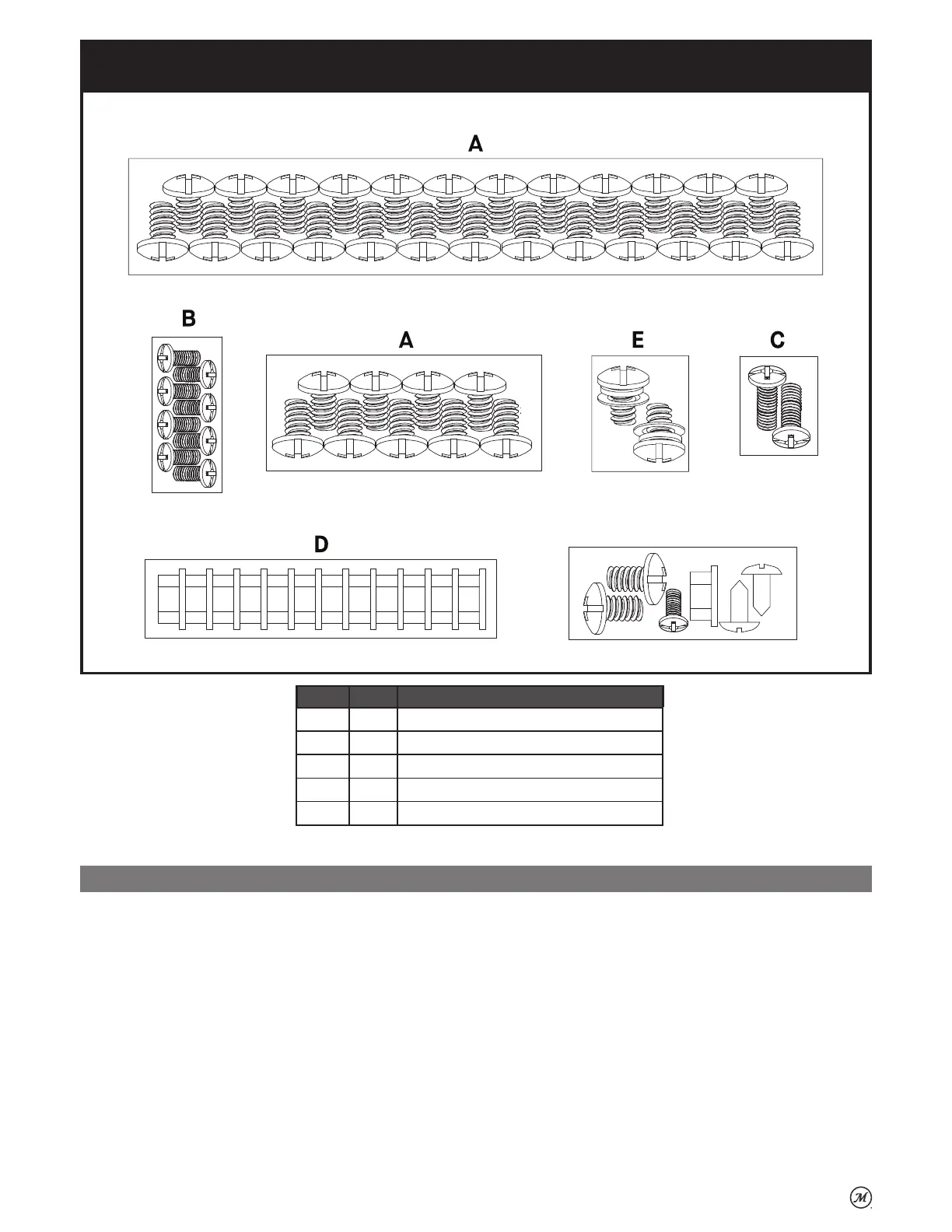

Hardware
KEY QTY. DESCRIPTION
A 34 M6x15 Screw
B 8 M4x10 Screw
C 2 M5x12 Screw
D 12 M6 Hex Nut
E 2 M6x15 Screw with lock and fl at washer
SAFETY FEATURES
Lid Switch – Prevents grill from overheating.
• If the set temperature is above 260°C the controller will regulate the grill temperature to 260°C
when the grill lid is opened. Once the lid is closed the grill will return to the set temperature.
• If the set temperature is below 260°C the controller will continue to regulate the grill at the set
temperature when the grill lid is opened.
Hopper Switches – Reduces chimney effect when hopper is opened.
1. Hopper Lid Switch: The fan will stop when the hopper lid is opened. The fan will restart when the
hopper lid is closed.
2. Hopper Ash Door Switch: The fan will stop when the hopper ash door is opened. The fan will
restart when the hopper ash door is closed.
