20V max* LITHIUM-ION CORDLESS CIRCULAR SAW - 054-8332-4
OPERATING INSTRUCTIONS
To check the 0° bevel stop
(g 15)
1. Remove the battery pack from the saw.
WARNING!
Always remove the battery pack
from the saw when assembling
parts, changing blades or making
adjustments. Failure to obey this
warning could cause serious personal
injury.
2. Using a carpenter’s square, check that the saw
blade is square (at a 90° angle) to the base of
the saw.
To adjust the 0° bevel stop
(g 16)
1. Remove the battery pack from the saw.
2. Loosen the bevel-adjustment knob.
3. Place the saw in an upside down position on a
workbench.
4. Using a Phillips screwdriver (available
separately), turn the 0° bevel-stop adjusting
screw until the base is square with the saw
blade.
Making a pocket cut
(g 17)
WARNING!
Always adjust the bevel setting to zero before making a pocket cut. Attempting a pocket cut at
any other setting can result in a loss of control of the saw, which can result in serious injury.
1. Remove the battery pack.
2. Adjust the bevel setting to 0° and tighten the bevel-adjustment knob.

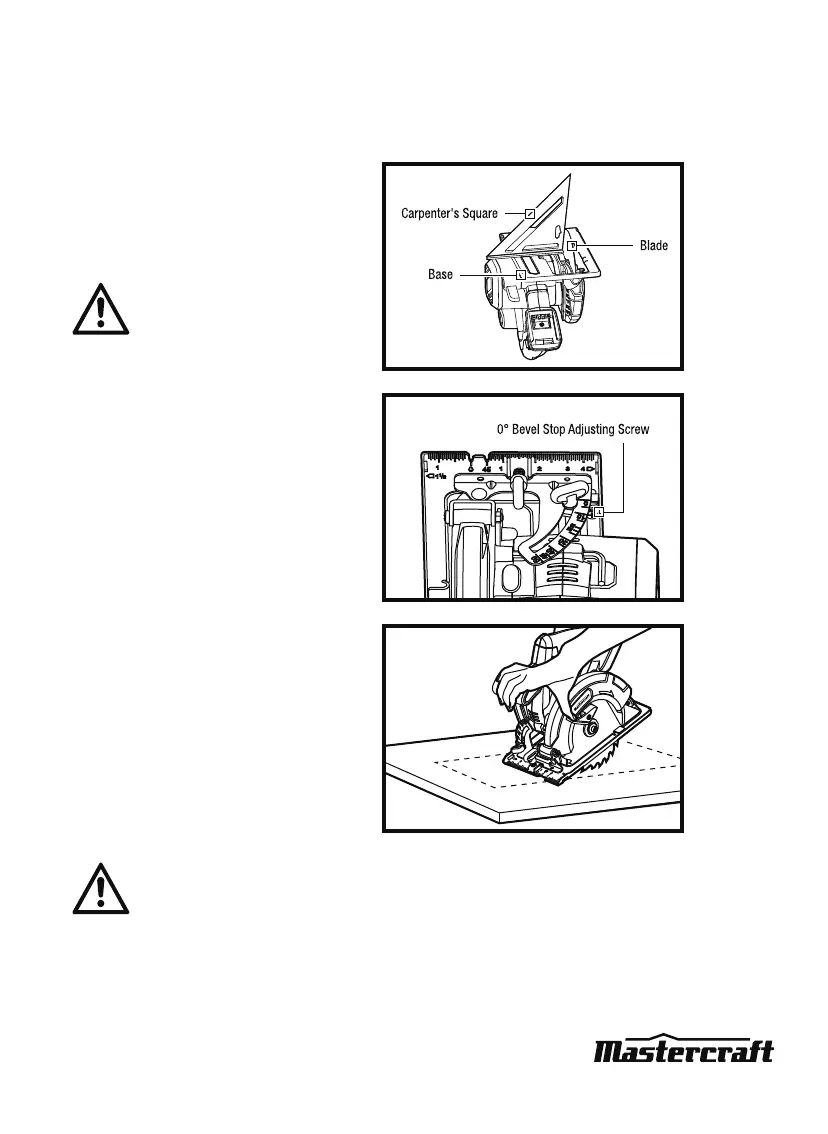

fig 15
fig 16
fig 17
