MasterCraft 054-8357-6 User Manual

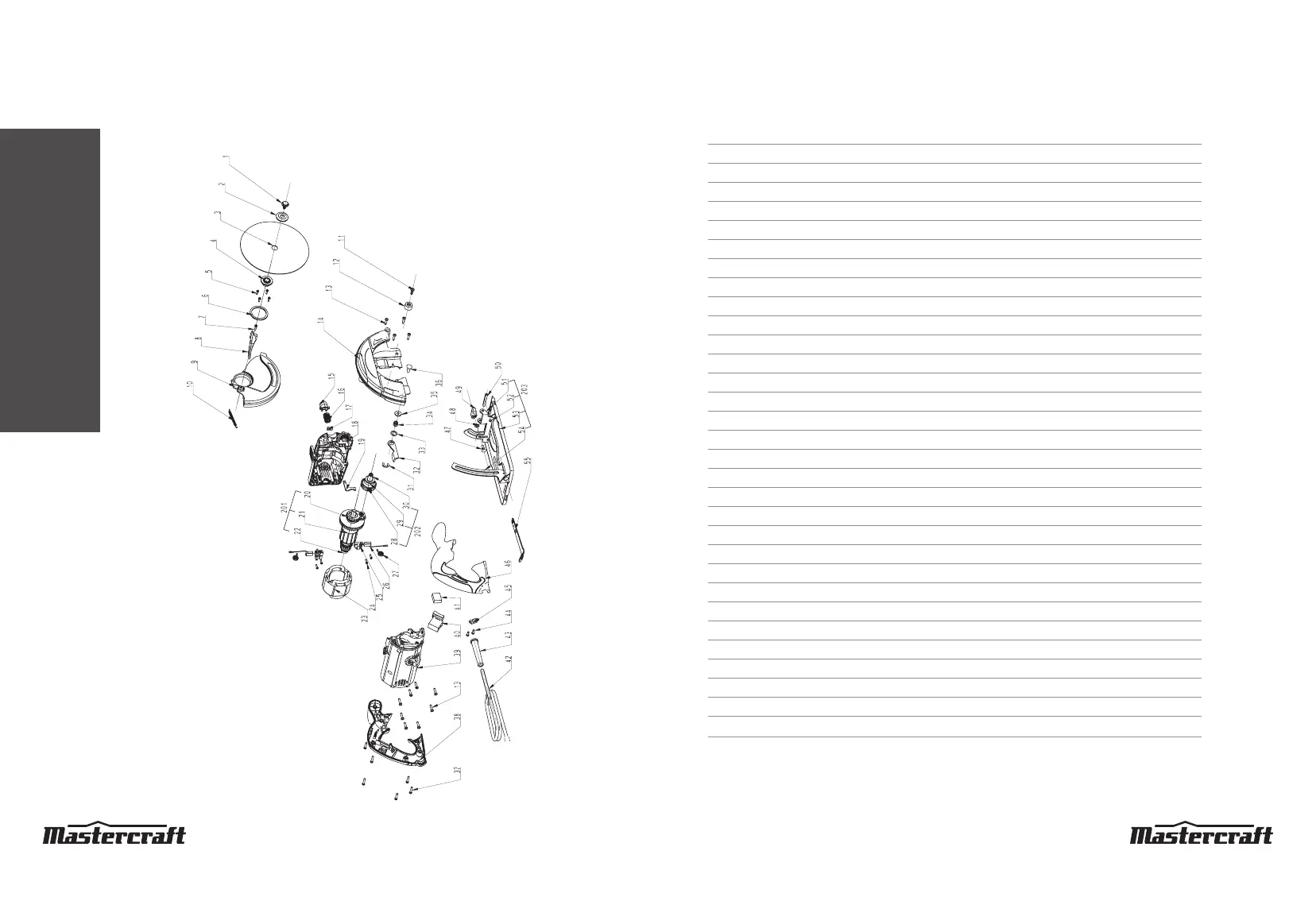

Explodedview
No. Part No. Description No. Part No. Description
01 5620151000 Flange Screw 30 3550935000 Gear Shaft
02 3550938000 Outer Flange 31 5660010000 E Ring
03 3810397000 Blade 32 3700242000 Lever
04 3550936000 Inner Flange 33 3700283000 Wave Washer
05 5620410000 Screw with washer 34 5630043000 Nut
06 3704000000 Circlip 35 5650017000 Plain Washer
07 5610031000 Thread Forming Screw 36 5620153000 Screw
08 3121379000 Moving Guard Lever 37 5610106000 Tapping Screw
09 3126122000 Lower Guard 38 3126127000 Left Handle
10 3660527000 Spring 39 3126126000 Right Housing
11 5610058000 Thread Forming Screw 40 4870478000 Trigger Switch
12 3121051000 Stopper 41 3700540000 Sponge
13 5610042000 Tapping Screw 42 4810002000 Power Cord & Plug
14 3421274000 Upper Guard 43 3121050000 Cord Guard
15 3124383000 Lock Button 44 5610093000 Tapping Screw
16 3660326000 Spring 45 3700285000 Cord Anchorage
17 3704010000 Felt Block 46 3126125000 Right Handle
18 3126123000 Left Housing 47 5640019000 Square Neck Bolt
19 3703999000 Lock Rod 48 5650016000 Plain Washer
201 2823262000 Rotor Set 49 3400010000 Wing Nut
20 2823238000 Bearing Support Assembly 50 5670263000 Spring Pin
21 2750849000 Rotor 203 2823236000 Base Plate Set
22 5700006000 Ball Bearing 51 3703995000 Support
23 2740247000 Stator 52 5680009000 Rivet
24 5610012000 Tapping Screw 53 3703994000 Base Plate
25 2800160000 Brush Support 54 3703998000 Depth Bracket
26 4960270000 Carbon Brush Assembly 55 3700664000 Wrench
27 3660087000 Snailed Spring
202 2823237000 Gear Set
28 3520310000 Gear
29 5700014000 Ball Bearing
25 26
7 1/4" CIRCULAR SAW - 054-8357-67 1/4" CIRCULAR SAW - 054-8357-6
PARTS LIST PARTS LIST
