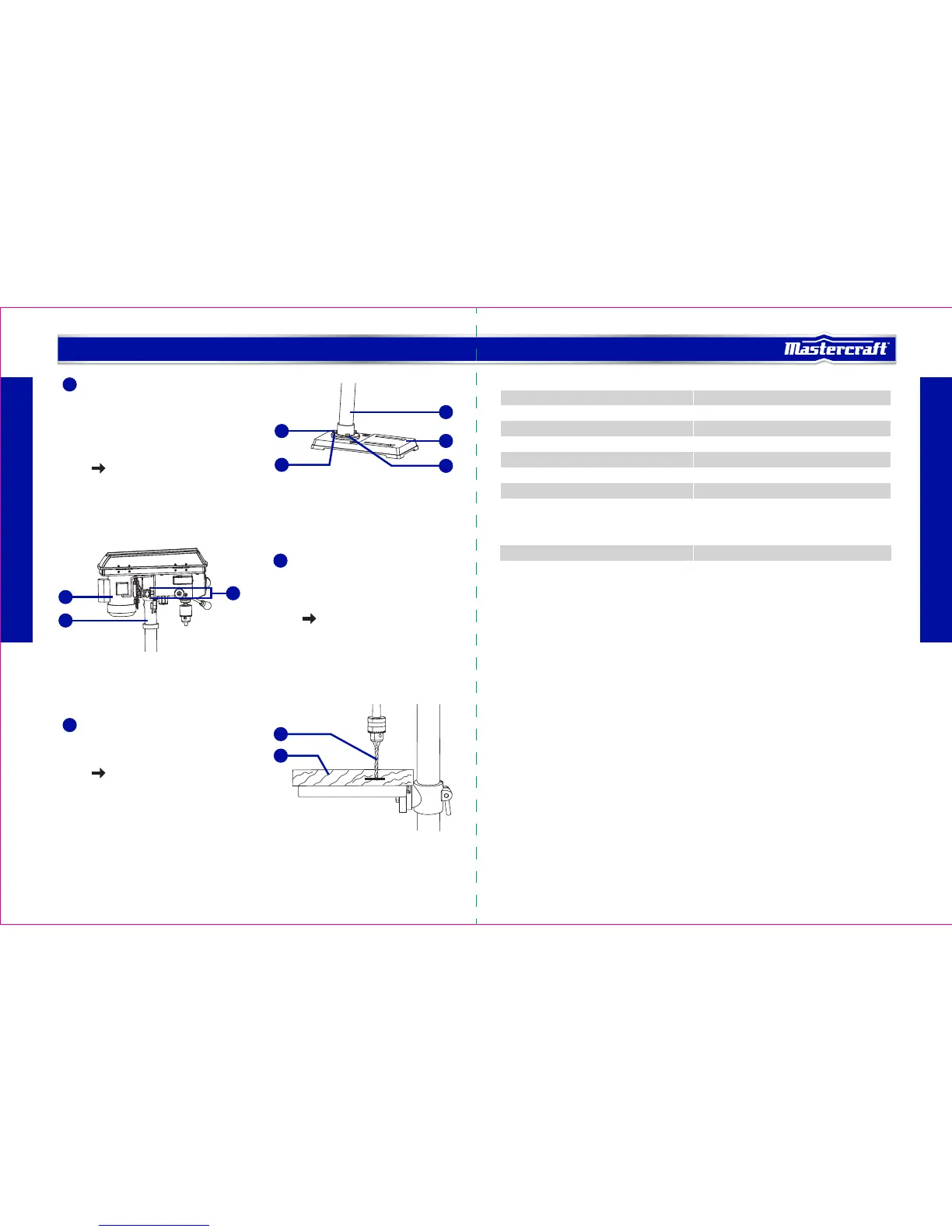

• Place the column tube (2) on the base (1),
align the column support holes with the
base holes.
• Install a bolt M8 x 25 (3), a flat wahser
M8 (4) and a spring washer M8 (5) in
each column support hole and tighten
with the wrench.
see page 20
1
• Lift the drill press head assembly (1)
carefully and place the mounting hole of
the drill press head onto the top of the
column (2). Make sure the head is seated
properly on the column.
see page 21
2
model no. 055-5530-8 | contact us 1-800-689-9928
SPECIFICATIONS
Motor
Pulley speeds
Table size
Base size
Spindle travel
Column diameter
Max. drilling capacity
Capacity
Chuck
Weight
120 V, 60 Hz, 4.1A
620, 1150, 1630, 2180, 3070 RPM (no load)
7 1/4 X 7 1/4" (18.4 x 18.4 cm)
13 3/8 X 8 1/4" (34 x 21 cm)
5 cm
ø5 cm
5/8" (1,2 cm) diameter
5" (12.7 cm) chuck to column
12 3/16" (31 cm) chuck to table
17 1/4" (43.8 cm) chuck to base
1/16–5/8" (1.5–16 mm), keyed
49 lb 8 oz (22.5 kg)
5
SPECIFICATIONS
4
QUICK START GUIDE
• Mark the desired depth of the hole on the
side of the workpiece (1).
• With the switch off, bring the drill bit (2)
down until the tip is even with the mark.
see page 30
3
1
2
1
2
3
4
5
1
2
3
