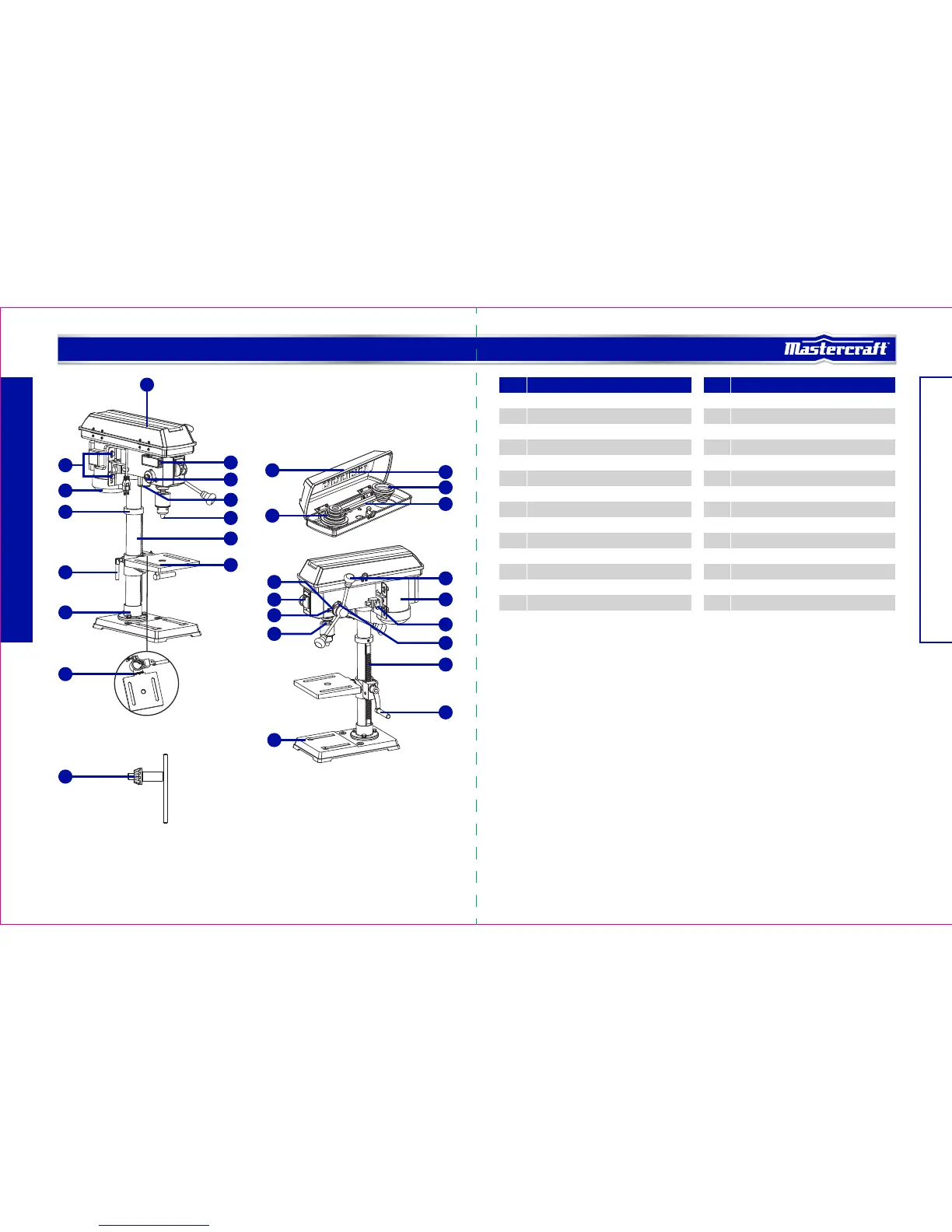

KNOW YOUR DRILL PRESS
14
KNOW YOUR DRILL PRESS
1
2
3
4
5
6
7
14
13
12
11
10
On/Off switch:
The On/Off switch located on the front of the drill press allows the operator to turn On/Off the drill press easily.
To lock the switch in the Off position, remove the safety key from the switch. Place the safety key in a location
that is not accessible to children and others who are not qualified to use the tool.
Spindle speed:
Five different spindle speeds allow you to drill a wide variety of material including wood, plastic and metal.
Bevel scale:
The bevel scale indicates the degree to which the table is tilted.
Chuck:
Your drill press features a standard three-jaw type chuck with a self-ejecting chuck key, which prevents
accidentally starting the drill press with the key still engaged in the chuck.
Depth scale:
A depth scale is located between the pulley housing and feed handles to aid in drilling at desired depths.
Feed handles:
Feed handles raise and lower the chuck and bit during the drilling operation.
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Description
Pulley housing cover
LED worklight switch
Feed return spring and cover
LED worklight
Chuck
Column
Table
Chuck key
Bevel scale
Column support
Support lock handle
Rack collar
Power cord
Locking screws
Belt/pulley speed chart
NO.
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
Description
Motor pulley
Belt
Feed handle
Motor
Tension lock knob
Depth tension knob
Rack
Crank handle
Base
Quill
Pointer
On/Off switch
Depth scale
Spindle pulley
Pulley housing screw
9
8
16
15
17
29
30
18
19
20
21
22
23
24
28
26
27
25
