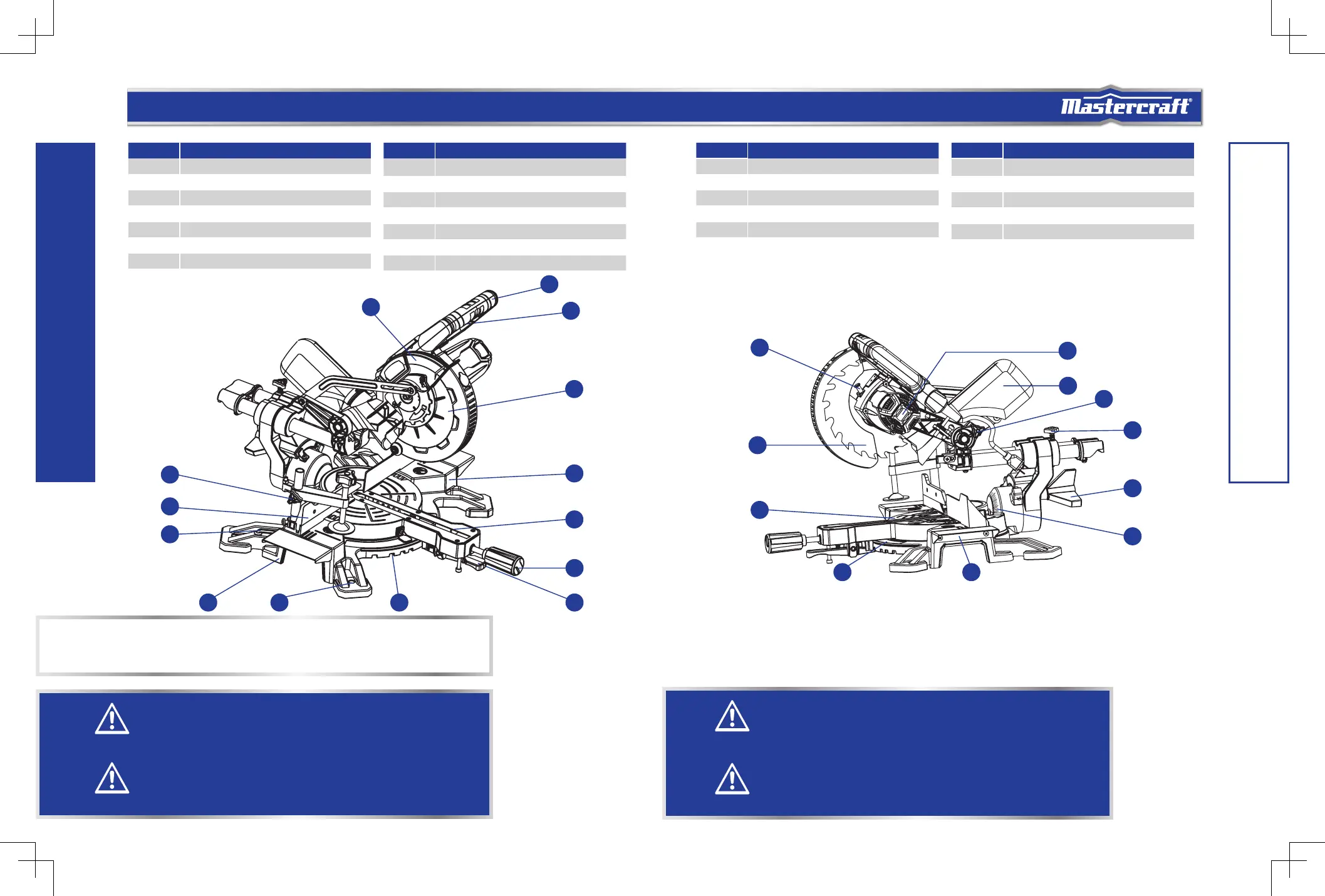

KEY PARTS DIAGRAM
NOTE:
Before attempting to use your saw, familiarize yourself with all of the operating features and
safety requirements.
No. Description
1 Switch handle
2 Trigger switch with lock-off lever
3 Upper blade guard
4 Lower blade guard
5 Base
6 Table insert
7 Mitre handle
No. Description
8 Mitre stop locking lever
9 Positive mitre stop
10 Mounting hole
11 Hex key for blade
12 Fence
13 Work clamp
14 Handhold for transportation
WARNING!
Carefully remove the tool and any accessories from the box. Make sure that all items listed in
the packing list are included. Inspect the tool carefully to make sure that no breakage or damage
occurred during shipping.
WARNING!
Do not discard the packing material until you have carefully inspected and satisfactorily operated
the tool.
KEY PARTS DIAGRAM
No. Description
15 Spindle lock
16 Blade
17 Motor
18 Dust bag
19 Lock-down pin
20 Sliding carriage lock knob
No. Description
21 Bevel lock knob
22 Bevel scale
23 Table
24 Mitre scale
25 Extension table
WARNING!
Your saw should NEVER be connected to the power source when you are assembling
parts, making adjustments, installing or removing blades, cleaning, or when it it not in use.
Disconnecting the saw will prevent accidental starting, which could cause serious personal injury.
WARNING!
Do not allow familiarity with the mitre saw to cause a lack of alertness. A fraction of a second of
carelessness is enough to cause severe injury.
1
2
4
5
6
7
8
9
14
3
12
13
11
10
15
16
23
24 25
17
18
19
21
22
20
