MasterCraft 058-8386-8 User Manual

OFF
2
AIR COMPRESSOR 11-GALLON (41.6 L) - 058-8386-8AIR COMPRESSOR 11-GALLON (41.6 L) - 058-8386-8

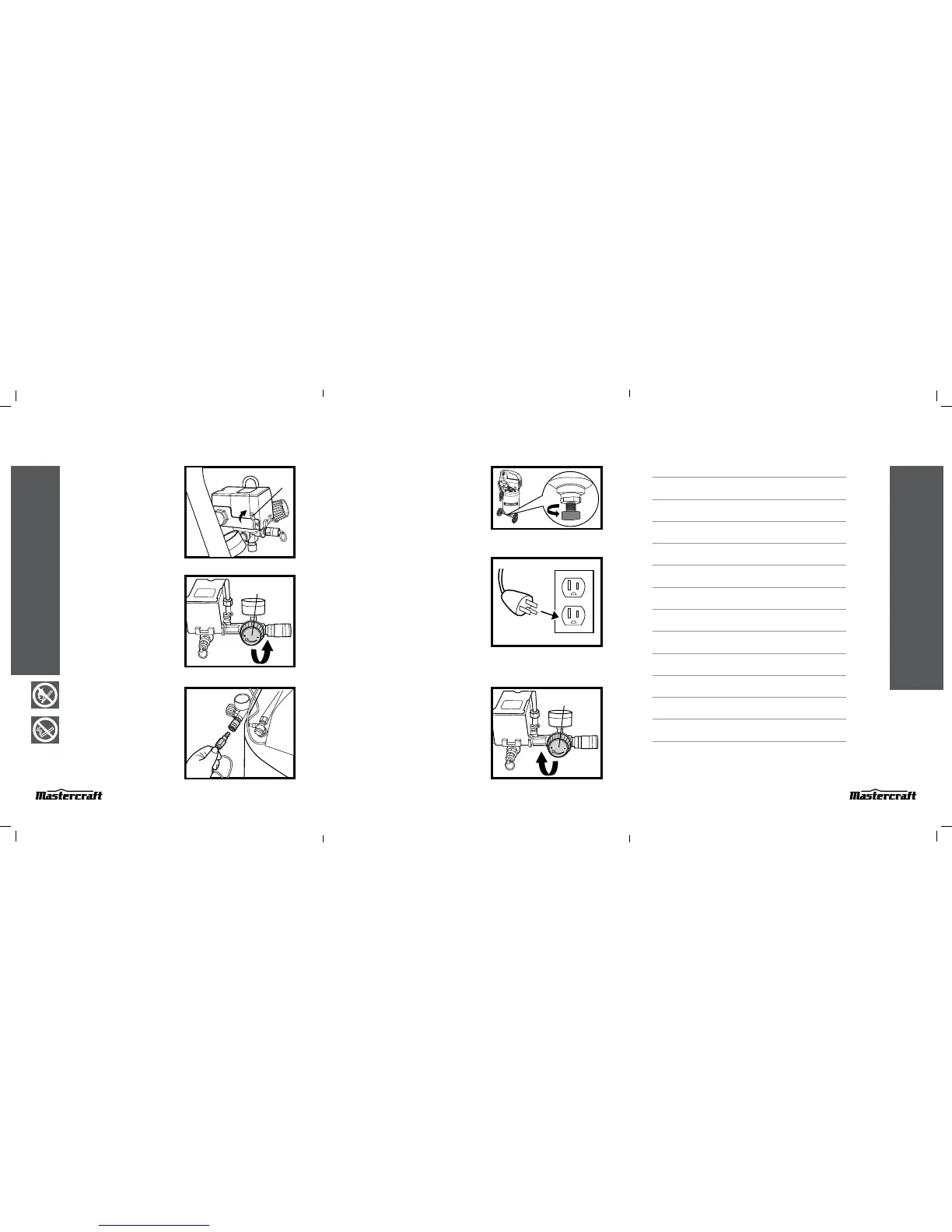

STEP 1
Set the pressure switch to the
OFF position.
STEP 2
Turn the air pressure regulator
knob counter-clockwise until
it stops.
STEP 3
Attach hose and accessories (not
provided).
Apply plumber's tape on all the
threads to prevent air leakage.
STEP 5
Plug in the power cord.
Caution: Connect the power
cord only after break-in
process has been competed,
otherwise motor might get
damaged (see Breaking-in the
pump, page 14).
STEP 4
Close the tank drain valve,
located on the bottom of the air
tank.
TABLE OF CONTENTS
QUICK START GUIDE
TECHNICAL SPECIFICATIONS 3
SAFETY GUIDELINES 4 – 6
KEY PARTS DIAGRAM 7
KEY PARTS LIST 8 – 9
INTENDED USE 10 – 11
ASSEMBLY 12 – 13
OPERATING INSTRUCTIONS 14 – 17
MAINTENANCE 18 – 19
TROUBLESHOOTING 20 – 21
EXPLODED VIEW 22
PARTS LIST 23
WARRANTY 24 – 25
STEP 6
Set the pressure switch to the
ON position. Turn the air pressure
regulator knob clockwise until
desired pressure is reached.
QUICK START GUIDE
CLOSE
CLOSE
OPEN
