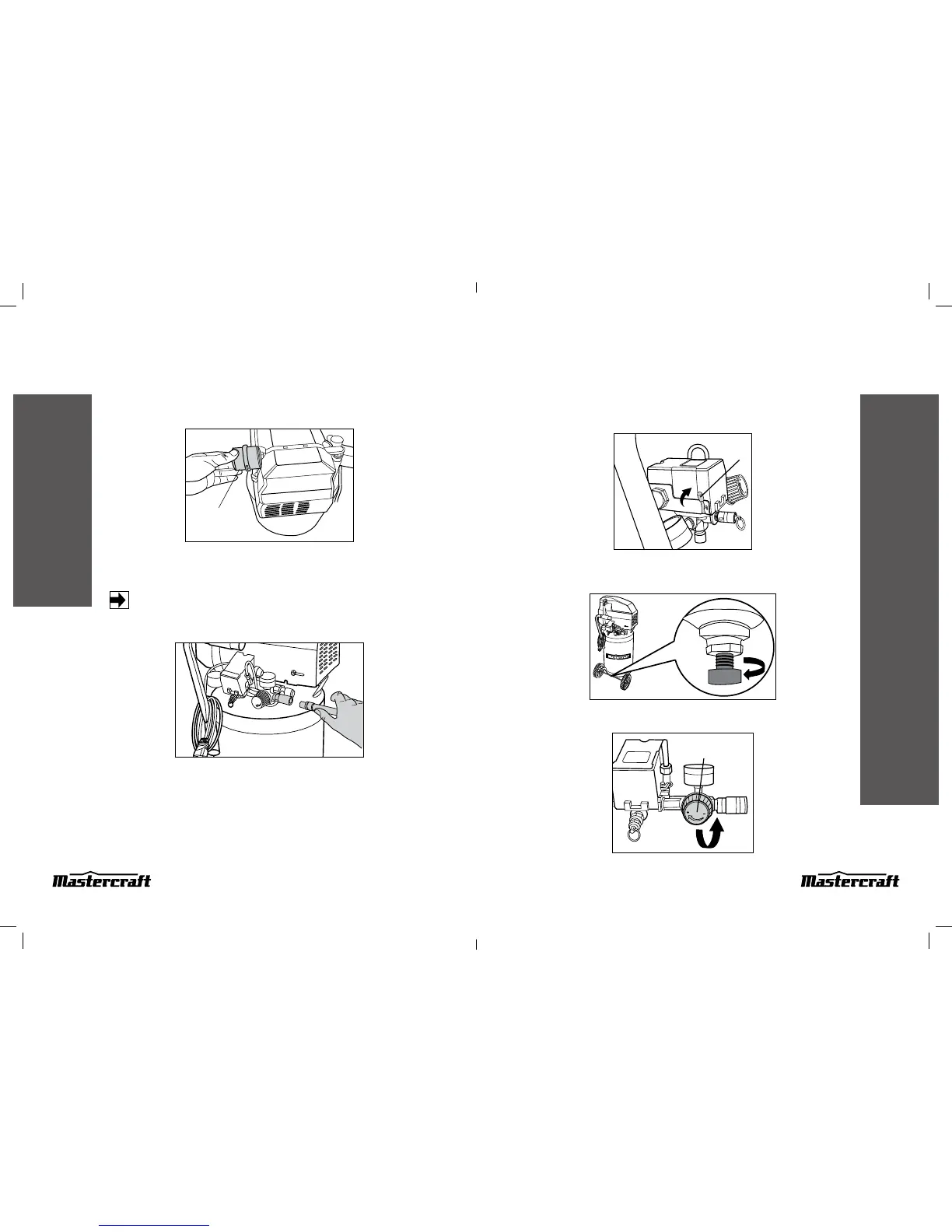

4. Air filter assembly
• Screw the air filter onto the pump.
Air filter
5. Connect air hose to compressor
NOTE: ¼" (6.4 mm) NPT air hose is required for connecting to the air compressor.
• Connect air hose (not provided) to the compressor’s air outlet (H).
Breaking-in the pump
1. Set the pressure switch (C) to the OFF position.
OFF
2. Open the tank drain valve (I) by turning it counter-clockwise to permit the air to escape and
prevent air pressure build-up in the air tank during the break-in period.
OPEN
3. Turn the air pressure regulator knob (E) counter-clockwise until it stops.
CLOSE
ASSEMBLY
OPERATING INSTRUCTIONS
