MasterCraft 55-3559-4 User Manual

Installation of Disc-Sander Table Assembly
1. Locate table support and (3) hex head screws, washers and locking washers in loose parts
bag.
2. Place table top-down on a at surface.
3. Position table support against table bottom, aligning holes on support with pre-drilled holes in
table.

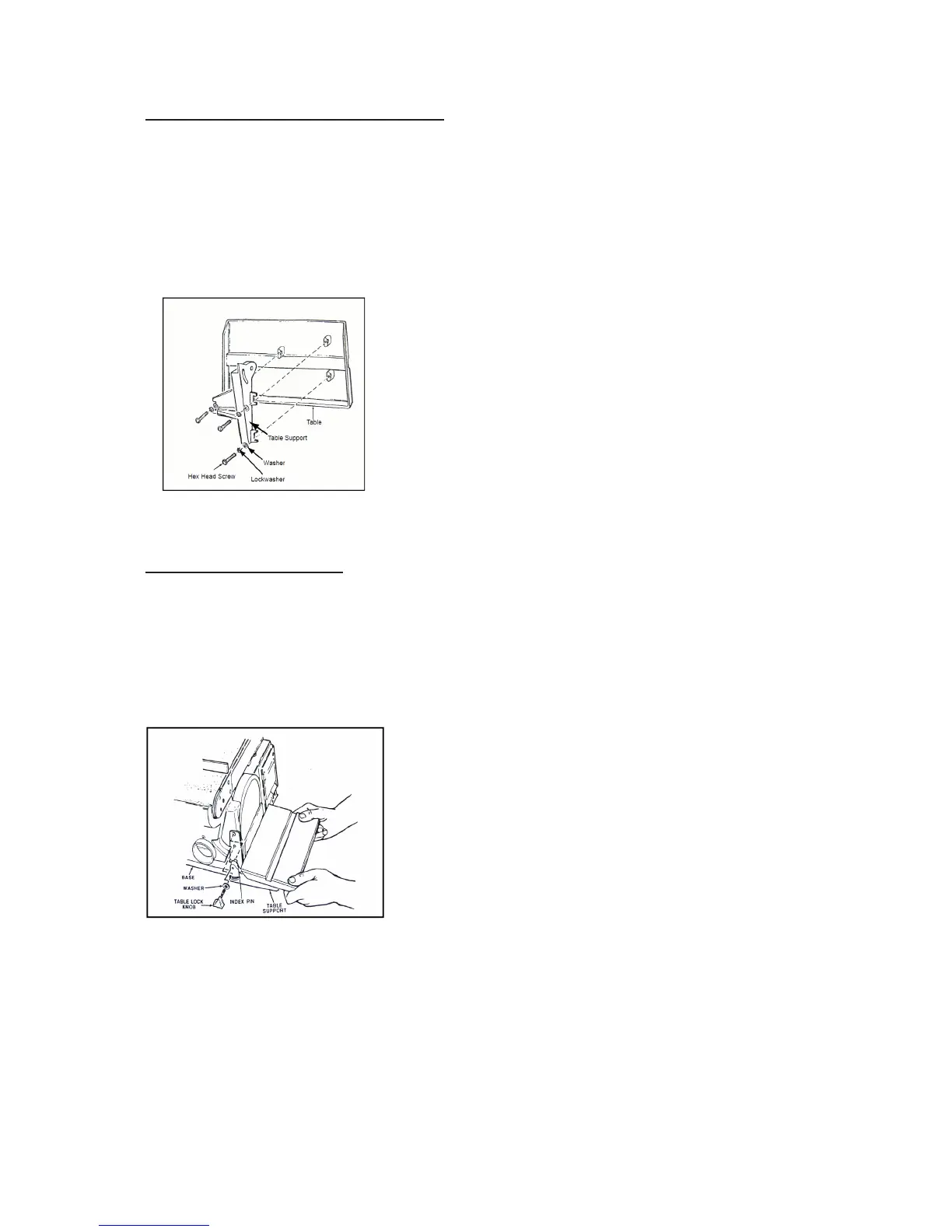

4. Fasten table support to table using the hex head screws, washers and locking washers, as
shown.
Mounting of Table Assembly
1. Locate table-lock knob and washer in parts bag.
2. Position table-support bracket so that “index pin” ts into corresponding hole on sander frame
and semi-circular hole aligns with threaded hole in frame.
3. Place washer on threaded shaft of table-lock knob, insert through semi-circular slot, and
tighten into threaded hole.
4. Adjust table to level or to angle desired for sanding.
