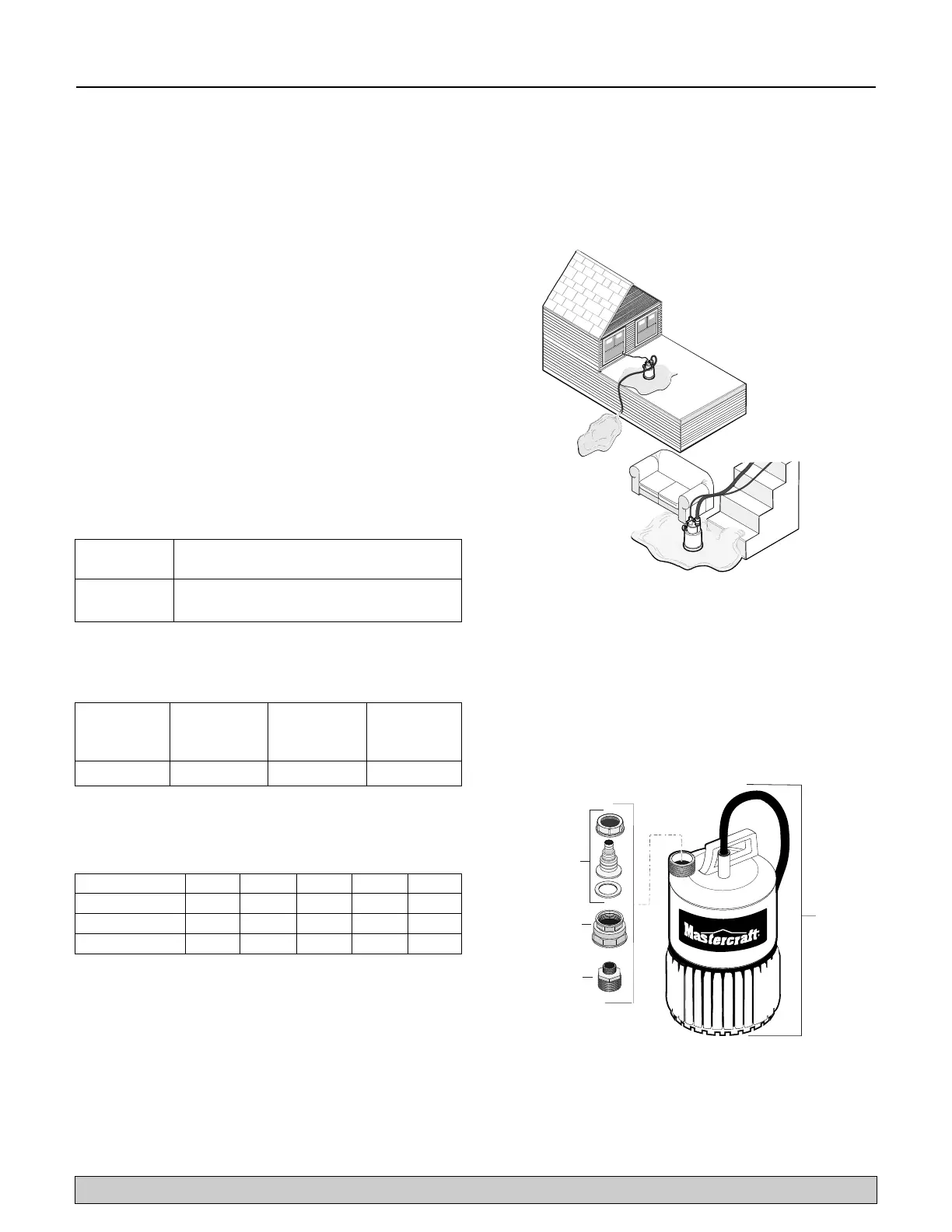

General Information / Installation 3
DESCRIPTION
This submersible pump is designed for use as a utility
pump. Unit is equipped with a 3-prong grounding-type
power cord. Ball bearings on the motor shaft never need
lubrication. Automatic reset thermal protection.
SPECIFICATIONS
Power supply required..................................115 V, 60 Hz
Motor duty.......................................................intermittent
Liquid Temp. Range...............................0–25°C (32–77°F)
Individual Branch Circuit
Requirement (minimum) ............................................15 A
NOTICE: Not designed for applications involving salt
water or brine! Use with salt water or brine will void
warranty.
Pump water only with this pump.
NOTICE: Not for use in water where fish are present.
INSTALLATION
1. Install the pump on a hard level surface. Make sure
that the pump cannot pick up rocks, mud and debris,
etc. If neccesary, put a block under the pump to raise
it slightly. See Fig. 1.
2. Protect the power cord from damage. Uncovered
cords should be routinely inspected for damage or
deterioration. DO NOT operate the pump if the cord
is damaged.
3. Choose an adaptor and install it as indicated in
Fig. 2.
CUSTOMER HOTLINE: 1-877-455-5508
Figure 2: Adaptor connections.
Pump
Model No. Included Adaptors
62-3515-0
1 1/4” FBSP X 1” FNPT
1” MNPT X 3/4” garden hose
DISCHARGE FITTINGS CHART
ELECTRICAL SPECIFICATIONS
PUMP CAPACITY
Motor Minimum Pumps
Motor Full Load Circuit Down
H.P. Amps Req. (Amps) To
1/6 1.5 15 7/16” (11 mm)
Head in feet 0 5 10 15 20
Head in metres 0 1.5 3.1 4.6 6.1
Litres/minute 76 63 43 25 0
Gallons/minute 20 17 11 7 0
