Installation/Operation/Parts
For further operating,
installation, or maintenance assistance:
CONSUMER HOTLINE: 1-877-455-5508
CTC842 (8/27/09)
MD

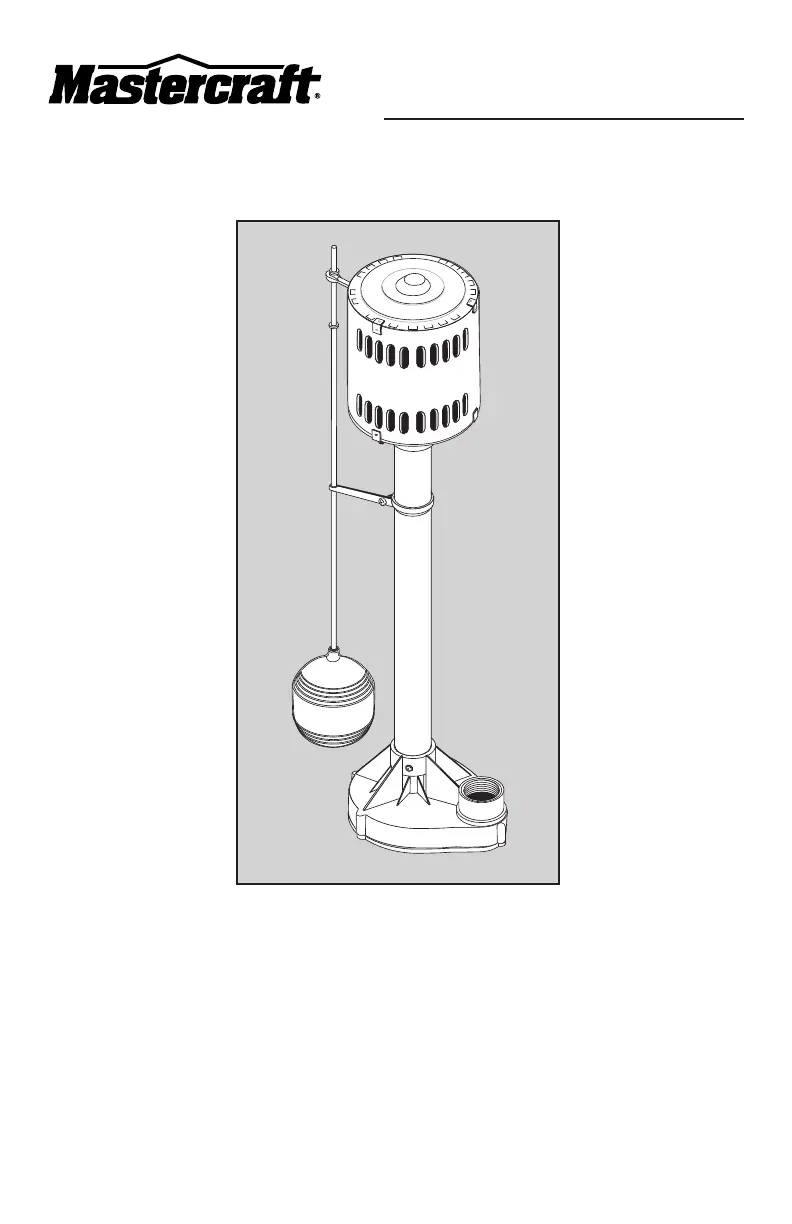

OWNER’S MANUAL
Pedestal Sump Pump
62-3510-0

Questions and Answers

  • L
    Leah BurkeAug 5, 2025
    What to do if my MasterCraft Water Pump motor runs but doesn't pump?
    • L
      Lynn BushAug 5, 2025
      If the motor of your MasterCraft Water Pump runs but the pump doesn't pump, consider the following: * **Inlet clogged:** Inspect the inlet and clean it if necessary. * **Discharge line plugged:** Clear the discharge line and check the valve for any obstructions. * **Low line voltage:** Refer to the corrective action for low line voltage. * **Pump airlocked:** Drill a 1/8" (3.2mm) hole in the discharge pipe just above the pump body but below the check valve. * **Broken impeller or shaft:** Replace the impeller or shaft as needed.
  • F
    Francisco ParksAug 17, 2025
    What to do if my MasterCraft Water Pump will not stop running?
    • M
      Mary NunezAug 17, 2025
      If your MasterCraft Water Pump won't stop running, it could be due to: * **Debris around float or float rod stuck:** Remove any debris from the sump. Check that the float isn't rubbing against the sump wall or the float rod isn't rubbing or stuck against the sump cover. * **Faulty automatic switch:** Replace the switch.
  • A
    Amanda Kim MDAug 23, 2025
    Why does my MasterCraft 62-3510-0 Water Pump start and stop too often?
    • S
      Stacy SmithAug 23, 2025
      Your MasterCraft Water Pump might start and stop too often due to: * **Improper positioning of float rod stop:** Lower the float rod stop. * **Faulty automatic switch:** Replace the automatic switch.
  • T
    Tyler CooperAug 29, 2025
    How to fix a noisy MasterCraft 62-3510-0?
    • R
      rayangelaAug 29, 2025
      A noisy MasterCraft Water Pump could be due to: * **Improper installation:** Refer to No. 5 in Installation Instructions. * **Noisy motor:** Replace the pump.
  • M
    Martin BrewerNov 9, 2025
    What to do if my MasterCraft Water Pump motor will not start or run?
    • M
      Matthew AndersonNov 9, 2025
      If your MasterCraft Water Pump motor won't start, there could be several reasons: * **No electrical power:** Check the fuse, circuit breaker, power cord, and electrical outlet. * **Low line voltage:** Check the wiring size from the main source. If it's under the recommended minimum, contact the Electric Company or local Hydro authority. * **Faulty automatic switch:** Operate the switch manually and replace it if it's inoperative. * **Float or float rod stuck:** Ensure the float isn't rubbing against the sump wall or the float rod isn't rubbing or stuck against the sump cover. * **Waterlogged float:** Replace the float if it's filled with water. * **Motor overload tripped:** Check the inlet screen to ensure the impeller isn't jammed. If it is, free the impeller of any obstructi...

Summary

Warranty

Limited Warranty

Details the manufacturer's warranty for products against defects in material and workmanship.

General Terms and Conditions

Outlines warranty exclusions, liabilities, and legal rights related to product defects.

Safety

Description

Overview of the pedestal sump pump's design and intended home sump applications.

Specifications

Details technical specifications including power, horsepower, temperature range, and discharge size.

Performance

Presents pump performance data in Gallons Per Hour (GPH) at various total head measurements.

General Safety

Covers essential safety guidelines for operating and maintaining the sump pump, including electrical and fire hazards.

Installation

Sump Pit and Pump Setup

Guidelines for sump pit preparation, pump placement on a level foundation, and pit cleaning.

Discharge Piping and Float Adjustment

Instructions for connecting the discharge pipe, reducing noise, and setting the float rod for pump activation.

System Integration and Safety Checks

Covers electrical requirements, freeze protection, check valve installation, and thermal protector warnings.

Operation

Troubleshooting

Repair Parts

MasterCraft 62-3510-0 Specifications

General IconGeneral
Maximum Head Lift25 ft
Max Head25 ft
Power SourceElectric
Voltage120 V
Power Cord Length6 ft
Flow Rate1800 GPH
