Troubleshooting / Repair Parts 5

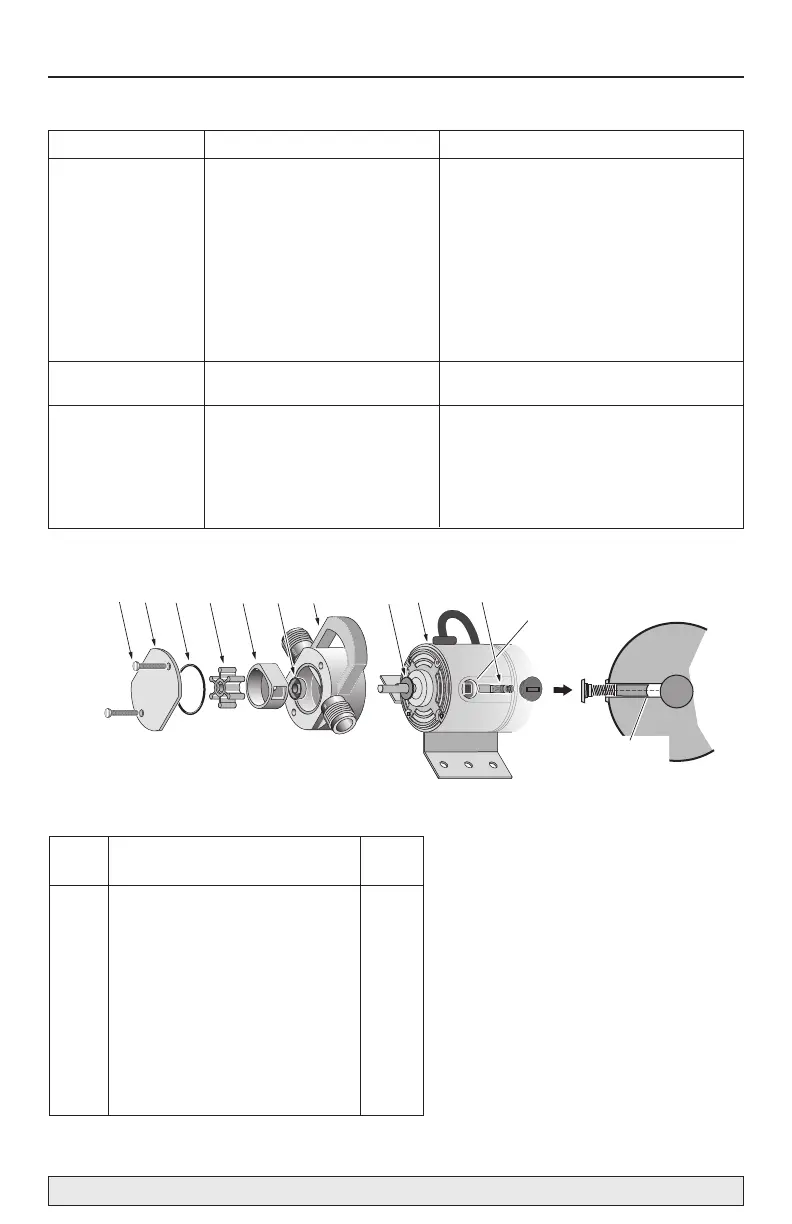

Pump Head Assembly No. RP4940-22
includes Key Nos. 1 through 7.
Service Kit No. FP003414S-01
includes 1 each of Key Nos. 3, 4,
and 6.
Brush Kit No. FP003415S
includes a pair of replaceable brushes,
springs, and caps, Key No. 10.
Pud-L-Scoop
TM
No. FP000349A
includes the Pud-L-Scoop
TM
, and a 6’
garden hose with washer.
Key Part
No. Description Qty.
1 10-32x1-3/4 Phil. Hd Screw* 2
2 End Cover / Wear Plate 1
3 O-Ring 1
4 Impeller 1
5 Insert 1
6 U Cup Seal 1
7 Pump Body 1
8 Slinger 1
9 Motor** 1
10 Motor Brush and Spring Set 1 Pair
* Standard hardware item; purchase locally.
** If motor fails, replace entire pump.
Brush Installation
SYMPTOM PROBABLE CAUSE(S) CORRECTIVE ACTION
Pump stops without Pump has overheated and thermal Wait for overload to reset; pump will
warning overload has tripped automatically restart
Discharge hose too long or Use shorter hose or reduce lift
discharge lift higher than 28’
Pump Won’t Prime Pump body not oiled Add oil through inlet port (see Page 3)
Suction hose too long or Use 1/2
" Suction hose, 25’ long or less
too small (the shorter the hose, the better)
Worn impeller Replace impeller
Suction leaks Replace hose washer, check for leaks in hose
Suction hose kinked or coiled Straighten out suction hose
Pump leaks Shaft U-cup seal leaks Replace shaft seal
Cover O-Ring leaks Replace cover O-Ring
Pump runs, pumps Worn impeller Replace impeller
little or no water
Bad motor brushes Replace motor brushes
Bad U-cup shaft seal Replace shaft seal
(pump will leak)
Suction or discharge hose Straighten out hose
kinked or coiled
TROUBLESHOOTING CHART
MODEL 62-3566
REPAIR PARTS
