AIR-POWERED GRAVITY-FEED SPRAY GUN KIT 058-9311-0
Note: Use a piece of cardboard as a shield to
capture the loss of spray paint at the ends of
the workpiece to protect other surfaces from
being painted.
6. The speed of stroke, the distance from
work surface, and the adjustment of the
paint adjusting knob vary the amount of
paint being applied.
N
ote: Two proper and uniform thin coats of paint, rather than one thick layer, will yield better results
and have less chance of runs.
DO’S DON’TS

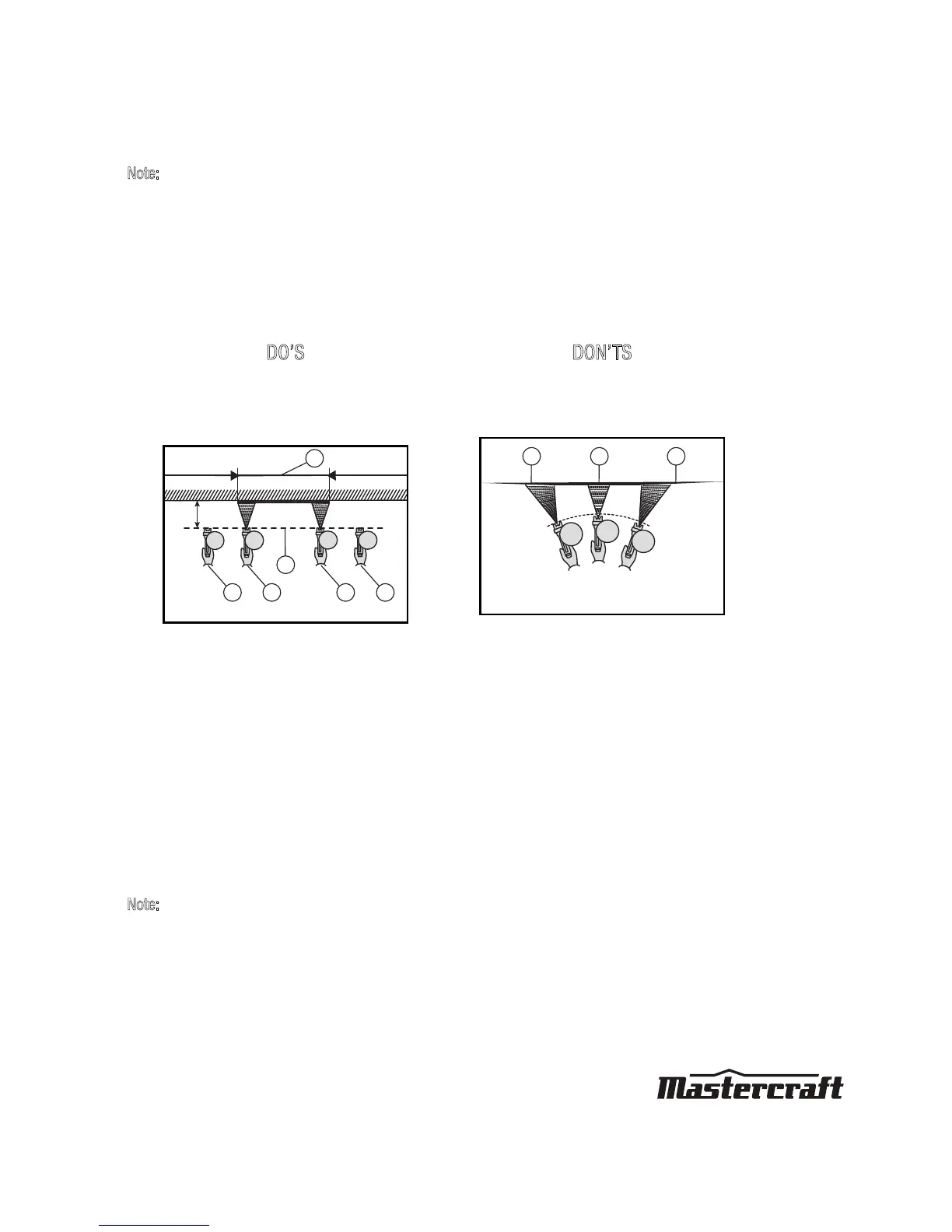

Always move the gun in a parallel direction.
1. Uniform coating region
2. Stroke starting position
3. Trigger pressing position
4. Trigger releasing position
5. Stroke stopping position
6. Gun movement path
Do not press the trigger with the gun at an
inclined position.
1. Improper/thin coating region
2. Uniform/thick coating region
MC-OM-16
2 3 4 5
6
1
6" - 12"
