ASSEMBLY INSTRUCTIONS
14
MIG/FLUX-CORE WIRE FEED WELDER KIT 058-8195-2
Assembly Instructions

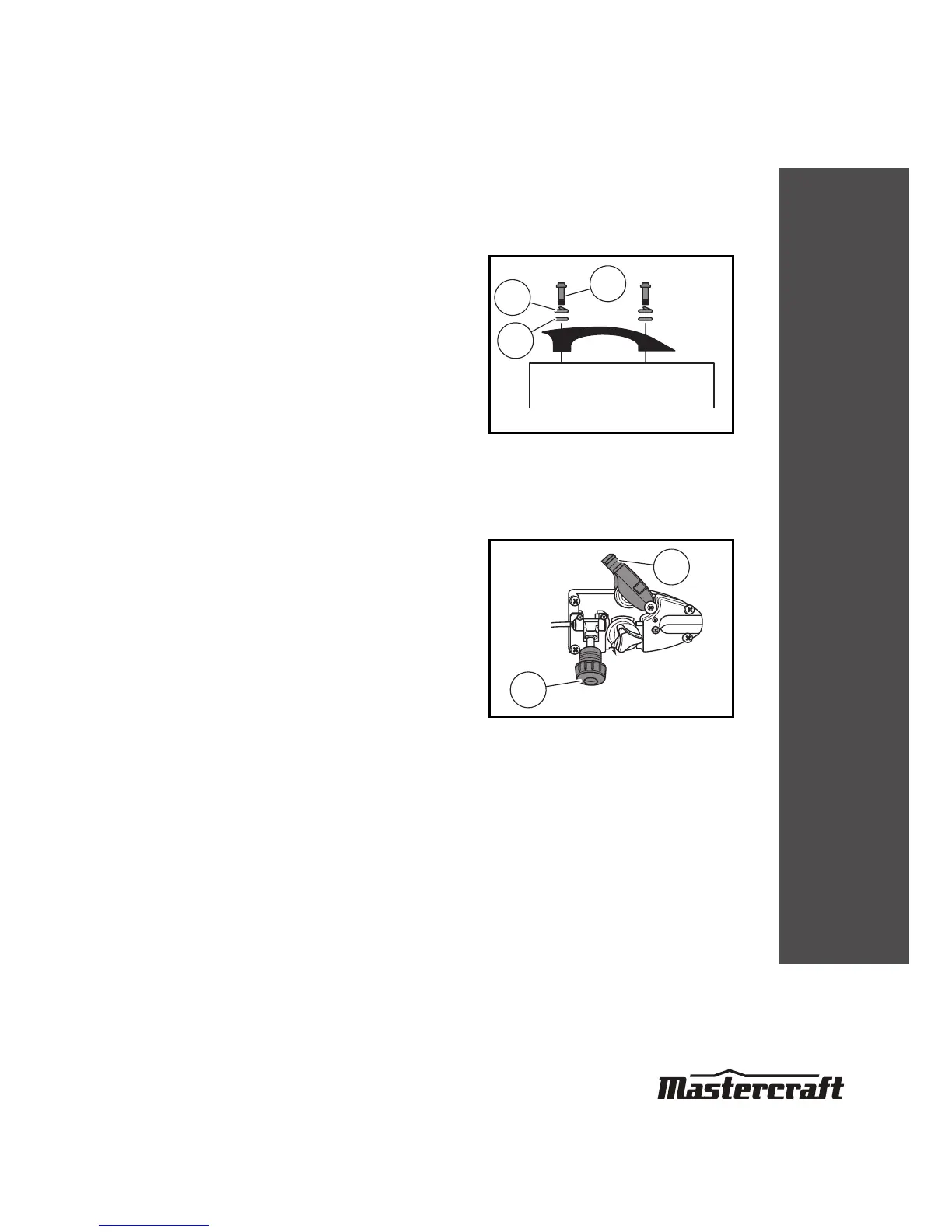

Installing the handle:
1. Line up the holes in the handle with the
holes on the top of the welder.
2. Place a lock washer (1) and a washer (2)
onto the welder handle screws.
3. Insert a screw with the washers through
the holes on the handle and into the top
of the welder, and tighten the screw
(fig A) .
Installing the wire roller:
1. Open the wire drive compartment.
2. Remove the drive tension by loosening
the drive tension adjusting knob (1) and
lifting the drive tension adjustor and
drive tension arm (2) away from the
drive roller
(fig B) .
3. Put an end of the wire into the hole on
outside edges of the wire spool and
bend it over to hold the wire in place.
Remove the wire spool from the wire
drive compartment.
Note: If the wire is already installed in the welder, roll the wire back onto the wire spool by manually
rotating the wire spool clockwise. Do not allow the wire to come out of rear end of the inlet guide
tube.
2
3
MC-588195-02
fig A
1
fig B
2
1
MC-588195-03
