ASSEMBLY INSTRUCTIONS
16
MIG/FLUX-CORE WIRE FEED WELDER KIT 058-8195-2
Installing the wire:
Select the type of wire using the following table:

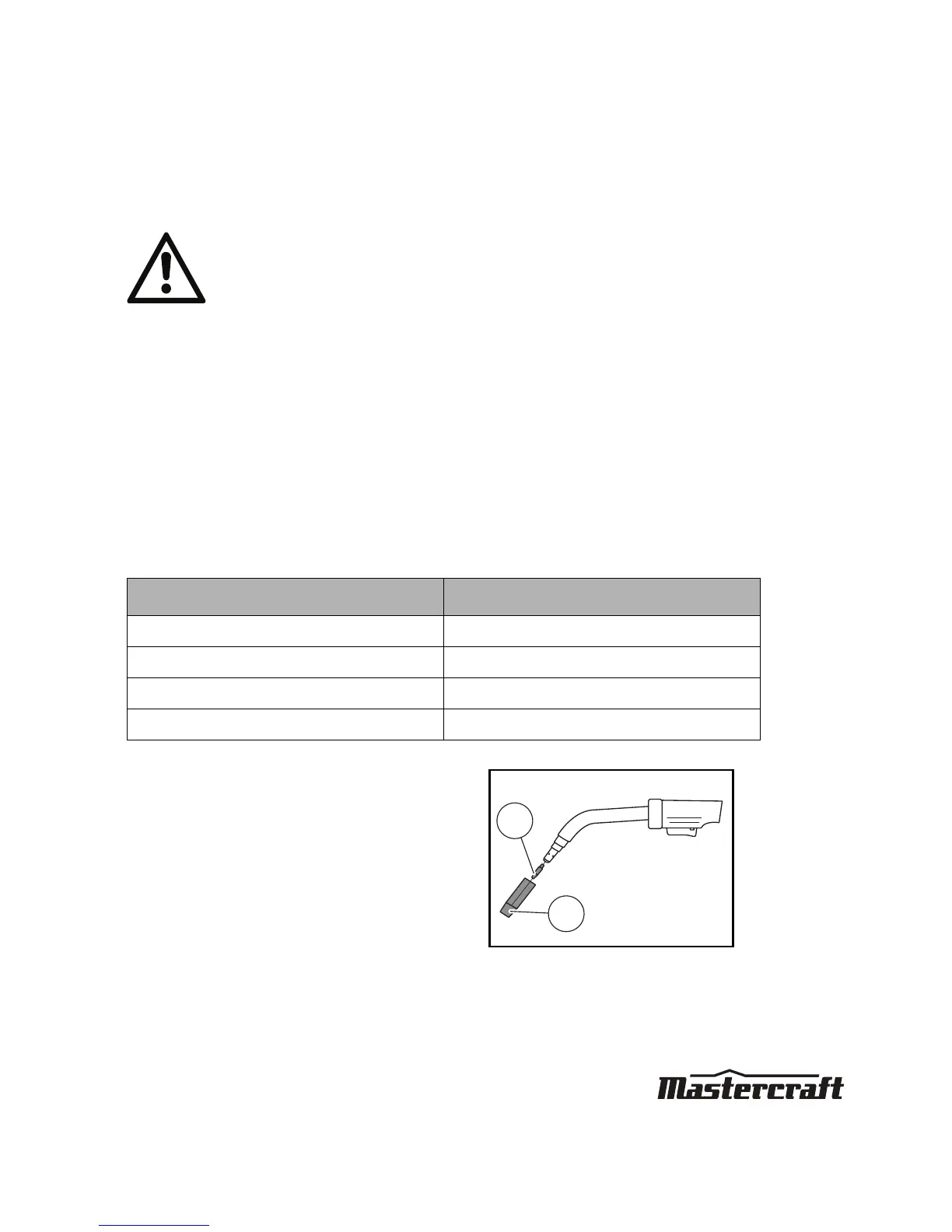

1. Remove the nozzle (1) and contact tip (2)
from the end of the torch assembly
(fig E)
.
2. Ensure proper groove on the drive roller
is in place for the wire to be installed.
3. Remove the packaging from the wire
spool and identify the leading end of the
wire secured on the edge of the spool.
Do not unhook it at this time.
WARNING!
Potential hazard that could result in serious injury or loss of life.
• Always switch off the power and unplug the power cord from the AC power
source before installing the wire.
• Remove any wire or wire spool that is rusty.
• Do not weld metal thinner than 18 gauge, as doing so may burn the metal.
• Before installing, remove any old wire from the MIG gun assembly to prevent
the wire from being jammed inside the gun liner.
• Use extreme caution when removing the welding nozzle, as the contact tip
on the welder is live whenever the torch trigger is pulled.
Wire Type
Availability
0.23" MIG wire Yes
0.30" MIG wire Yes
Flux Core wire 0.030" Yes
Flux Core wire 0.035" Yes
fig E
1
2
MC-588195-06
