MasterCraft MAXIMUM 054-1232-4

13
12
model no. 054-1232-4 | contact us 1.800.689.9928
IMPORTANT INFORMATION
Before attempting to use this orbital jigsaw, become familiar with all of its
operating features and safety requirements. For optimum performance and
safety, read the following operating instructions carefully before using the saw.
LED WORKLIGHT
Your orbital jigsaw has a built-in LED worklight for illuminating the cutting area.
To activate the LED worklight, plug in your orbital jigsaw. The LED worklight
turns on automatically when the tool is plugged in to a power source.

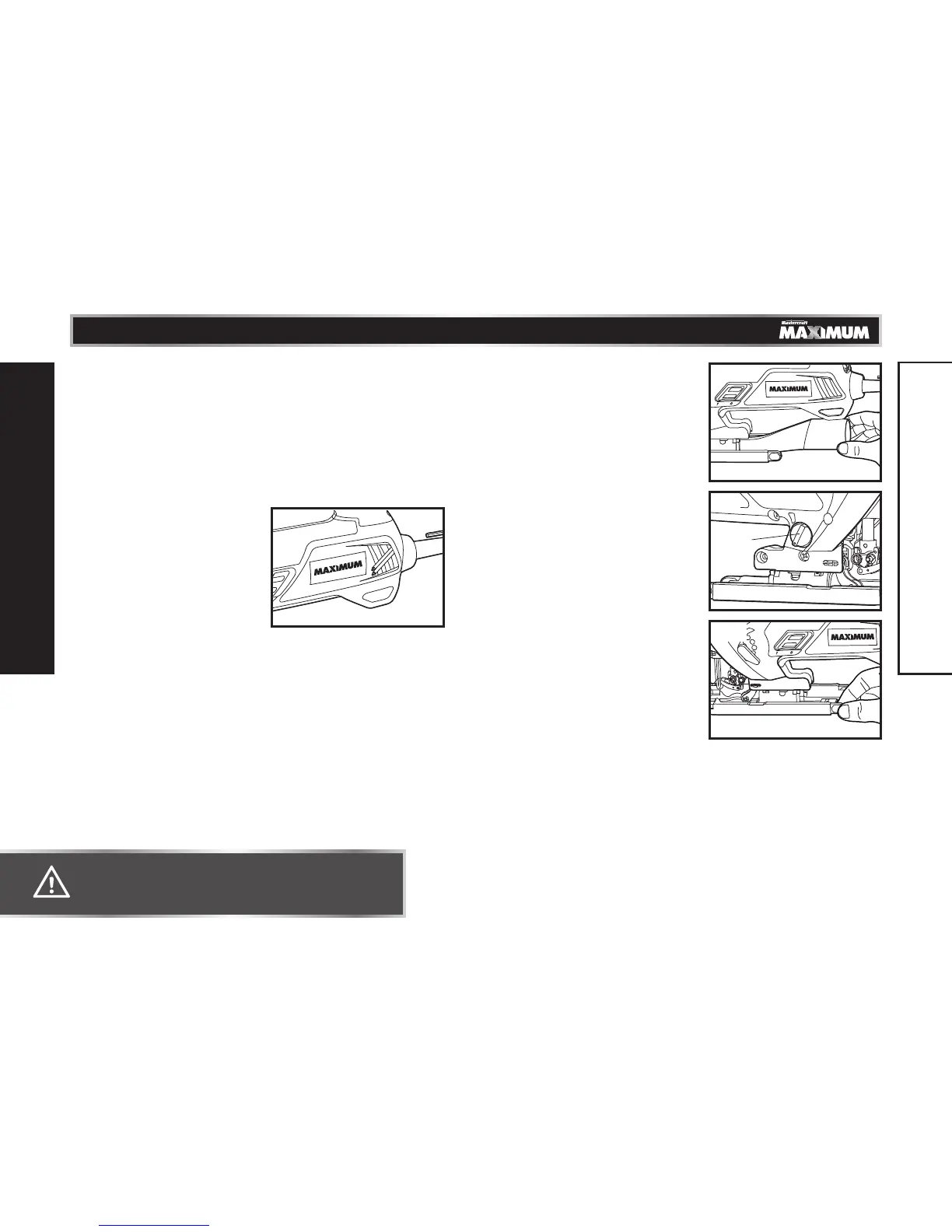

LED “LIVE TOOL INDICATOR” LIGHT (g1)
Your orbital jigsaw has a green LED “live
tool indicator” light, located where the
power cord enters the handle. This light
turns on automatically when the saw is
plugged into a power source.
2-WAY SAWDUST REMOVAL
Your orbital jigsaw is equipped with a
2-way sawdust removal system. Push
the vacuum/blower knob to blow debris
away from the cutting area, or attach the
vacuum adapter (fig 2) to a wet/dry vac
hose with a 1 1/2" (38 mm) adapter, all
sold separately.
1. Unplug the saw.
2. Switch the vacuum/blower knob to
the “BLOWER” position in order to
blow sawdust, metal and plastic chips
away from the cutting area.
3. Switch the vacuum/blower knob (fig 3)
to the “VACUUM” position. Connect the
saw’s vacuum adapter to a standard
wet/dry shop vac (sold separately) in
order to vacuum up sawdust, metal and
plastic chips.
ON-BOARD BLADE STORAGE (g4)
A convenient feature on the saw is the
blade storage compartment. The blade
storage compartment is located on either
side of the shoe. To open: pull the blade
storage cover out. To close: push the
cover in with your thumb or finger.
IMPORTANT INFORMATION
IMPORTANT INFORMATION
WARNING!
• Do not allow familiarity with the orbital jigsaw to cause a lack
of alertness. A fraction of a second of carelessness is enough to
cause severe injury.
FPO
g1
g2
g4
g3
Blower
switch
