ASSEMBLY INSTRUCTIONS
27
MIG 180 INVERTER WELDER 058-9306-4

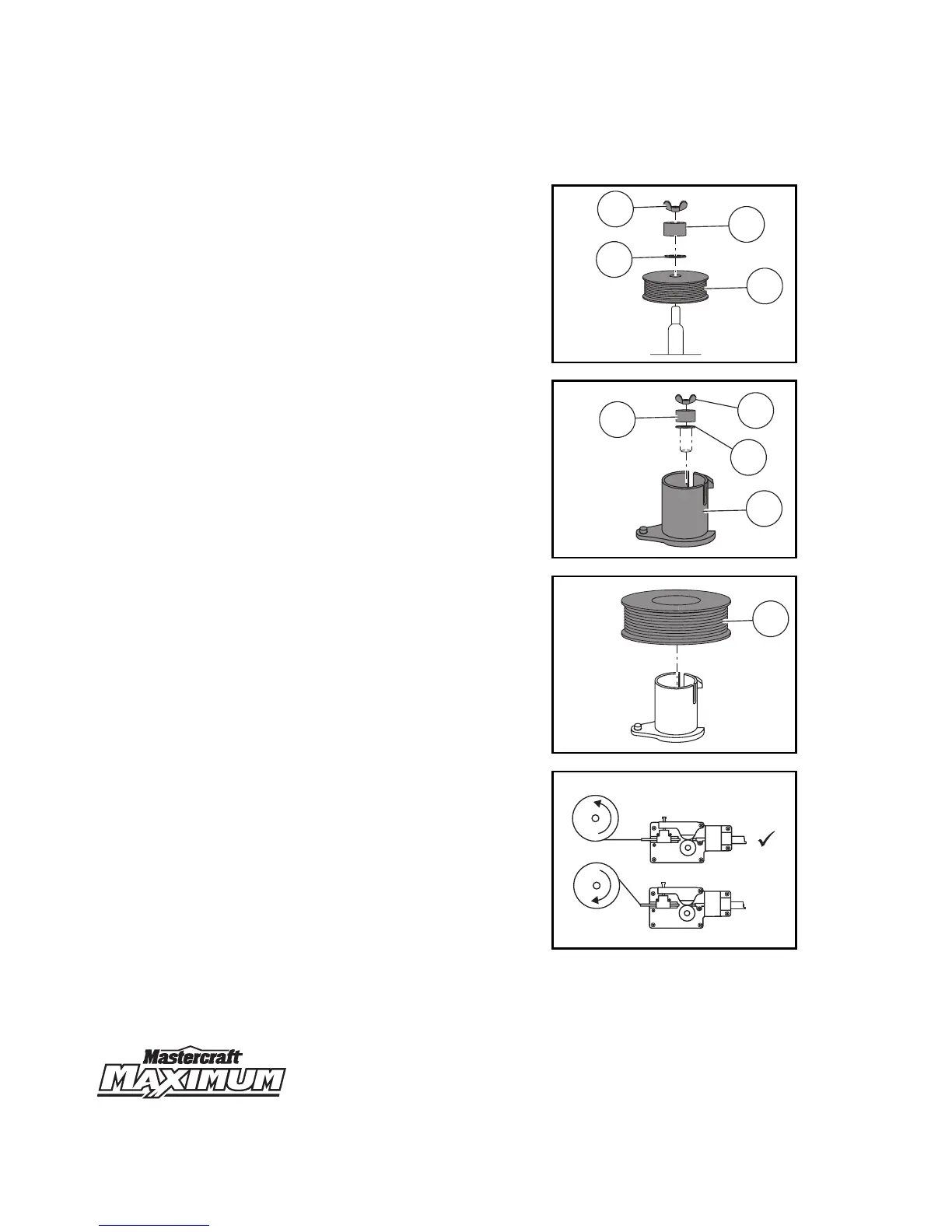

4" spool installation
4. Slide a 4" spool (1) on the hub and
secure the washer (2), bushing (3) and
the wing nut (4) sequentially
(fig 1Z).
Go
to step 7
.
Note: Ensure the spool is not firmly tightened.
It should be able to move easily.
8" spool installation (optional)
5. Slide an 8" spool adaptor (1) on the hub
and secure the washer (2), bushing (3) and
wing nut (4)
(fig 2A).
Note: Ensure the spool adaptor is not firmly
tightened. It should be able to move easily.
6. Slide the 8" spool over the adaptor
(fig 2B).
7. Place the spool on the hub with the wire
passing from the bottom of the spool into
the drive mechanism
(fig 2C)
.
fig 1Z
MC-589306-35
1
2
3
4
MC-589306-36
fig 2A
1
2
3
4
fig 2B
MC-589306-37
1
X
fig 2C
MC-589306-38
