Page 22

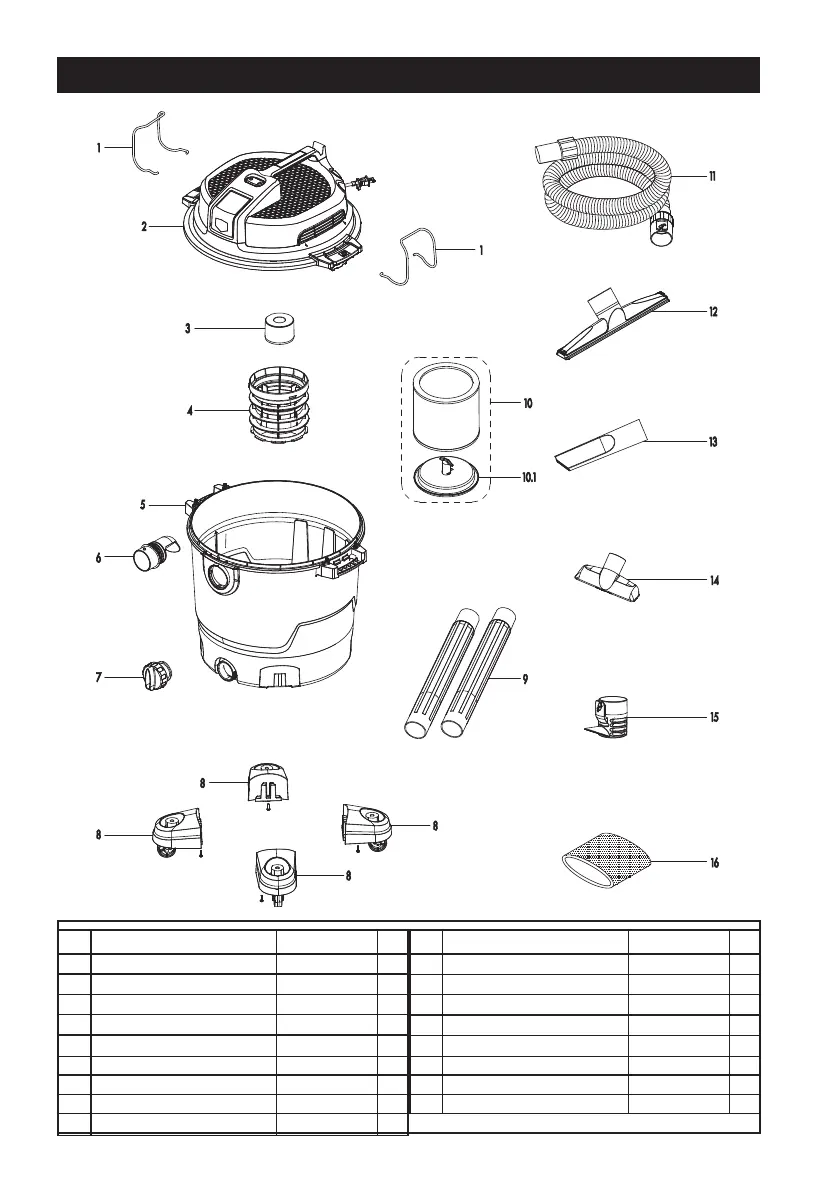

EXPLODED VIEW & PARTS LIST
Key Description Part # Qty
1 Hose Storage Rack 551006102 2
2 Power Head Assembly 1
3 Float 551006103 1
4 Filter Cage 551005104 1
5 Collection Tank 1
6 Vaccum Port Assembly 551007105 1
7 Drain Cap Assembly 551002110 1
8 Caster Foot Assembly 551007106 4
9 Extension Wand 551002116 2
Key Description Part # Qty
10 Cartridge Filter 551298116 1
10.1 Filter Retainer 551437107 1
11 Hose 551641101 1
12 Floor Brush/Squeegee Nozzle 551298107 1
13 Crevice Tool 551006113 1
14 Utility Nozzle 551006111 1
15
Noise Diffuser
551002117 1
16 Foam Wet Filter 551002118 1
To Next Page
