FIG. 7C
FIG. 7D
ASSEMBLY
Page 17
FIG. 7B

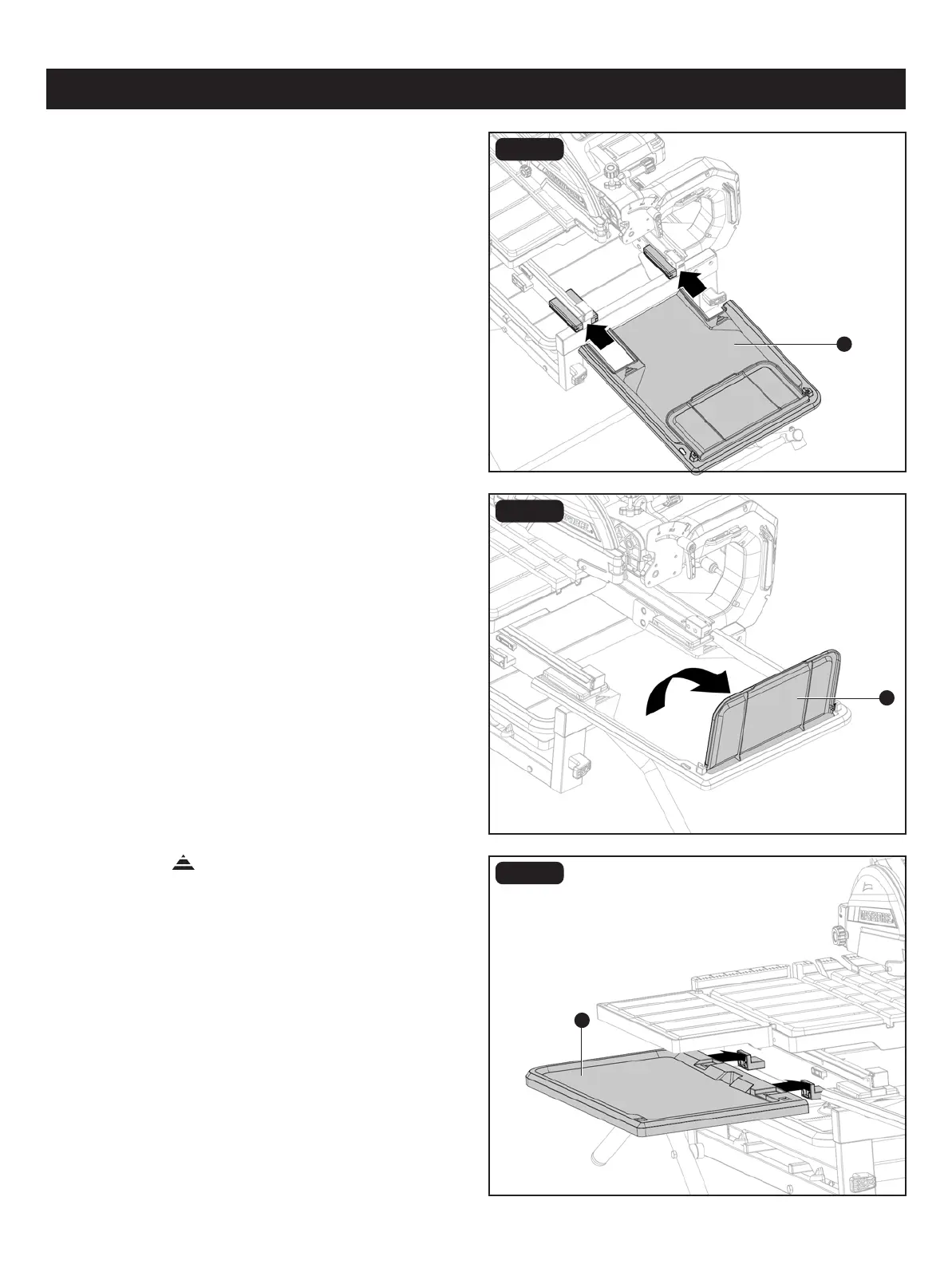

• Standing at back of tile saw, insert rear extension tray (J)
into grooves in water tray holder on the water tray frame.
• Rotate ap (QQ) on rear extension tray to vertical position.
• Align engraved on side extension tray A (H) with rail
hooks on frame and stand assembly. Slightly angle side
extension tray A. Lower down to hang on hooks.
C
J
H
QQ
To Next Page
