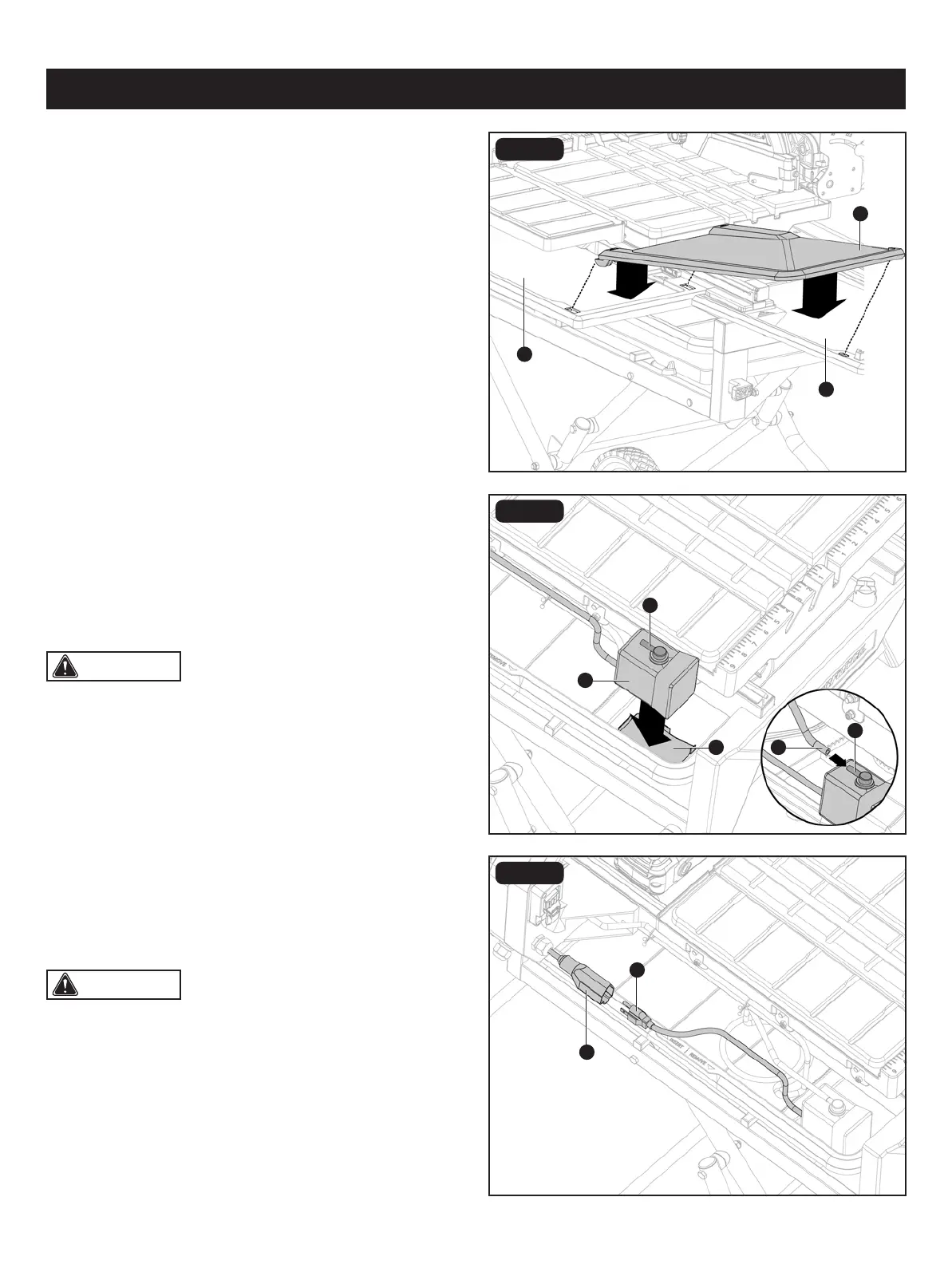

FIG. 7E
• Place the hooks on side extension tray B (I) into the
corresponding holes on side extension tray A (H). Lower
side extension tray B to a horizontal position and place
the hook on other end of the side extension tray B (I) into
the hole on the rear extension tray (J).
FIG. 8A
INSTALLING THE WATER PUMP
(Fig. 8A-8B)
• Place the water pump (K) into the pump basin (RR). Press
down rmly on the water pump to attach its suction feet
to the bottom of the water tray. Connect the clear tube
(KK) to the barbed hose connector tting (SS).
Page 18
ASSEMBLY
CAUTION: Make sure the tube doesn’t contact
the bottom of the table and interfere with table movement.
Adjust the position of the tube or water pump if necessary.
CAUTION: The receptacle is only connected with
the water pump.
K
KK
J
I
SS
UU
TT
SS
H
FIG. 8B
• Make sure your hands are dry and the tile saw is
unplugged. Push back rubber boot on the pump outlet
(TT) and plug pump power cord (UU) into outlet. Pull rubber
boot back into place to cover the connection and help
keep water off plug.
RR
To Next Page
