MasterForce 709-3932 - Making a Straight Cut

– 6 – – 7 –
STARTING AND STOPPING
1. Connect the unit to a power supply of the
correct voltage and frequency (120V-60HZ).
2. To start the saw press the switch to the
“ON” position (Fig 4).
3. To stop the saw, press the switch to the
“OFF” position (Fig 4)
FOR YOUR OWN
SAFETY, ALWAYS POSITION THE SWITCH
TO THE “OFF” POSITION WHEN THE SAW
IS NOT IN USE. IN THE EVENT OF A POWER
FAILURE, BLOWN FUSE OR TRIPPED CIRCUIT
BREAKER, PRESS SWITCH TO THE “OFF”
POSITION. THIS WILL PREVENT THE TOOL
FROM STARTING UP AGAIN WHEN THE
POWER COMES BACK ON.

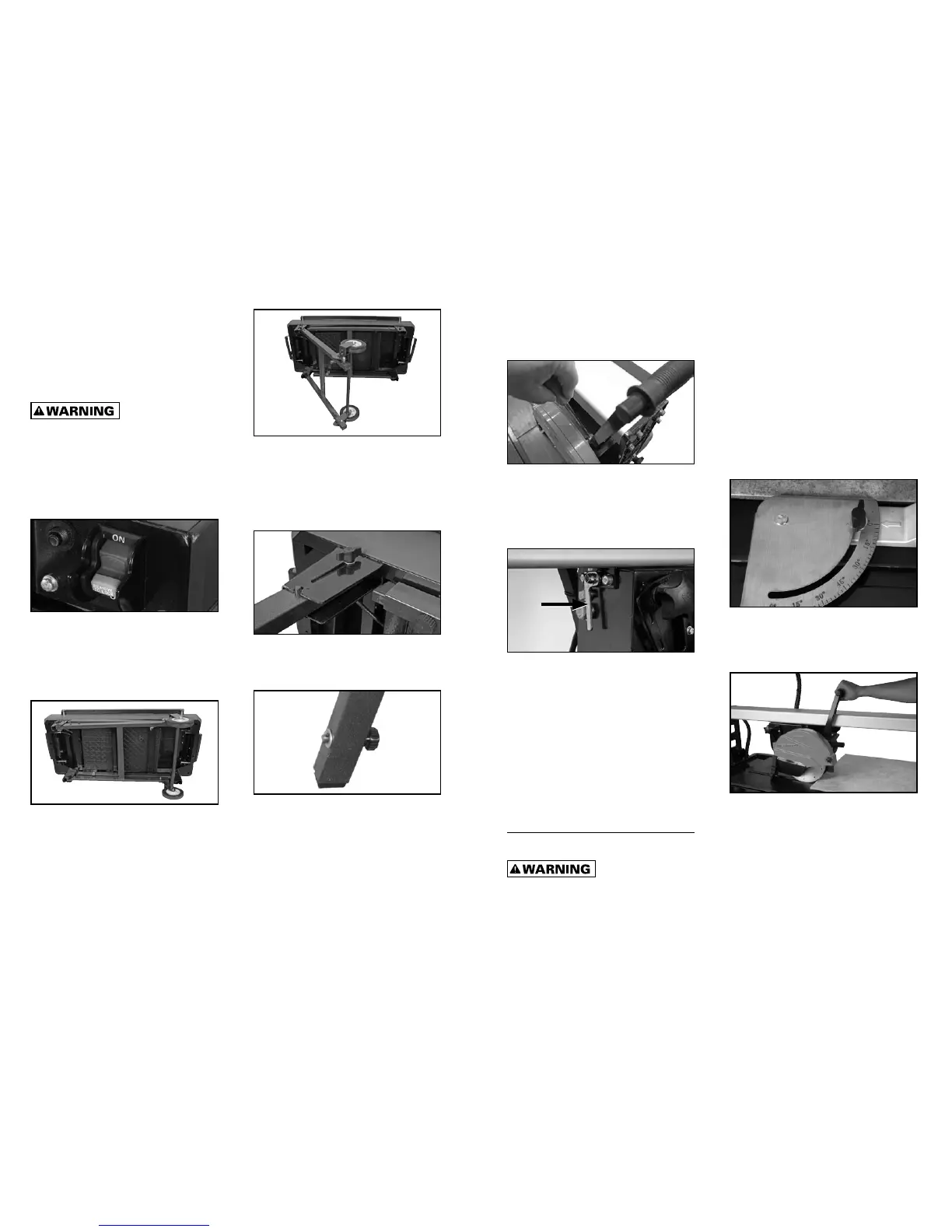

FIGURE 4
1. Clean the working area.
2. Remove saw from carton, you will find
it assembled.
3. Lay the saw on its side on the ground (Fig 5).
FIGURE 5
FIGURE 5-1
4. Pull out the stand legs (Fig 5-1).
5. Stand the saw upright.
FIGURE 5-2
6. Tighten thumb screw to secure legs (Fig 6).
FIGURE 6
7. Micro adjustment for perfect level.
8. To mount the handle position the handle on
the trolley and secure it using the 2 screws
(Fig 7).
FIGURE 7
9. The motor trolley is secured during
shipment, please loosen lever before using
(Fig 8).
FIGURE 8
FILLING THE WATER TRAY
AND DRAINING
1. Fill the tray with water between minimum
and maximum water line. Do not add
chemicals or detergents to the water.
2. To drain, remove the plug from the inside of
the tray, the water will flow out or you can
remove the tray and pour the water out
The tray can also be filled with the hose
attached under the water tray with a
gentle flow.
OPERATION
USE ONLY
CONTINUOUS RIM BLADES WITH THIS SAW.
DO NOT USE SEGMENTED, “TURBO” BLADES,
WOOD SAWING BLADES, BLADES WITH
OPENINGS, OR ANY OTHER CUTTING DEVICES
WITH THIS TILE SAW. USING THESE BLADES
COULD RESULT IN SERIOUS PERSONAL
INJURY AND DAMAGE TO THE SAW.
MAKING A STRAIGHT CUT
1. Push the motor trolley away from the
operator until it reaches the stroke limit.
2. Position the tile on the cutting table.
3. Properly set the measuring guide and
squaring tool (Fig 9).
FIGURE 9
4. Pull the motor trolley slowly towards the
material to be cut (Fig 10).
FIGURE 10
6. When you have completed the cut push
motor trolley/blade away and remove the
cut pieces, and any debris on cutting
surfaces.
