motor to move. When it appears that the saw is
out of alignment, it is the rip fence that needs to
be squared up.
Tools needed:
24” Framing Square, Phillips Screw Driver and
¼” Nut Driver or Pliers
The following steps should be used to align the
rip fence for the Bridge Saw:
1. Pull the power unit towards you and lock in
place with the transport screw.
2. Once the power unit is secured, place the
Framing square firmly against the blade on the
left side of the cutting surface. The square
must be flush with the blade. (See Image A).

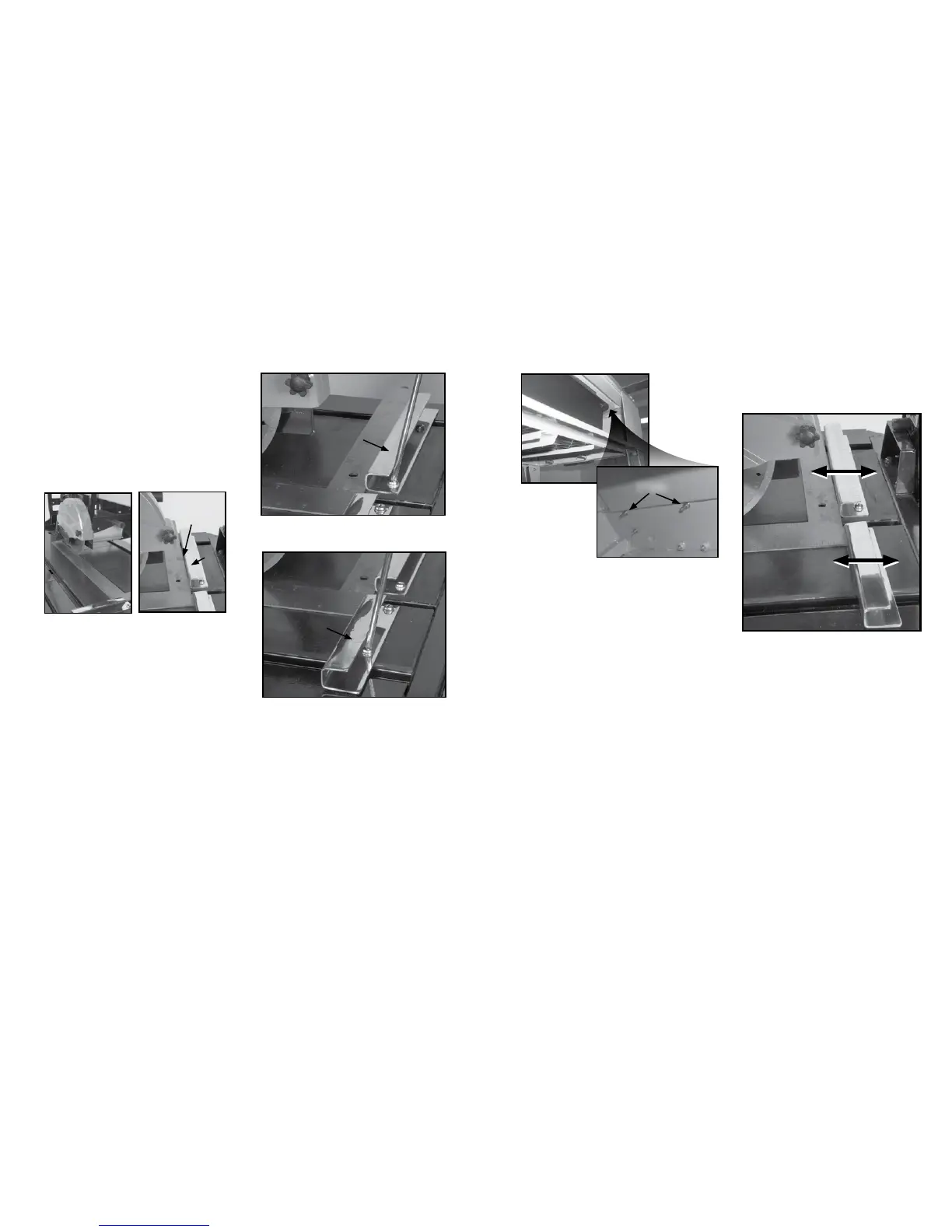

IMAGE A IMAGE B
3. Slide the square into the rip fence, making
sure the square stays firmly against the
blade. Look for a gap between the square and
the rip fence. If there is a gap, adjustments
will be necessary. (See Image B)
4. To adjust the gap, first remove the Angle cutting
guide. This will expose two screws in the
aluminum track. Loosen both screws in the
extruded aluminum bar. (See Image C & D)
IMAGE C
IMAGE D
6. Once the screws are loose, easily slide the
rip fence above, allowing you to close the
gap between the square and the rip fence.
When the square is flush against the rip
fence re-tighten the two ¼” bolts from the
side you are adjusting. If necessary, repeat
the same steps for the other side. (See
Image G)
IMAGE G
7. Once both rip fences are secured in place
slide the extruded aluminum angle bar firmly
against both rip fences and tighten in place
for additional support.
CUSTOMER SERVICE:
1-866-435-8665
5. From underneath the saw, directly below the rip
fence, there are two ¼” bolts located under the
left rip fence and 2 bolts under the right rip
fence. Loosen both bolts for the rip fence that
you are adjusting. (See Images E & F)
IMAGE E
IMAGE F
¼
"
Bolts
Rip
Fence
Gap
Right
Rip Fence
Left
Rip Fence
