Figure 7.
1. Lay out all parts before starting the assembly process.
2. Select a Storage Handle (Part 25) and position it where desired on one mounting rail. Run
two M8*20 Carriage Bolts through the slots in the rail arms and attach using a #8 washer and
nut. These handles are designed to store tools and can be located where most convenient
for the user by sliding it along the rail. See Figure 8. Tighten the bolts and repeat for the
second arm. The handles should face opposite directions (outward) when the two
completed arms are next to each other.
3. Attach the Rapid Clamp Tool Mounting Rail to the lower portions of the Rapid Clamp Tool
Mounts base using two M8*20 Carriage Bolts (Part 14) and two M8 Nuts (Part 15), making
sure that the threaded portion is facing down toward the base (only hand tighten at
this point).
4. To determine the best placement of the power tool on the Rapid Clamp Tool Mounting Rail,
place the Rapid Clamp Tool Mounts onto the body of the Miter Saw Station and estimate the
tool’s center of gravity as it relates to the Miter Saw Station. The Rapid Clamp Tool Mounting
Rail can be adjusted forward and/or backward as needed, as long as its excess material
doesn’t affect workflow during the normal use of the tool.
ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS
ATTACHING YOUR MITER SAW OR OTHER BENCHTOP POWER TOOL

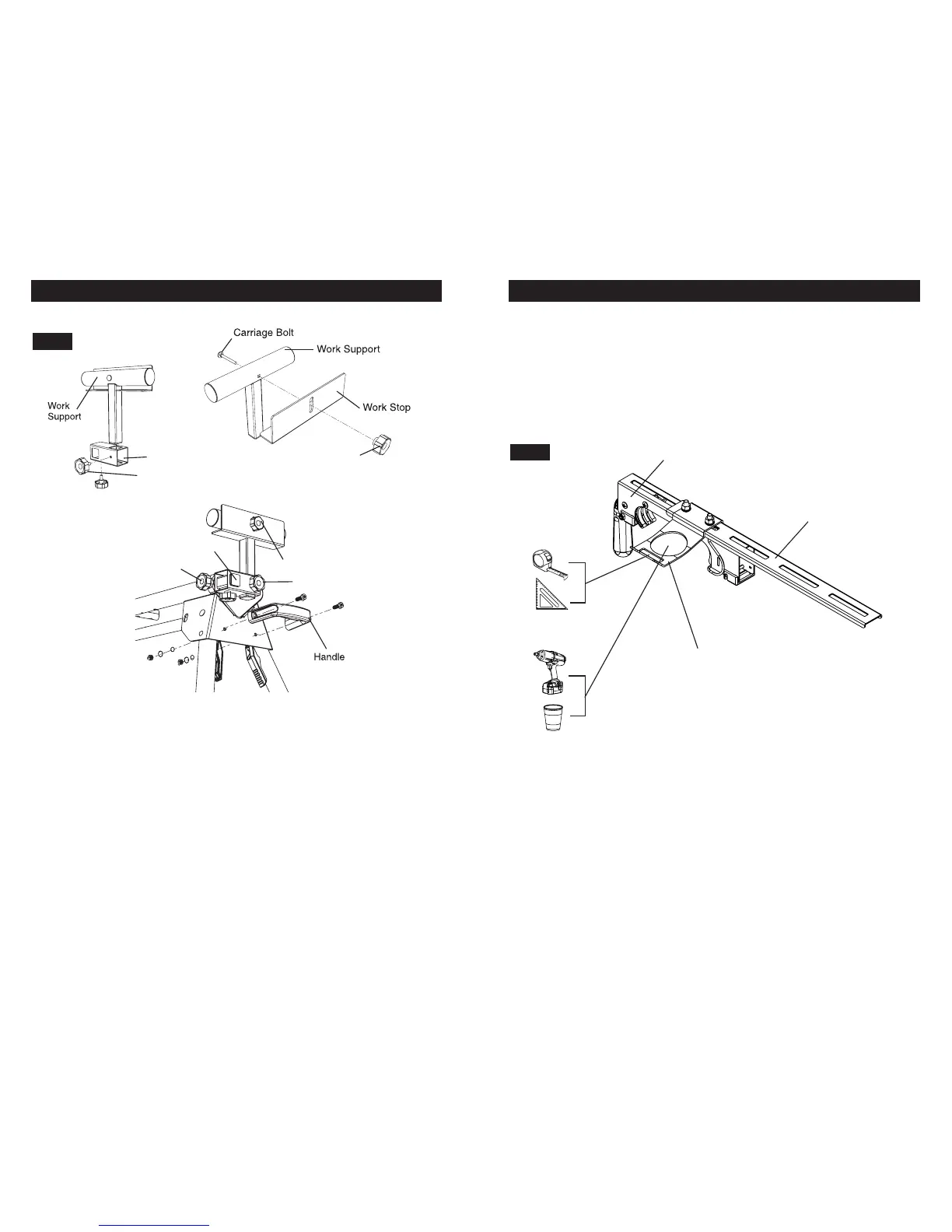

FIG 7
FIG 6
ASSEMBLING RAPID CLAMP TOOL MOUNTS
Knob Nut M6
Material
Support
Receiver
Knob M8*25
Rapid Clamp Tool
Mounting Rail
Rapid Clamp Tool
Handle and Tool
Storage Arm
Rapid Clamp Tool
Mounts Base
Knob Nut M6
Knob M8*25
Knob M8*35
Extension Rail
Figure 8.
Various bench top tools can be used with your Contractor Miter Saw Station by attaching
them to the Rapid Clamp Tool Mounts. Always position the saw to achieve maximum balance
and stability. All four corners of the saw must be bolted to the tool mounts before use. Make
sure bolts do not extend above the table of the miter saw.
Page 7 Page 8
5. Tighten down the M8 Nuts (Part 15) that were placed in the Rapid Clamp Tool Mounting Rail
and Rapid Clamp Tool Mounts base in Step 2.
6. The Rapid Clamp Tool Handle and Tool Storage Arms can be placed anywhere along the
Rapid Clamp Tool Mounting Rail. Hold the Rapid Clamp Tool Handle and Tool Storage
Arms in place using two M8*20 Carriage Bolts (Part 14) and two M8 Nuts (Part 15).
NOTE: If the tool has holes that do not line up with the slots in the tool mounts, then use the
Offset Mounting Brackets (see Figure 10).
