Installing the Adaptor Plate cont.
Tighten all 4 screws to metal
mounting base and router.
13
Installing the Adapter Plate:

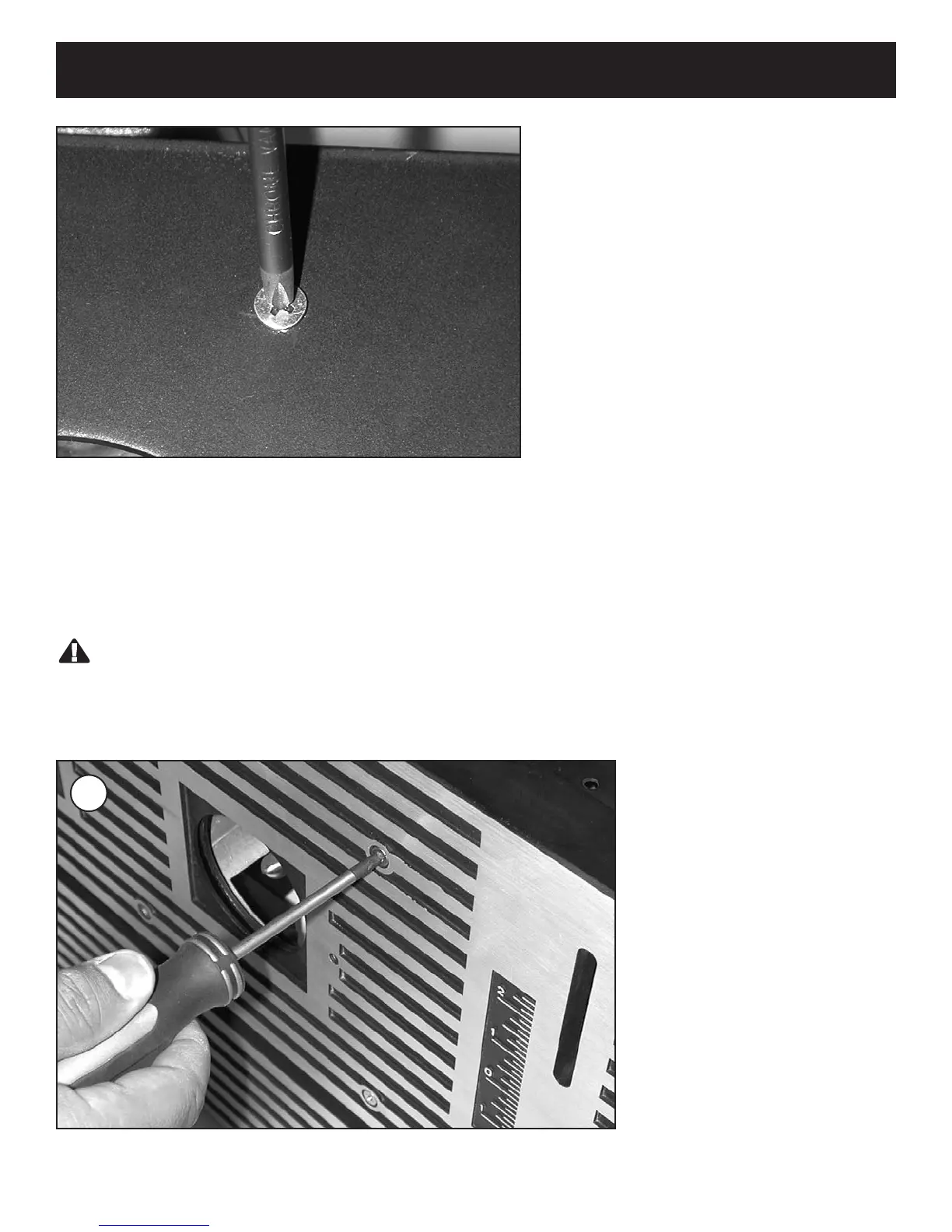

• Figure1 shows the correct installation of a countersunk screw. The countersunk screw must be flush or below
the top of the adapter plate. If the screw protrudes above the adapter plate, the adapter plate may not properly
seat against the bottom of the router table.
WARNING:
An improperly placed screw can lead to unsafe operation and may result in personal injury.
(Figure 1)
Countersunk Screw
To Next Page
