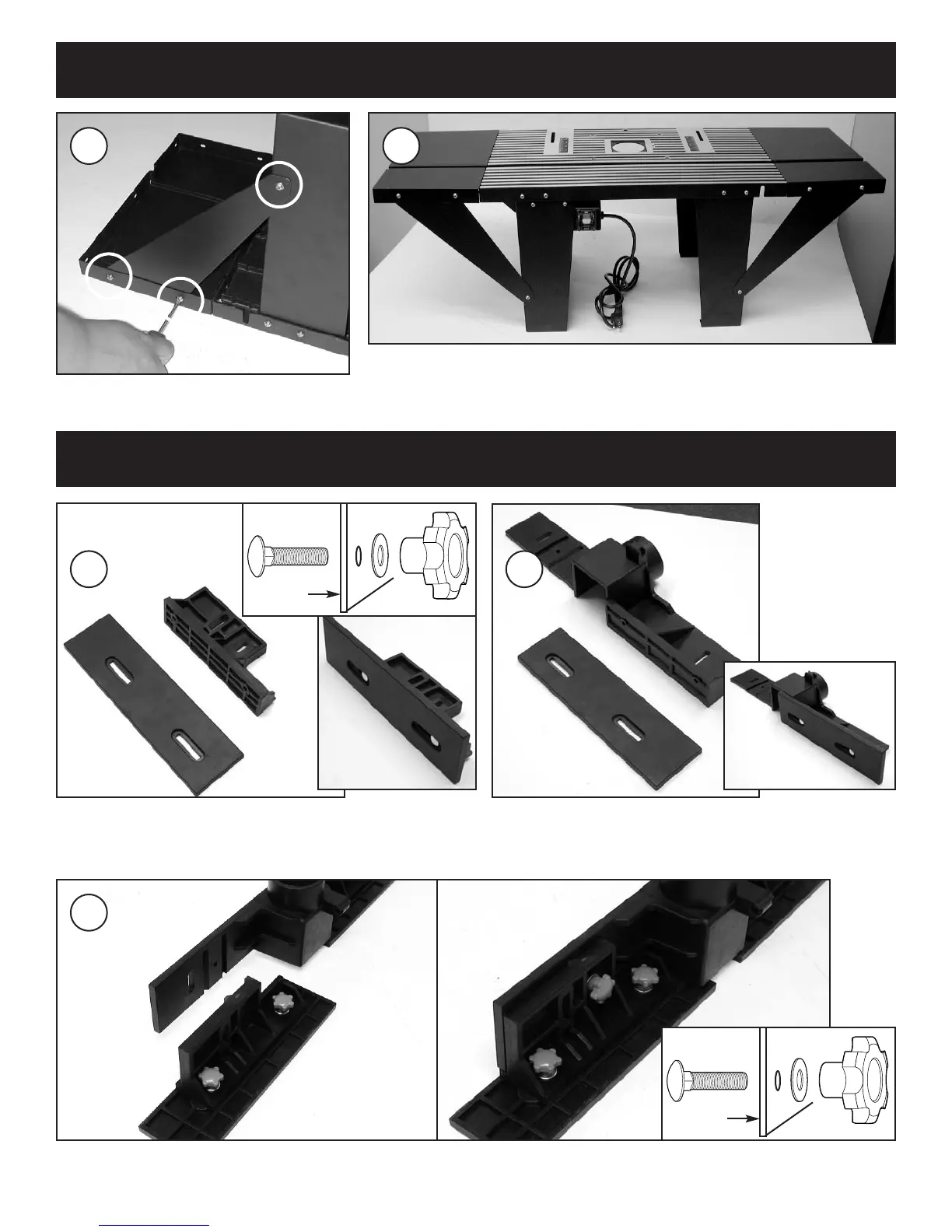

Router Table Operation and Assembly cont.
Secure extension supports in 3 places.
5
Attach all 4 extension supports. Turn router table over. Table should
look like this.
6
Fence Assembly Instructions
Using the smallest carriage bolts, fasten fence face
plate to table bracket fence. Use washers and knobs as
shown.
1
Fasten fence face plate to vacuum adapter bracket
shown above.
2
Fence
Using small carriage bolts, attach table bracket fence to vacuum adapter bracket.
3
Fence
