Tools and Fasteners Required
Tools Required
• 1/4" (6,35mm) Slotted and #1 Phillips screwdriver.
• Small or medium sized adjustable wrench (or a set of nut drivers, open end wrenches or box wrenches)
• Electrical drill
• One or more of the following drill bit sizes: 1/8" (3,18mm), 3/16" (4,76mm), 1/4" (6,35mm), 9/32" (7,14mm),
or 11/32" (8,73mm).
• 3/4" (19,05mm) diameter x 81° steel countersinking tool.
Fasteners Required
One or more of the following sets of fasteners will be required. Consult the Table 1/1a on Page 11-12 to see
which set of fasteners you will need.
•Two 5/16-18 x 5/8" (7,9mm x 15,9mm) long flat countersunk head machine screws.
• Three 5/16-18 x 5/8" (7,9mm x 15,9mm) long flat countersunk head machine screws.
• Four 5/16-18" x 7/8" (7,9mm x 15,9mm) long flat countersunk head machine screws.
• Three #10-24 x 3/4" (19,0mm) long flat countersunk head machine screws.
• Three #10-32 x 1/2" (12,7mm) long flat countersunk head machine screws.
• Three 1/4-20 x 1-1/4" (6,35mm x 31,75mm) long flat countersunk head machine screws and three 1/4-20 hex
machine screw nuts.
• Three #8-32 x 3/4" (19,0mm) long flat countersunk head machine screws and three #8-32 hex machine
screw nuts.
• Three #8-32 x 3/8" (9,5mm) long flat countersunk head machine screws.
•Two M6 x 1 x 15mm (M6 x 25,4mm x 15mm) long metric flat countersunk head machine screws.
• Four M4 x .7 x 10mm (M6 x 17,8mm x 15mm) long metric flat countersunk head machine screws.
• Three M6 x 1 x 15mm (M6 x 25,4mm x 15mm) long metric flat countersunk head machine screws.
• Other--depends upon the router, screws must be of the flat countersunk head type must be on the left side of
the router table after assembly.

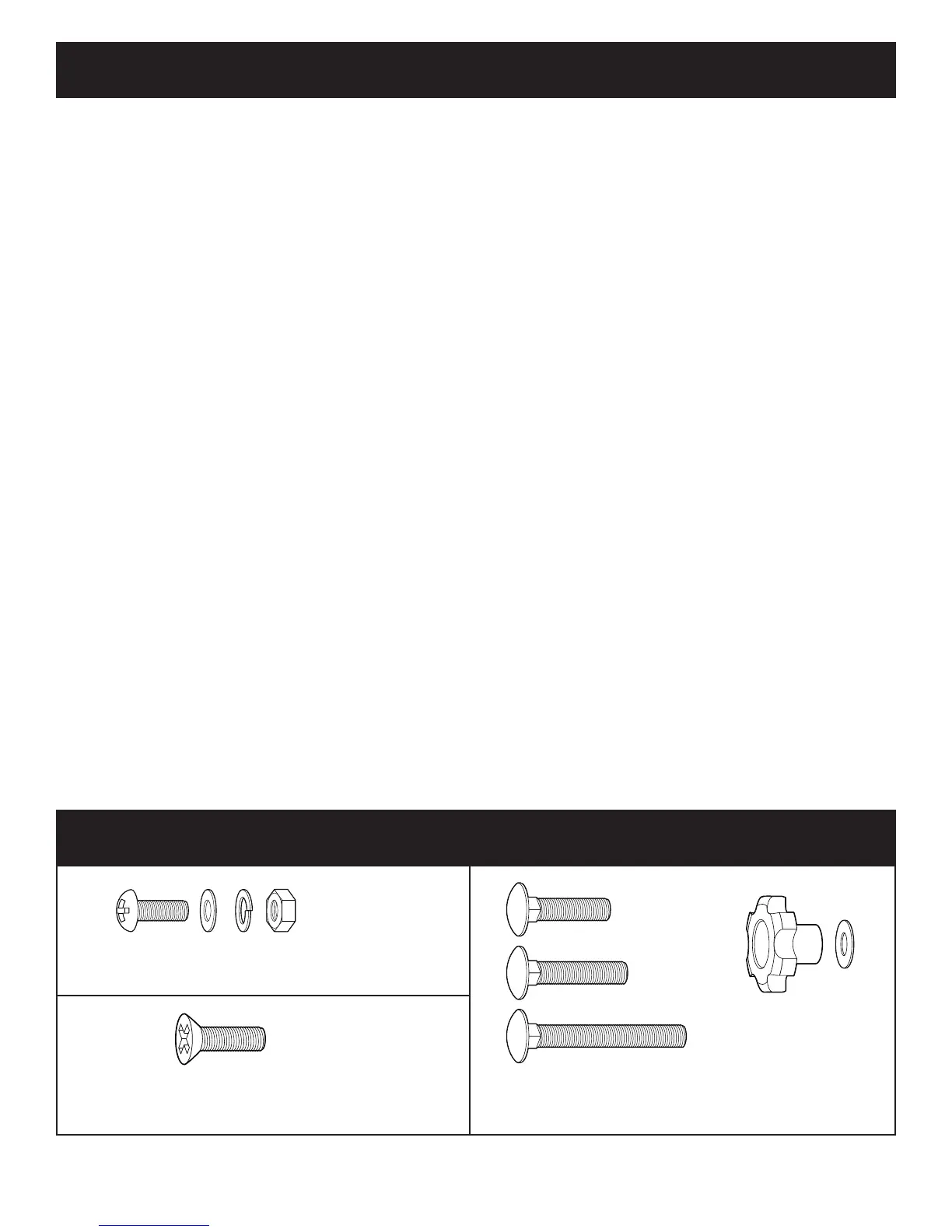

Fasteners Included
X 28
These fasteners will be used for the majority of
fastening of the router table.
X 4
X 5
X1
X1
X7
For metal mounting plate
and router.
For multi-angle fence assembly.
To Next Page
