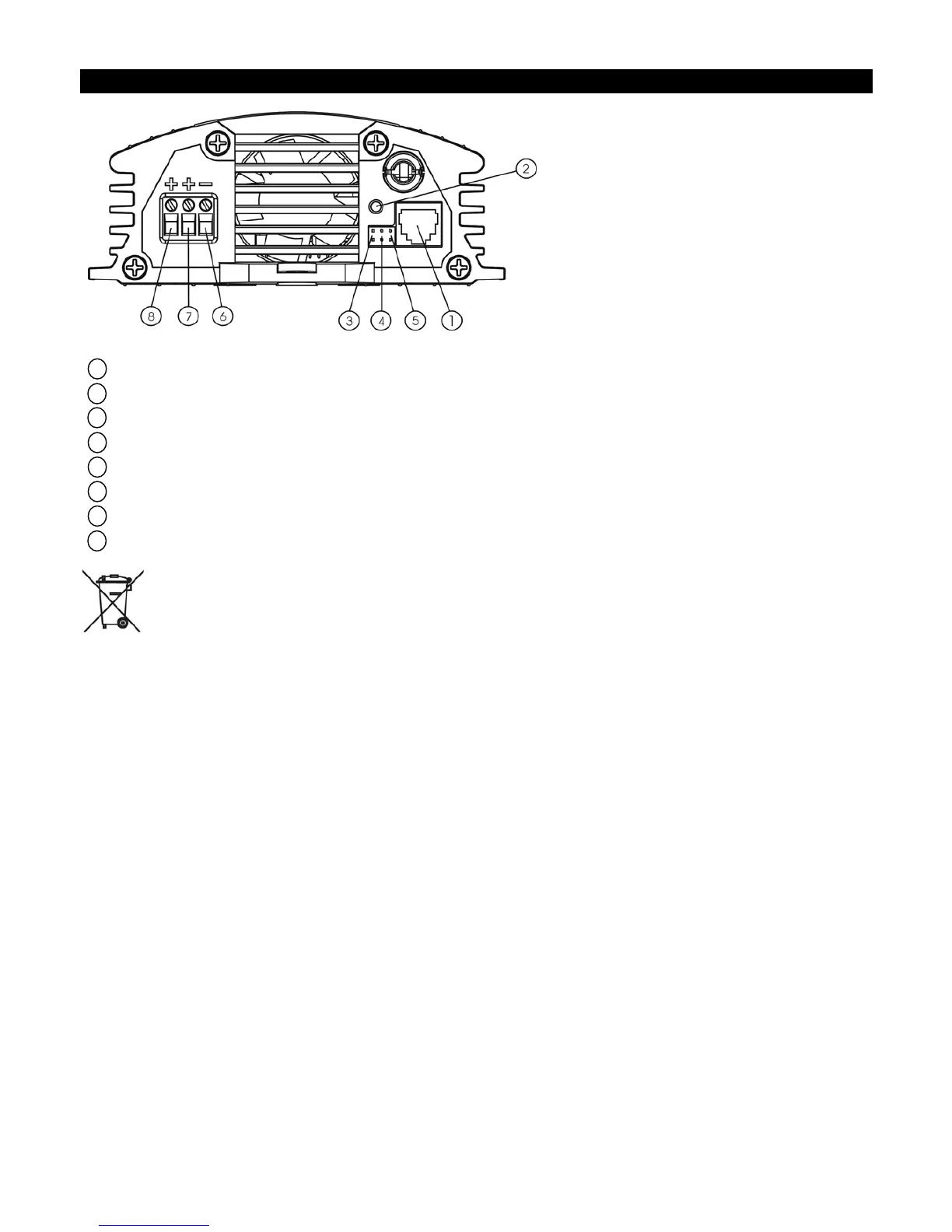

OVERVIEW CHARGEMASTER 12/15-2
Settings and Connections
1 RJ12-jack connection, CSI alarm and PC QRS232
2 LED indicator, flashing = BULK / ABSORPTION, continuous=FLOAT
3 Remove jumper for diode compensation
4 Remove jumper for gel/AGM setting
5 Remove jumper for force float
6 Negative DC output common (–)
7 Positive DC output (+)
8 Second positive DC-output (+)
Correct
disposal of this product
(Waste Electrical & Electronic Equipment)
This product is designed and manufactured with high quality materials
and components, which can be recycled and reused. When this
crossed-out wheeled bin symbol is attached to a product, it means the
product is covered by the European Directive 2012/19/EU.
Please be informed about the local separate collection system for
electrical and electronic products.
Please act according to your local rules and do not dispose of your old
products with your normal household waste. The correct disposal of
your old product will help prevent potential negative consequences to
the environment and human health.
Figure 1 – Abbildung 1
Figuur 1 – Figura 1
